Climate Control Unit

1. Disassemble the climate control component.

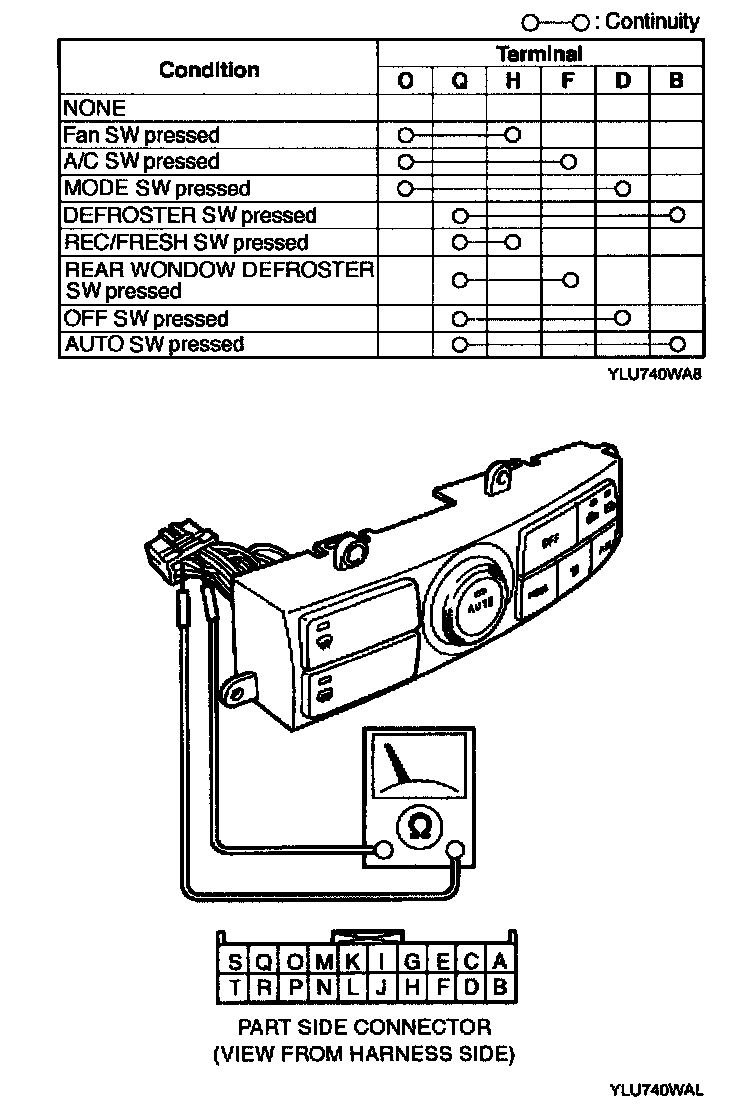

2. Inspect for continuity between the terminals of climate control unit using an ohmmeter.
3. Verify that there is continuity between terminals J and L of the climate control unit connector.




4. Apply battery positive voltage to terminal N and ground to terminals E, G, I, K, M and verify that the following indicators turn on.
- If not as specified, replace the climate control unit.
