Fuel Tank Pressure Sensor: Locations

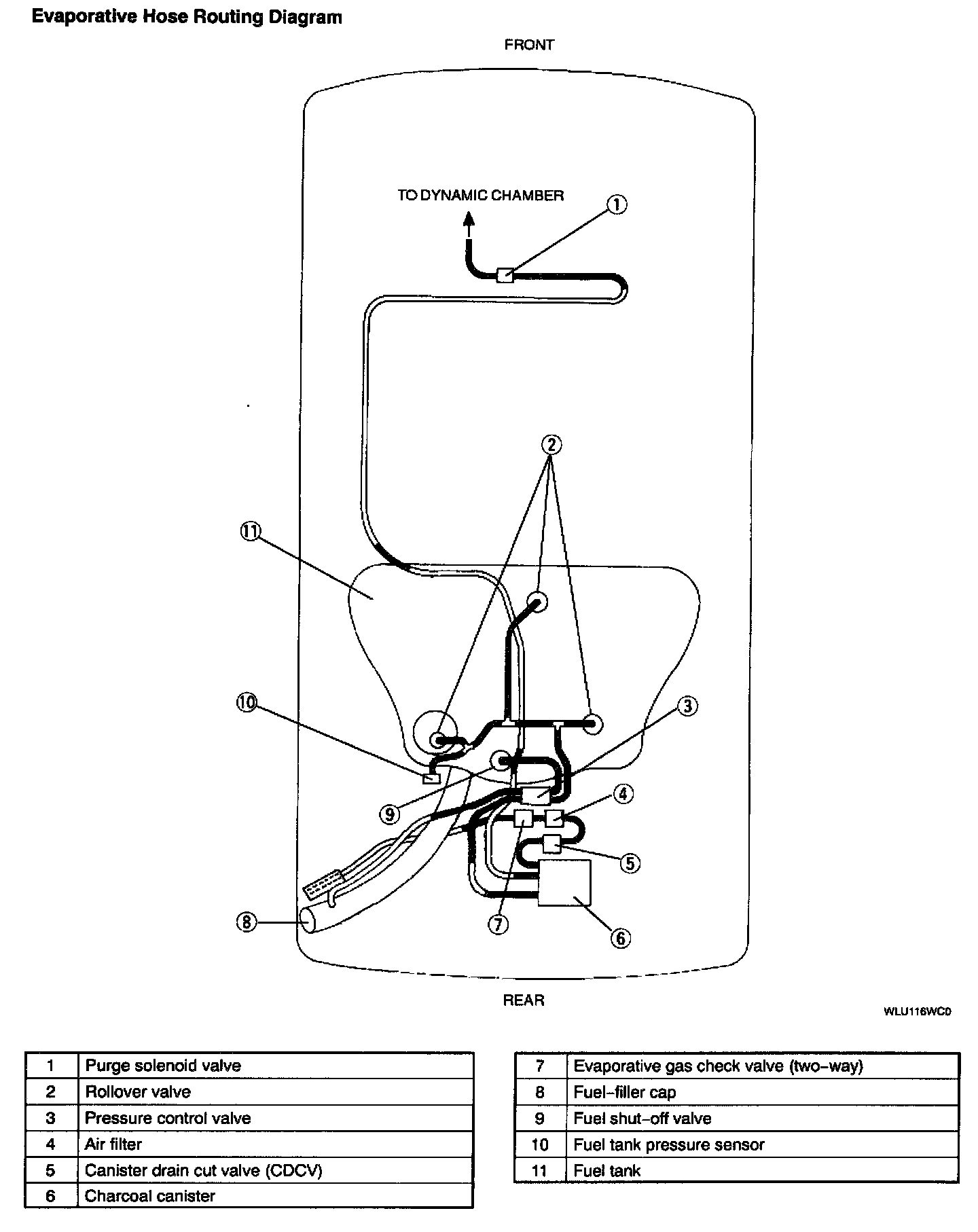

Evaporative Hose Routing Diagram:

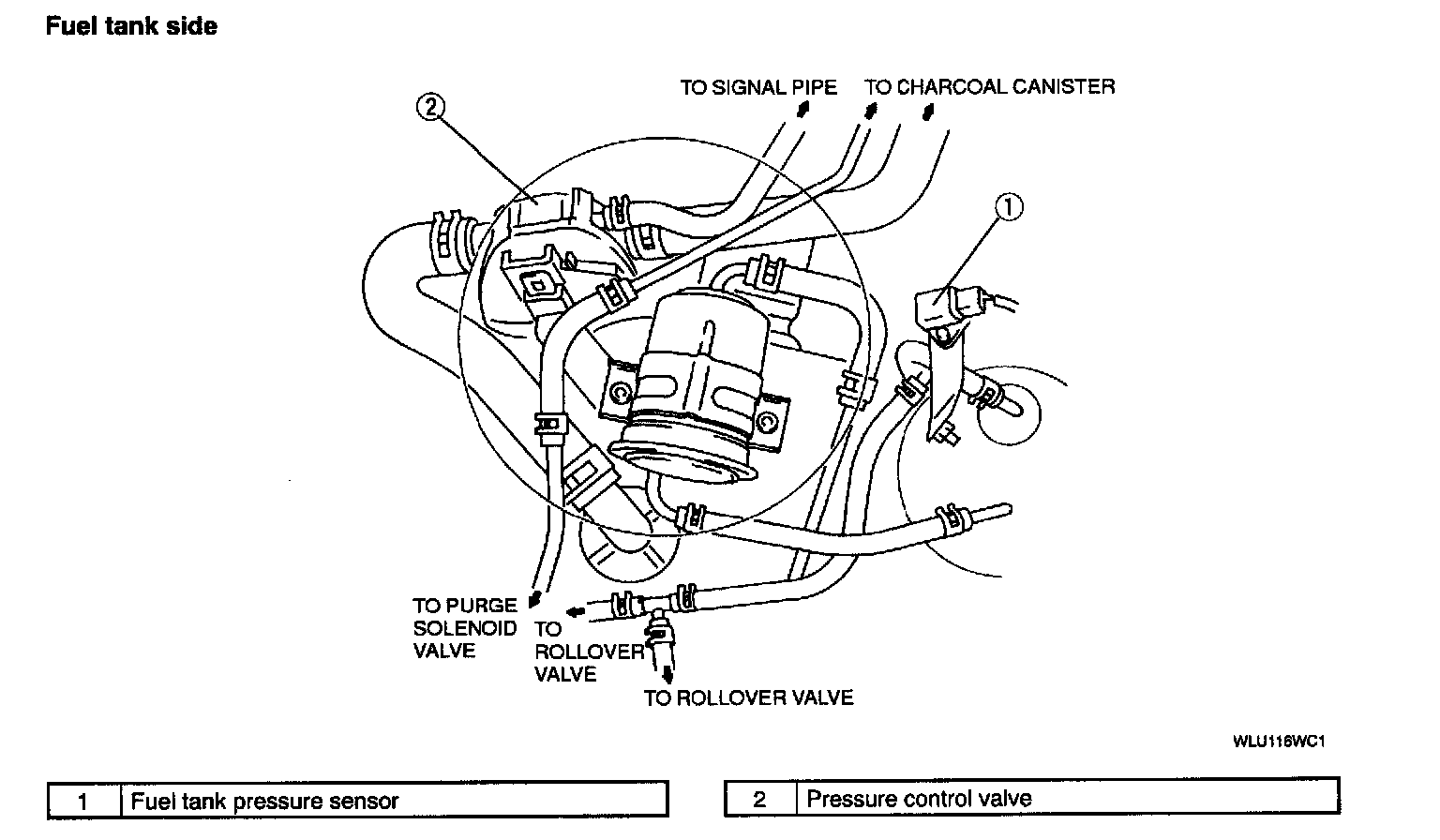

Fuel Tank Side:



Control System Component Location:
