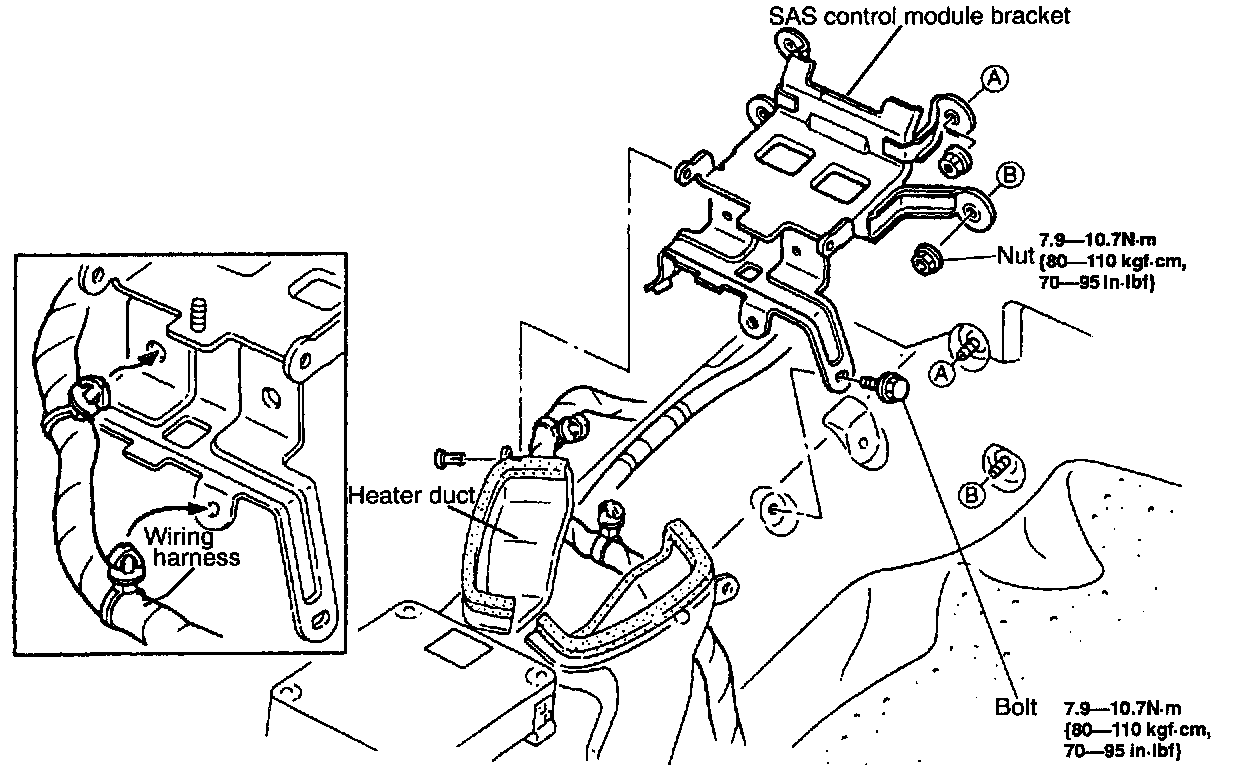

SAS Control Module Bracket

WARNING:
- Handling the SAS control module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the SAS control module. (See AIR BAG SYSTEM SERVICE WARNINGS.)Service Precautions





1. Remove the heater unit. (See HEATER UNIT REMOVAL/INSTALLATION.)
2. Remove the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)Service and Repair
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
