Central Control Module

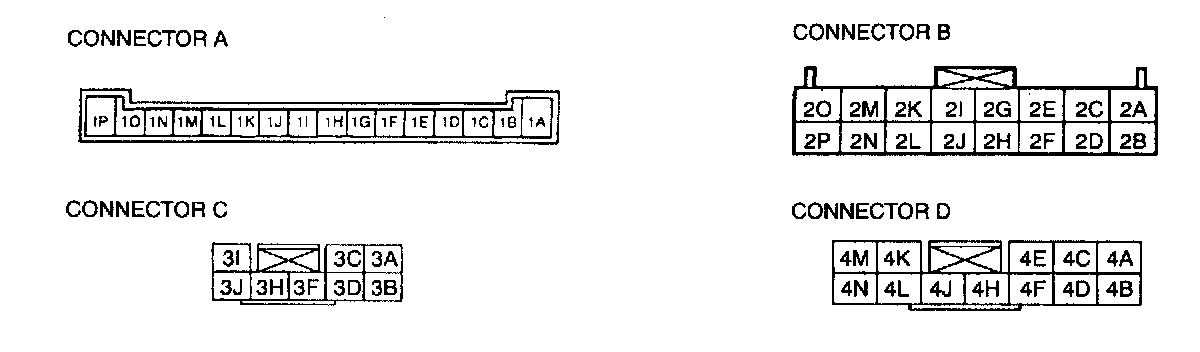

Central Processing Unit (CPU) Terminal Pinouts:

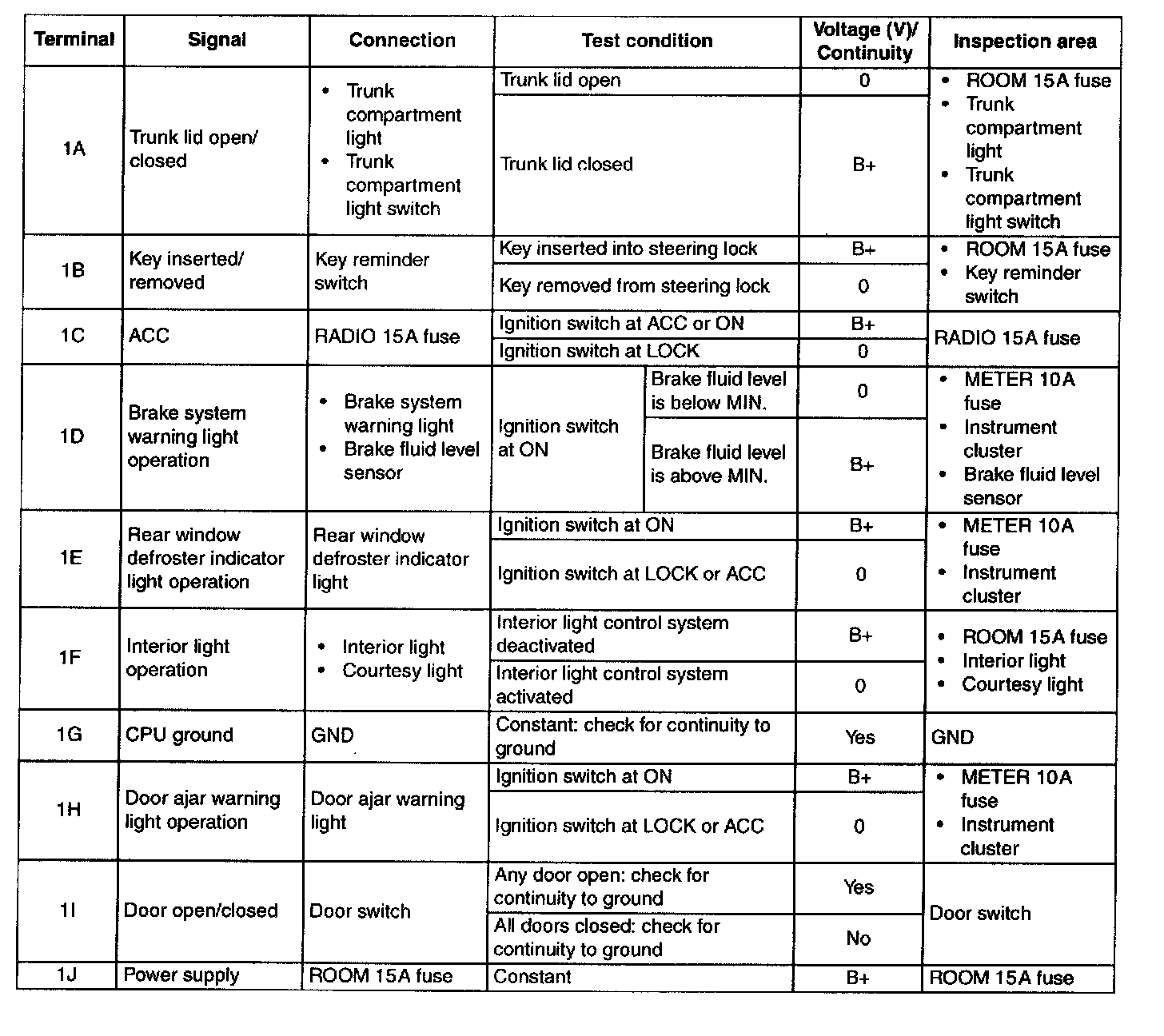

Central Processing Unit (CPU) Terminals 1A - 1J:

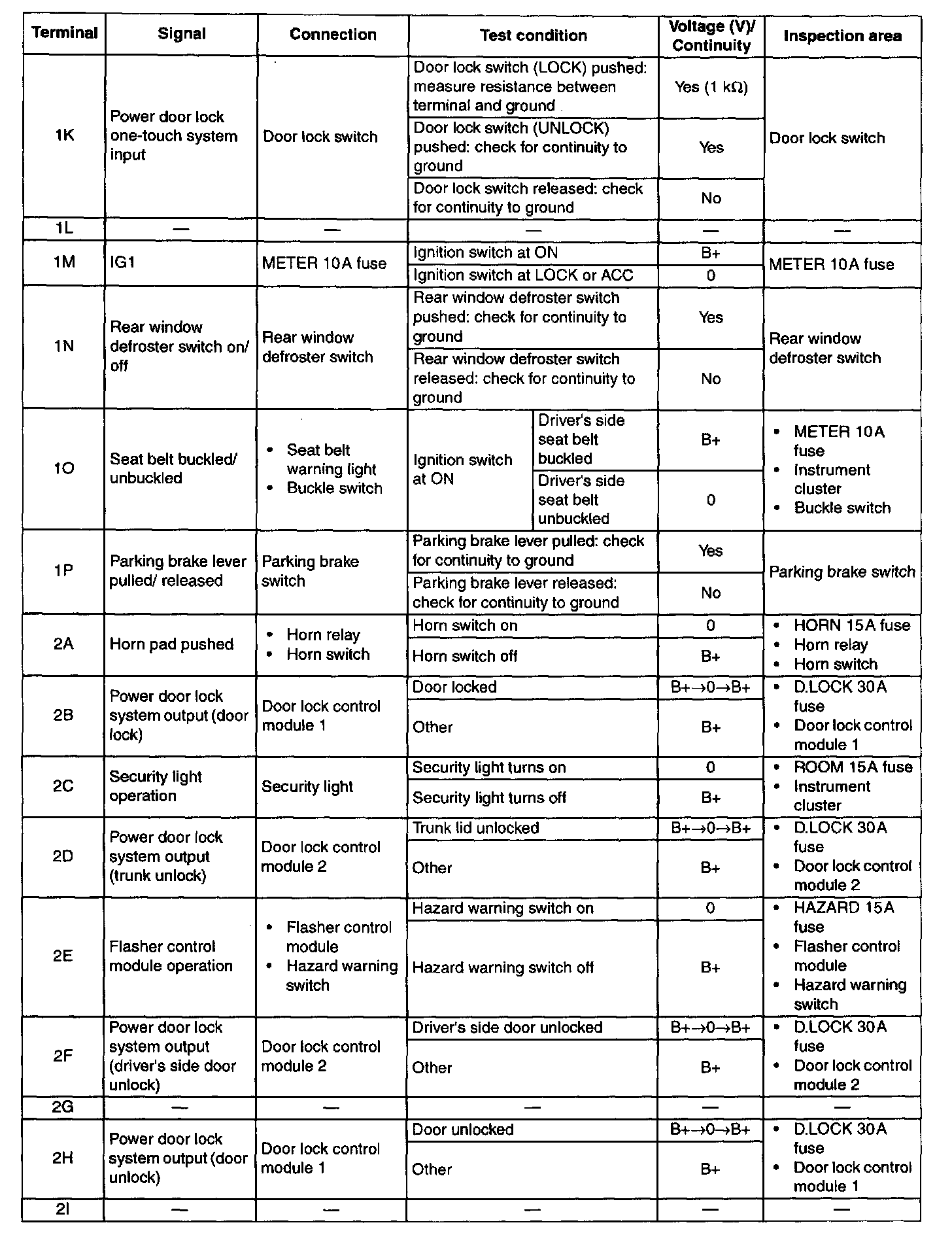

Central Processing Unit (CPU) Terminals 1K - 2I:

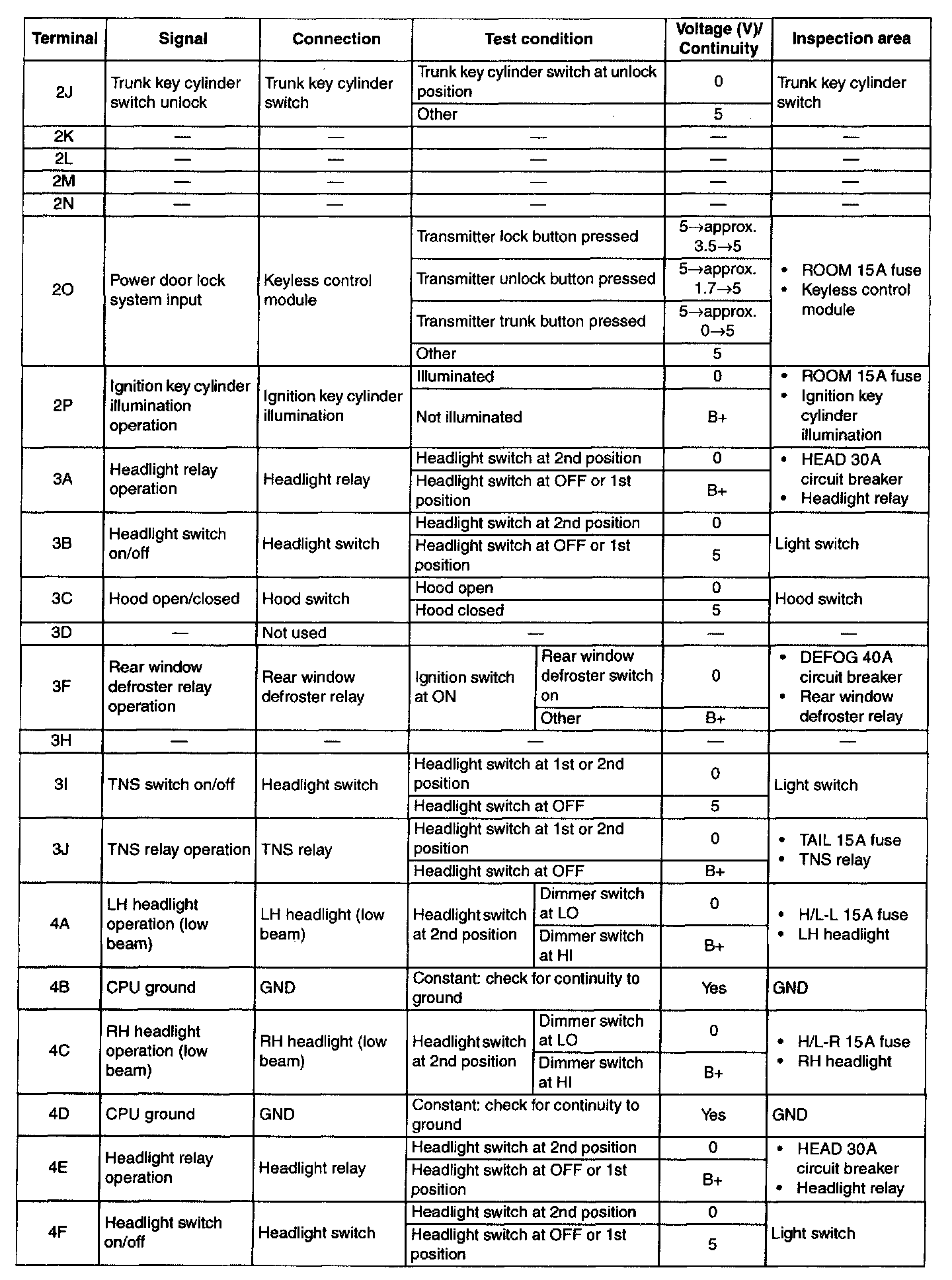

Central Processing Unit (CPU) Terminals 2J - 4F:

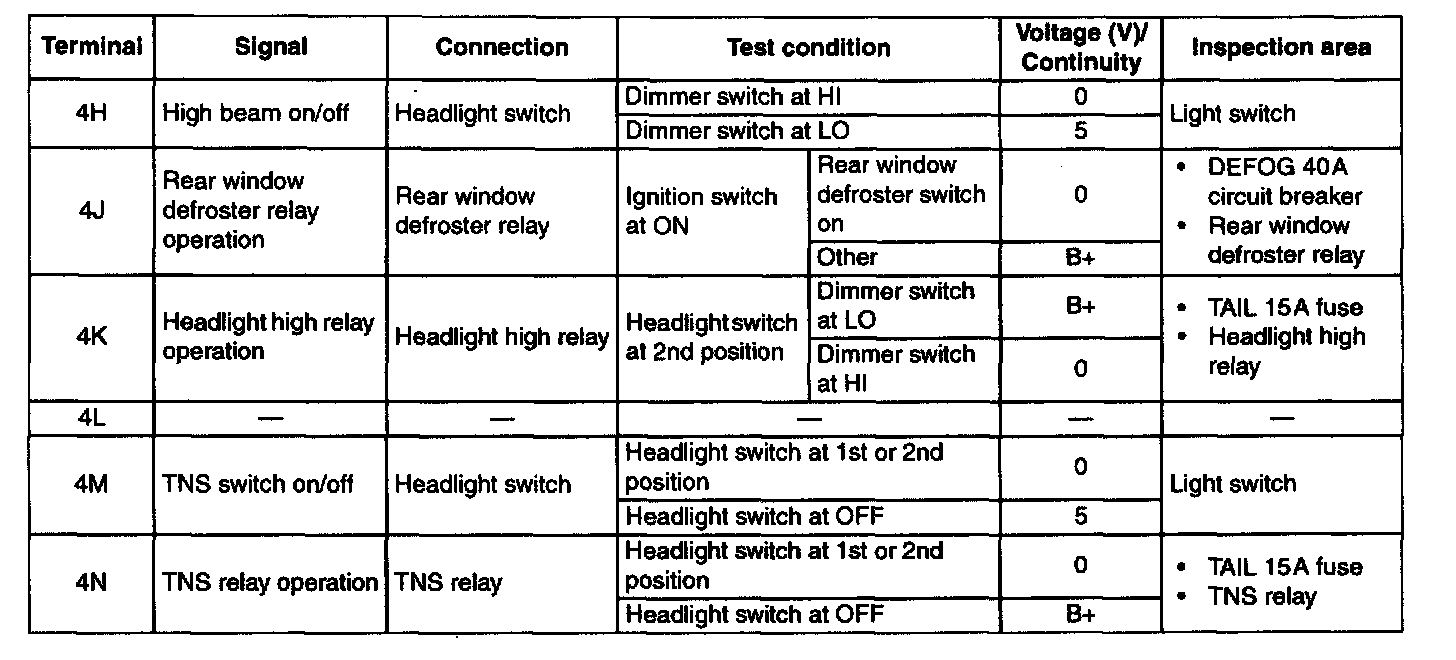

Central Processing Unit (CPU) Terminals 4H - 4N:
