Electronic Brake Control Module

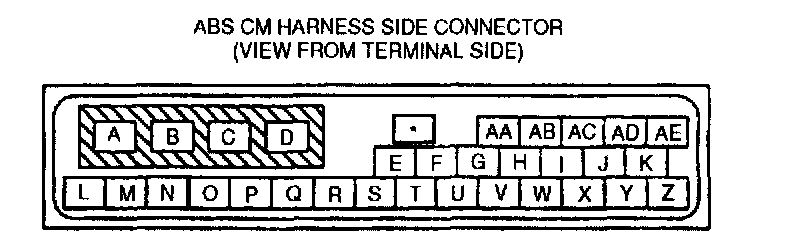

ABS Control Module Terminal Pinouts:

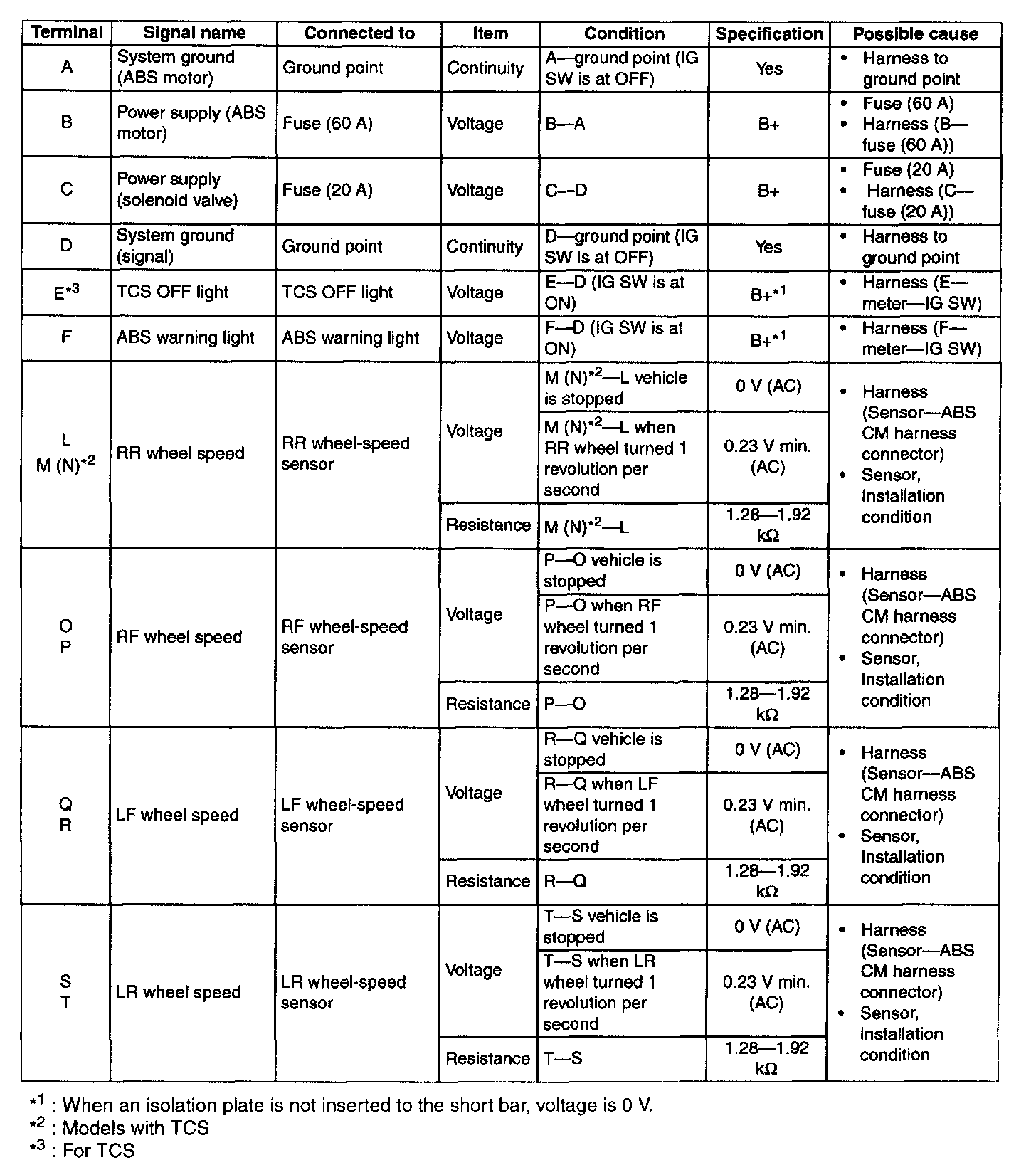

Terminals A - T:

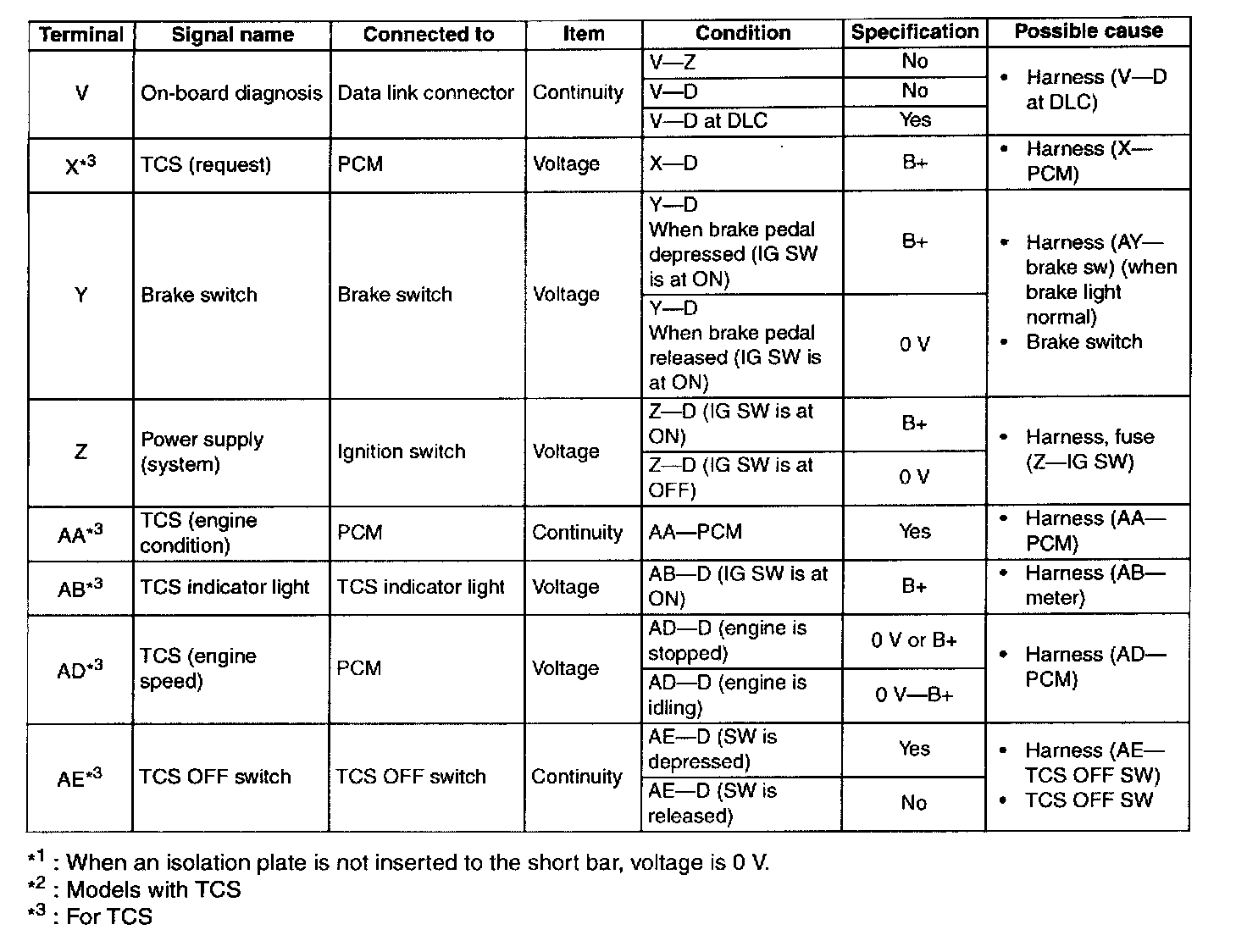

Terminals V - AE(+3):
