B-1 - EC-AT Control System / Engine Control System

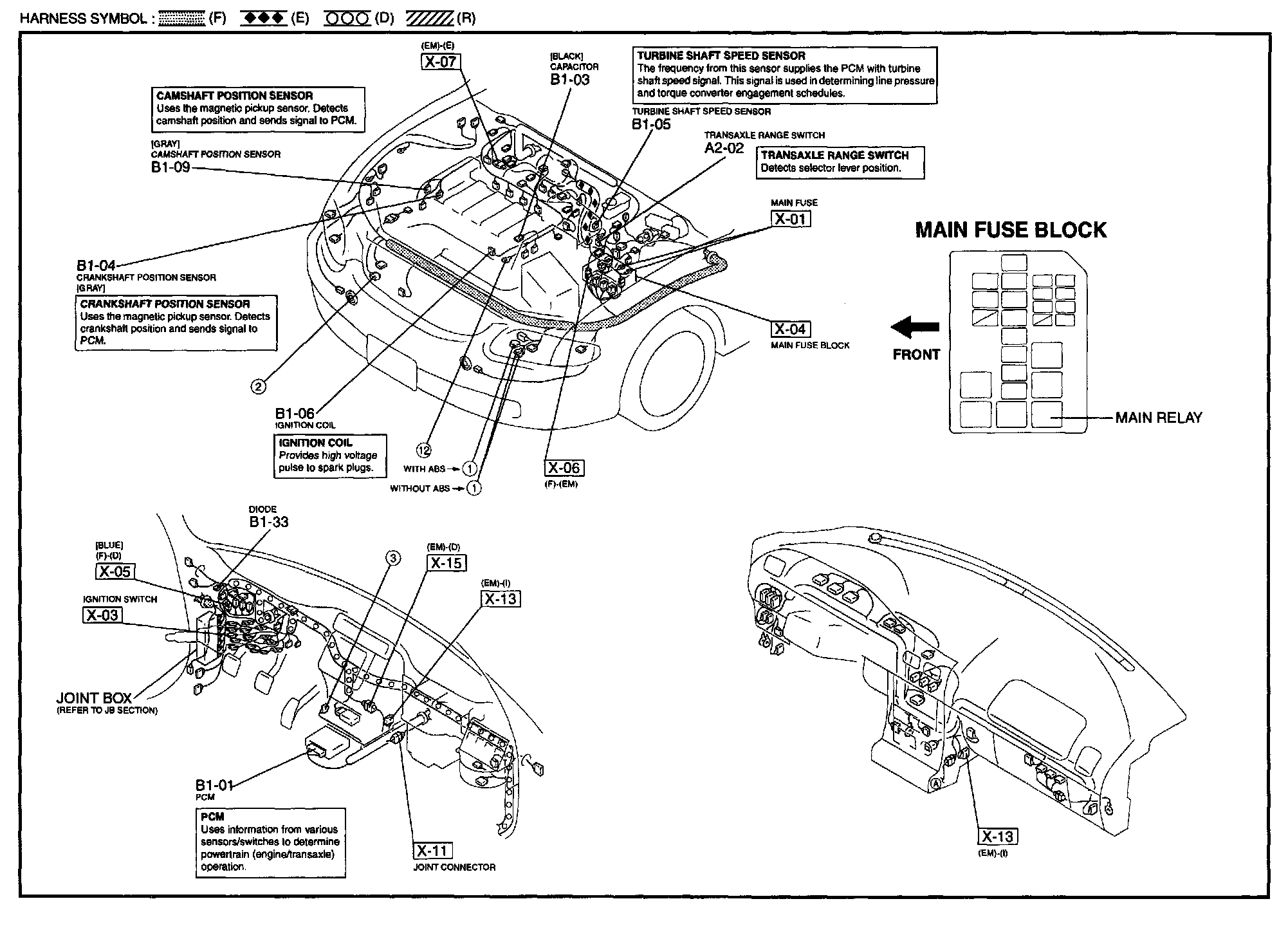

B-1a - EC-AT Control System (FS) / Engine Control System (FS) Harness / Connector Symbols:

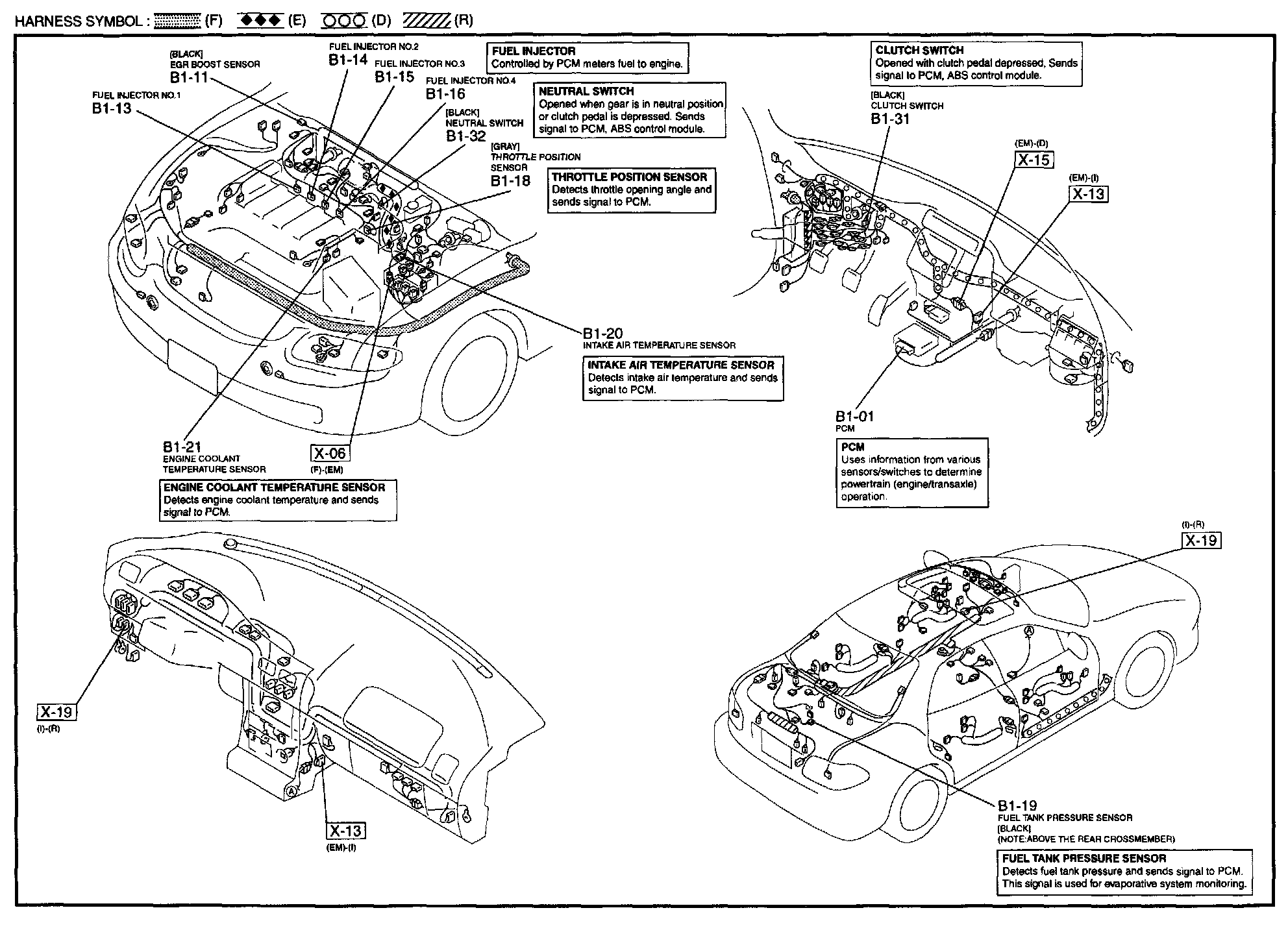

B-1b - EC-AT Control System (FS) / Engine Control System (FS) Harness / Connector Symbols:

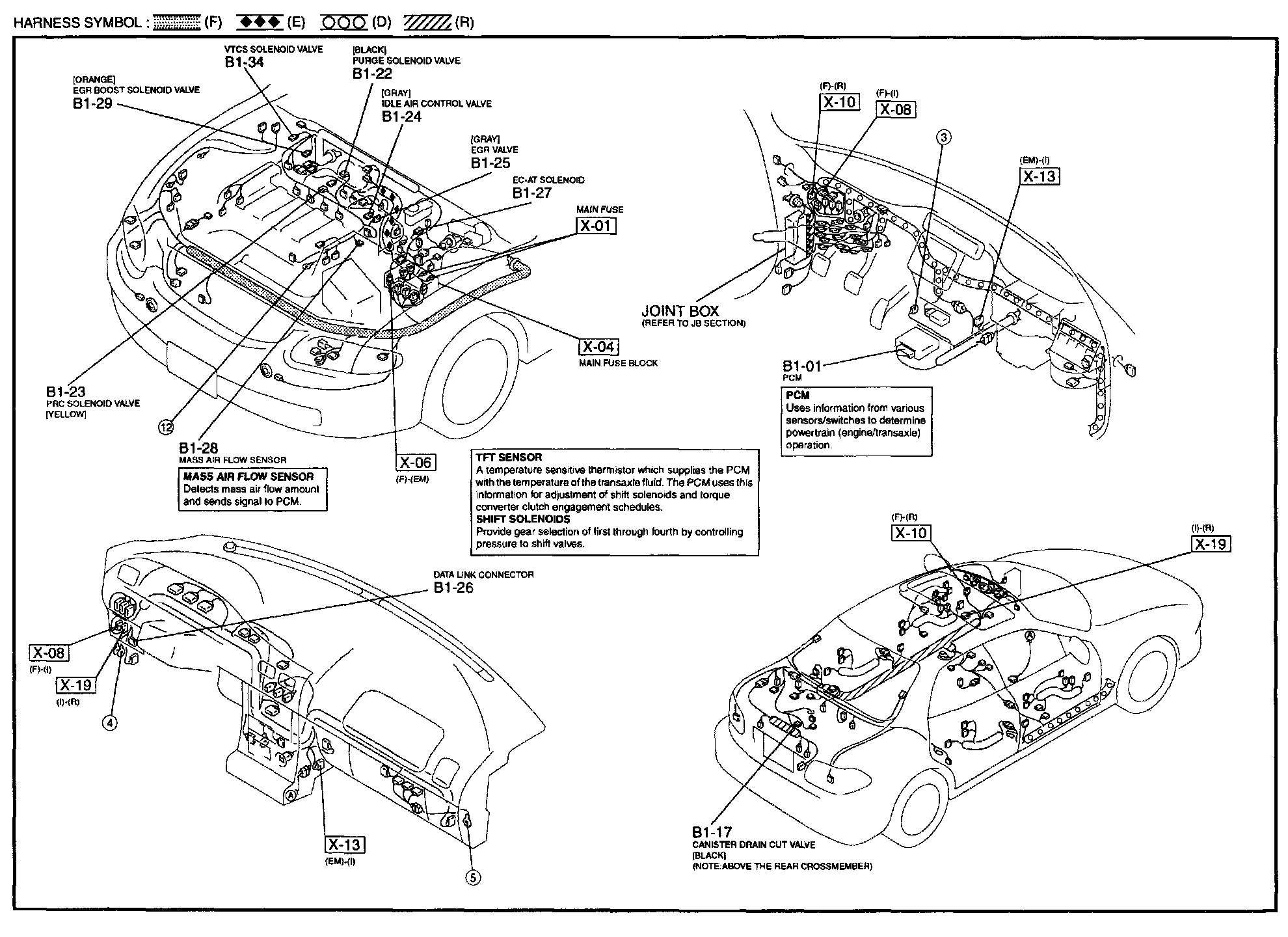

B-1c - EC-AT Control System (FS) / Engine Control System Harness (FS) / Connector Symbols:

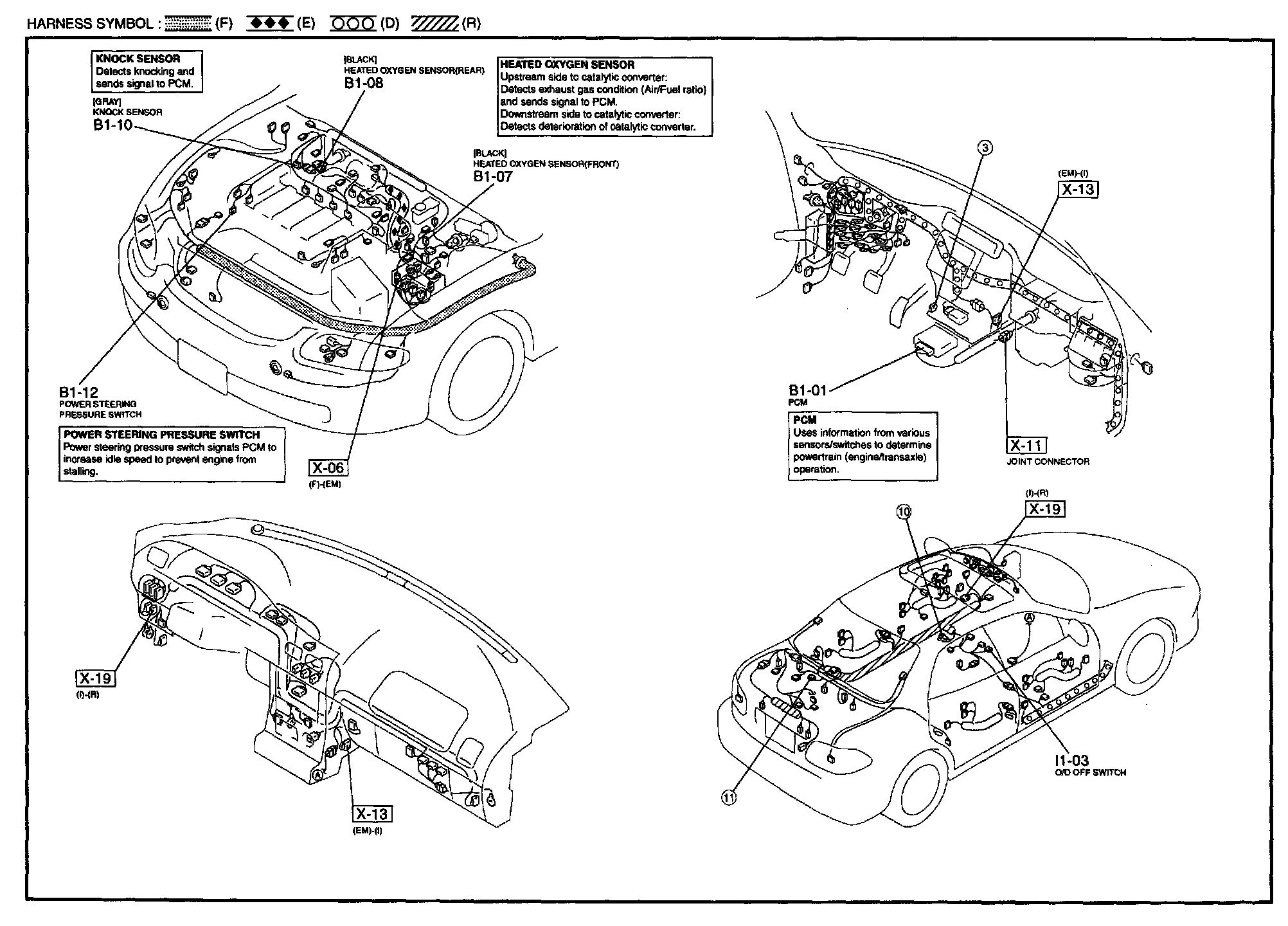

B-1d - EC-AT Control System / Engine Control System Harness / Connector Symbols:
