Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Connect battery positive voltage to magnetic clutch terminal B and ground to terminal A.

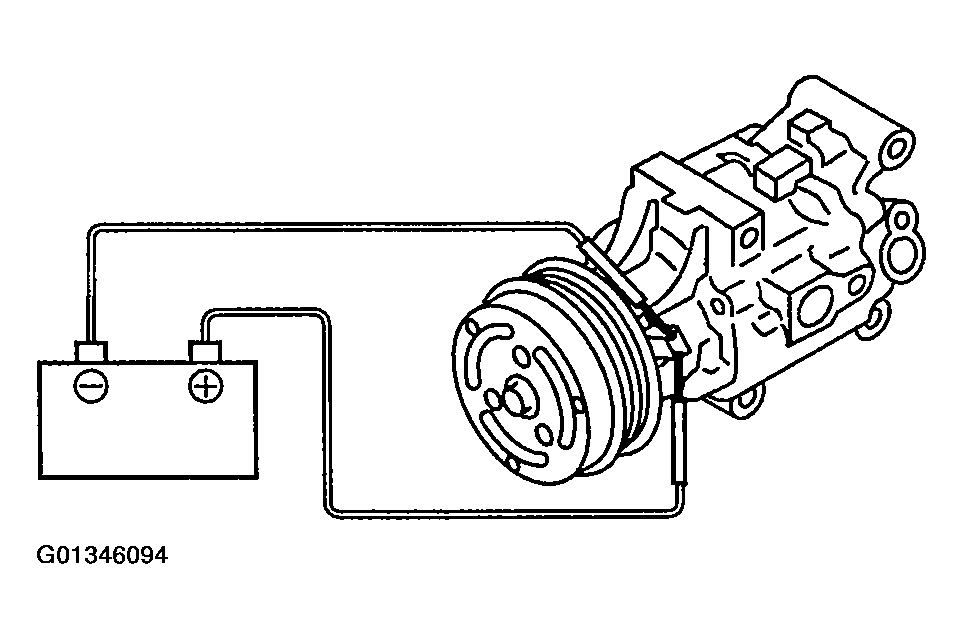

Fig 1: Inspecting Magnetic Clutch
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch turns on.
- If the magnetic clutch does not turn on, replace the A/C compressor.
Fig 2: Connecting Battery Positive Voltage To Magnetic Clutch Terminal B & Ground To Terminal A
Courtesy of MAZDA MOTORS CORP.
