Blower Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in Fig 1.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

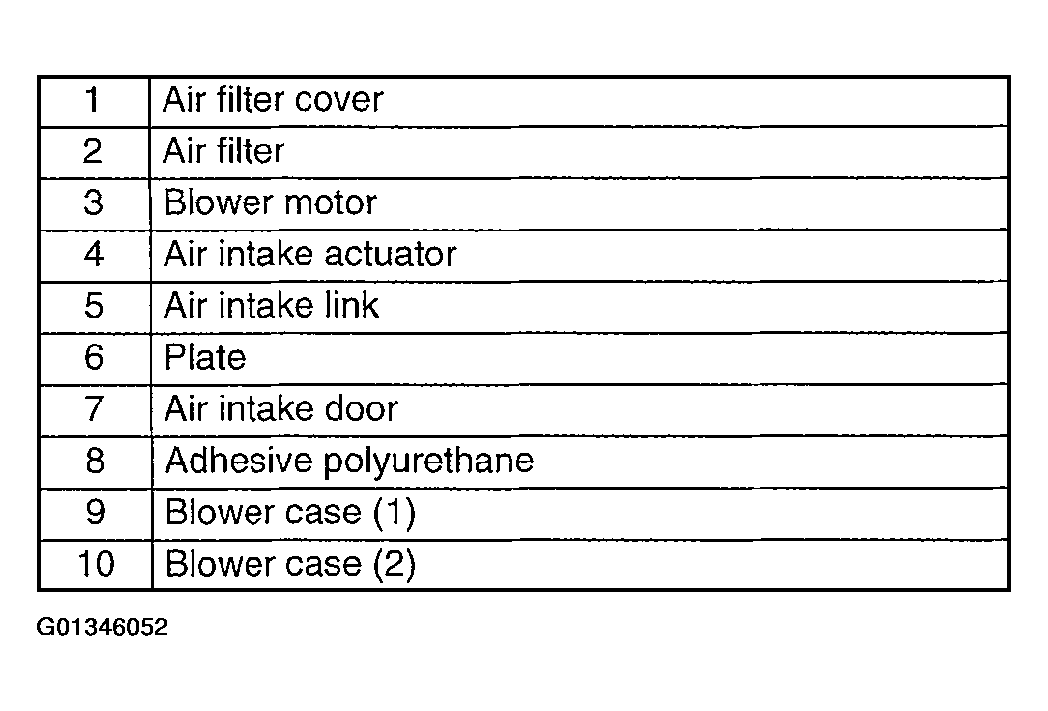

Fig 1: Disassembly/Assembly Order For Blower Unit
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

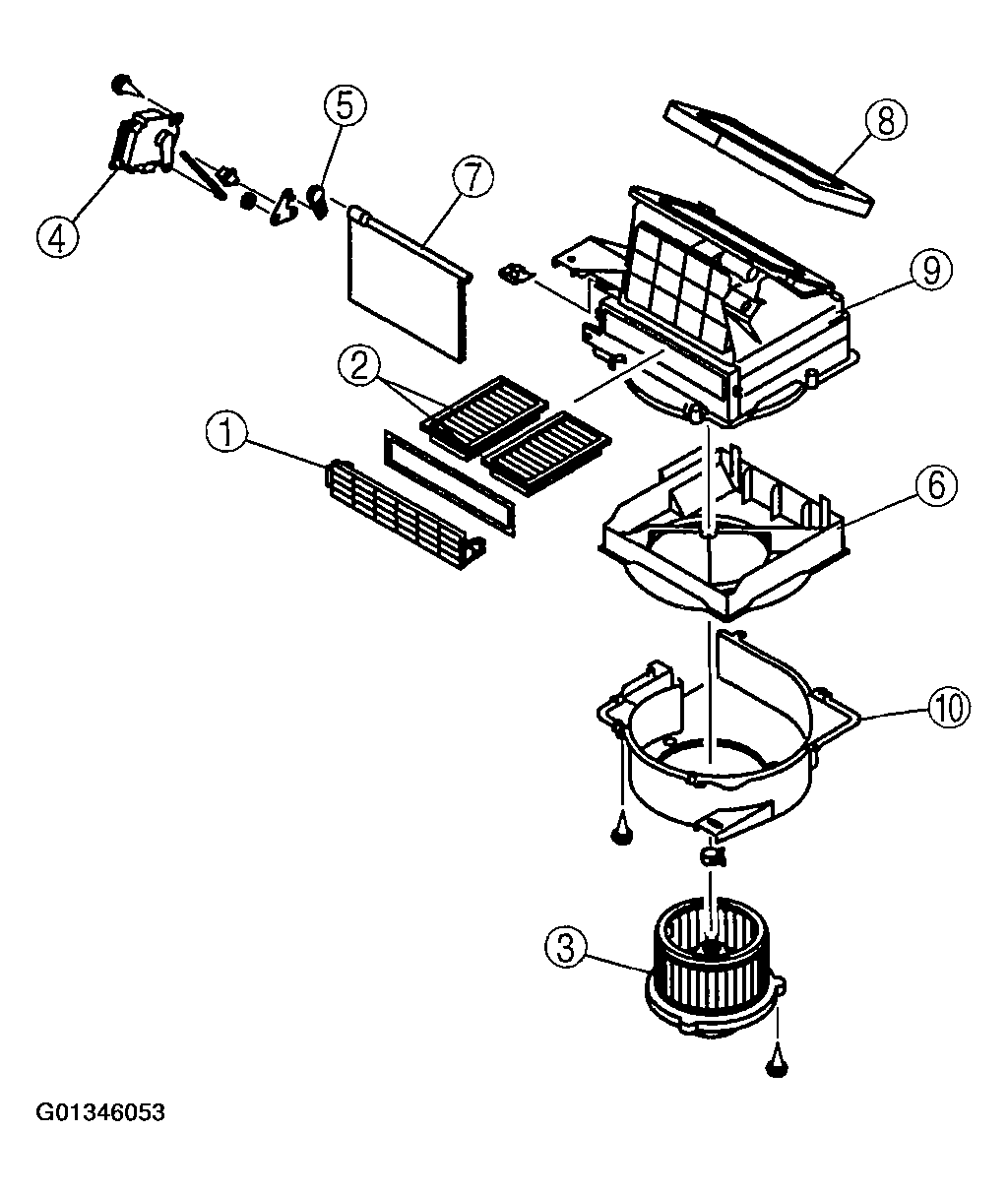

Fig 2: Exploded View Of Blower Unit
Courtesy of MAZDA MOTORS CORP.
