Refrigerant Line Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery.
- Remove the fresh-air duct and air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
- Remove the front side marker light. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the drive belt. (See DRIVE BELT REPLACEMENT .)

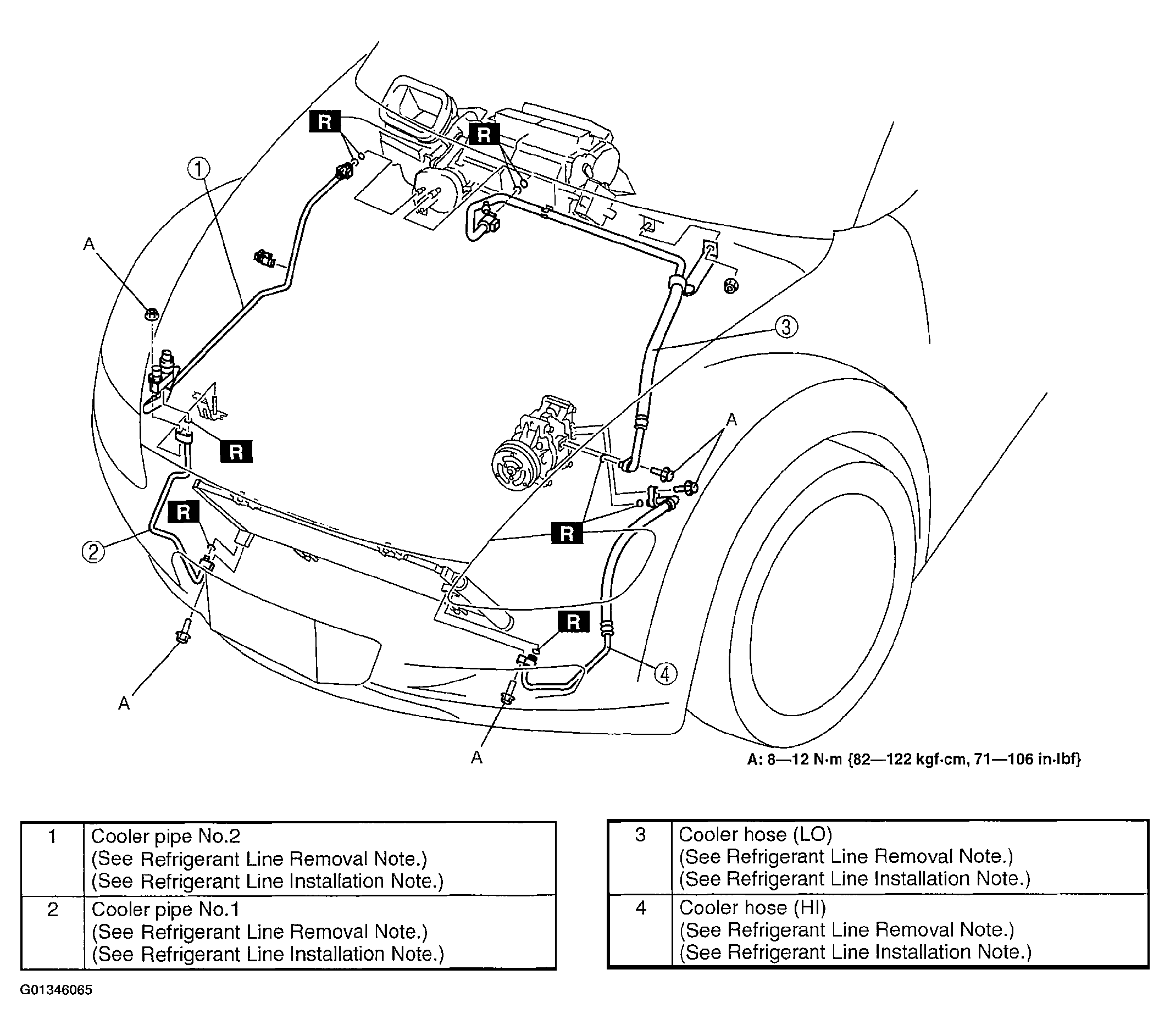

- Do not allow remaining compressor oil in the piping and connecting parts to spill, and remove in the order indicated in Fig 1.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
