Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in Fig 1.

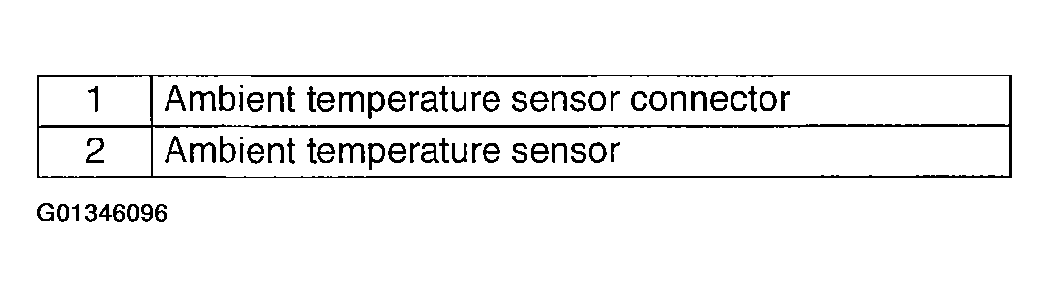

    Fig 1: Removal/Installation Order For Ambient Temperature Sensor
    G01346096Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

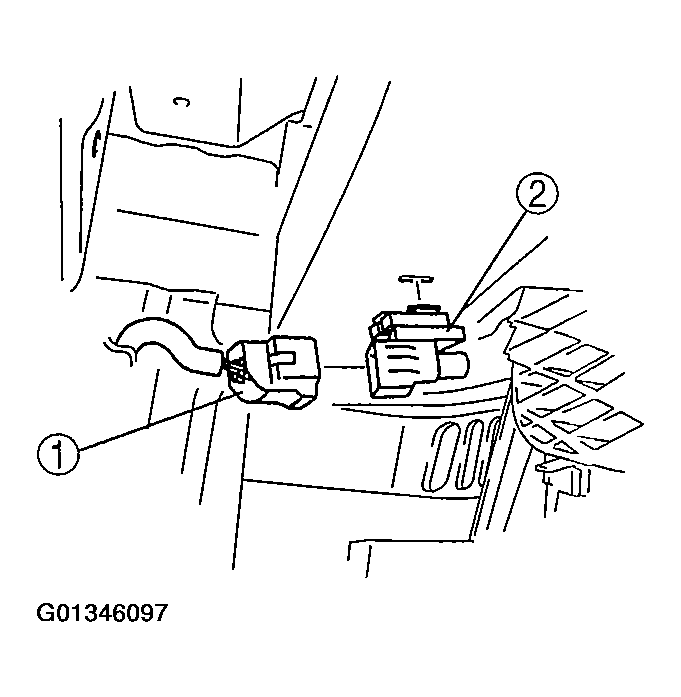

    Fig 2: Removing/Installing Ambient Temperature Sensor
    G01346097Courtesy of MAZDA MOTORS CORP.
