Output Signal Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. After performing the on-board diagnostic test procedure, inspect according to the table in Fig 1.

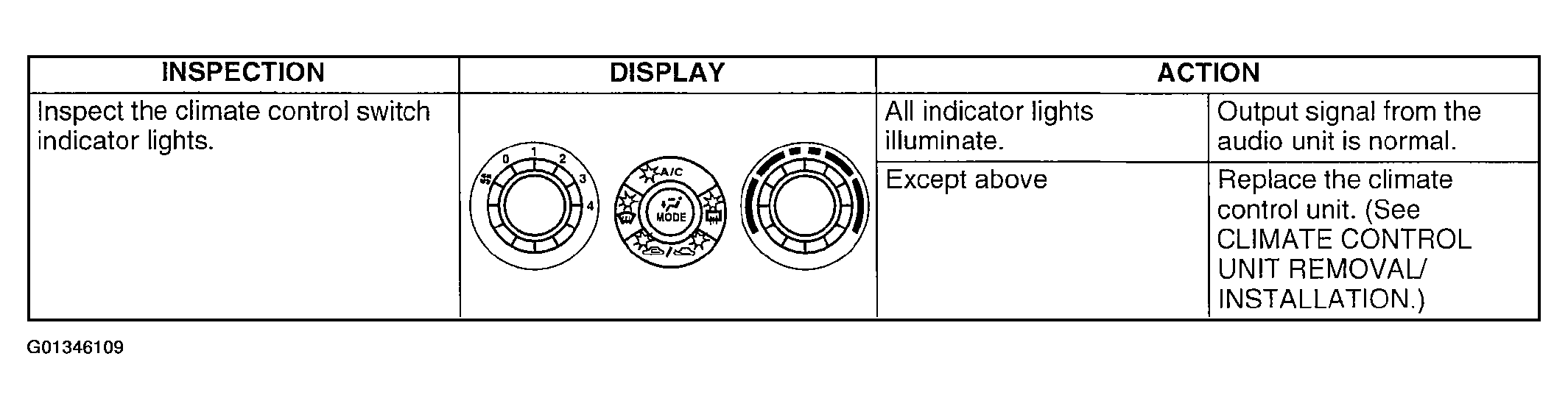

    Fig 1: Climate Control Switch Indicator Lights Inspection
    G01346109Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the jumper wire or the similar device connected to the A/C amplifier connector (24-pin) to exit the on-board diagnostic test function.
