Temperature Control Dial Inspection
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- After performing the on-board diagnostic test procedure, turn on the audio.
- Press the audio POWER and SCAN (upper) buttons simultaneously.
- "A/C TEMP-" is displayed on the information display.

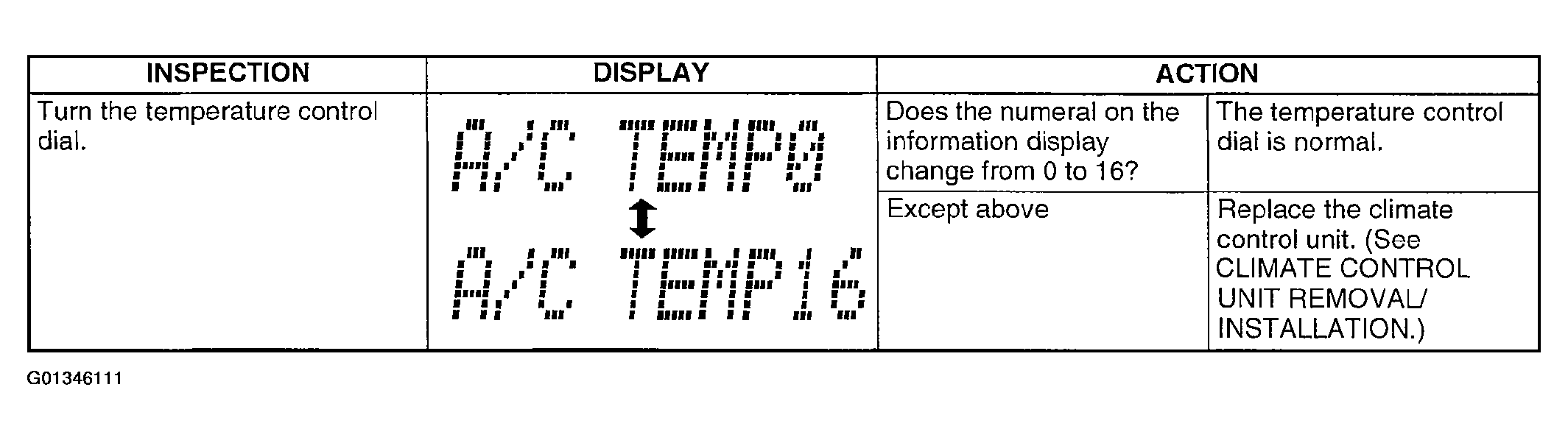

- Inspect according to the following table in Fig 1.
- Disconnect the jumper wire or the similar device connected to the A/C amplifier connector (24-pin) to exit the on-board diagnostic test function.
