Climate Control Unit Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
- Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
- Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)

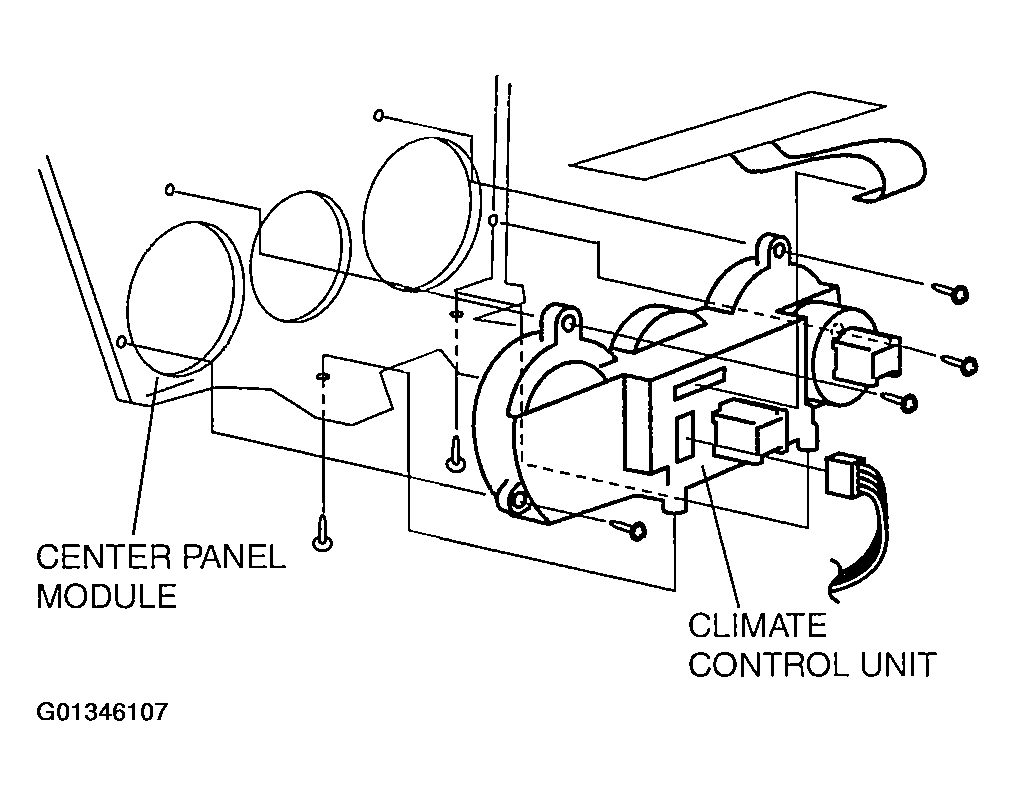

- Remove the climate control unit from the center panel module.
- Install in the reverse order of removal.
