Rear Combination Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk side trim.
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

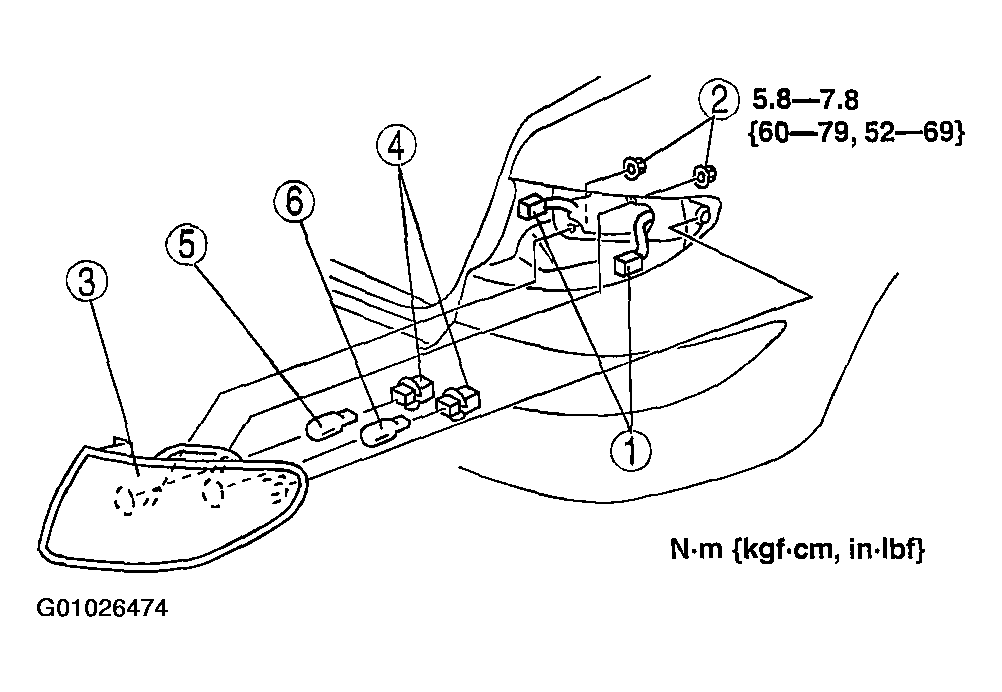

Fig 1: Removal Order Of Rear Combination Light

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Rear Combination Light

Courtesy of MAZDA MOTORS CORP.
