Rear Map Light Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the rear map light terminals using an ohmmeter.
- If not as specified, replace the rear map light.

Fig 1: Rear Map Light Continuity Table

Courtesy of MAZDA MOTORS CORP.

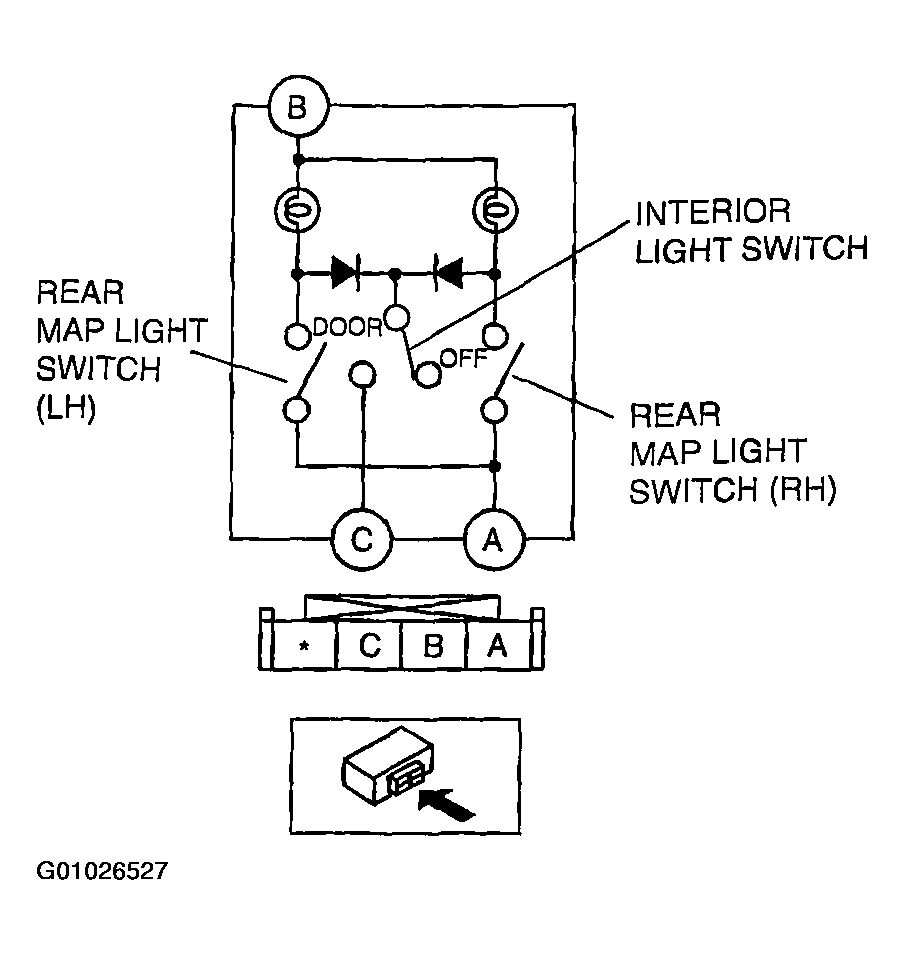

Fig 2: Identifying Rear Map Light Terminals Connection

Courtesy of MAZDA MOTORS CORP.
