Airflow Mode Main Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the airflow mode actuator.
Remove in the order indicated in Fig 1 .

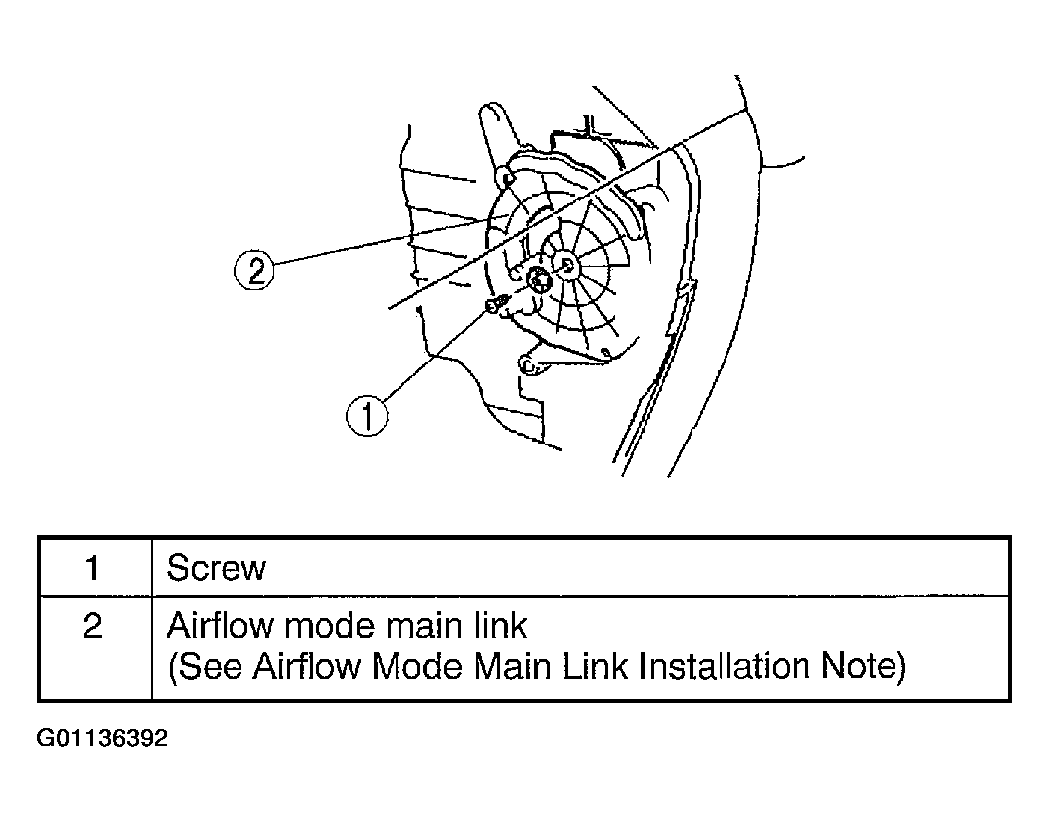

Fig 1: Removing/Installing Airflow Mode Main Link
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
