Cooling Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

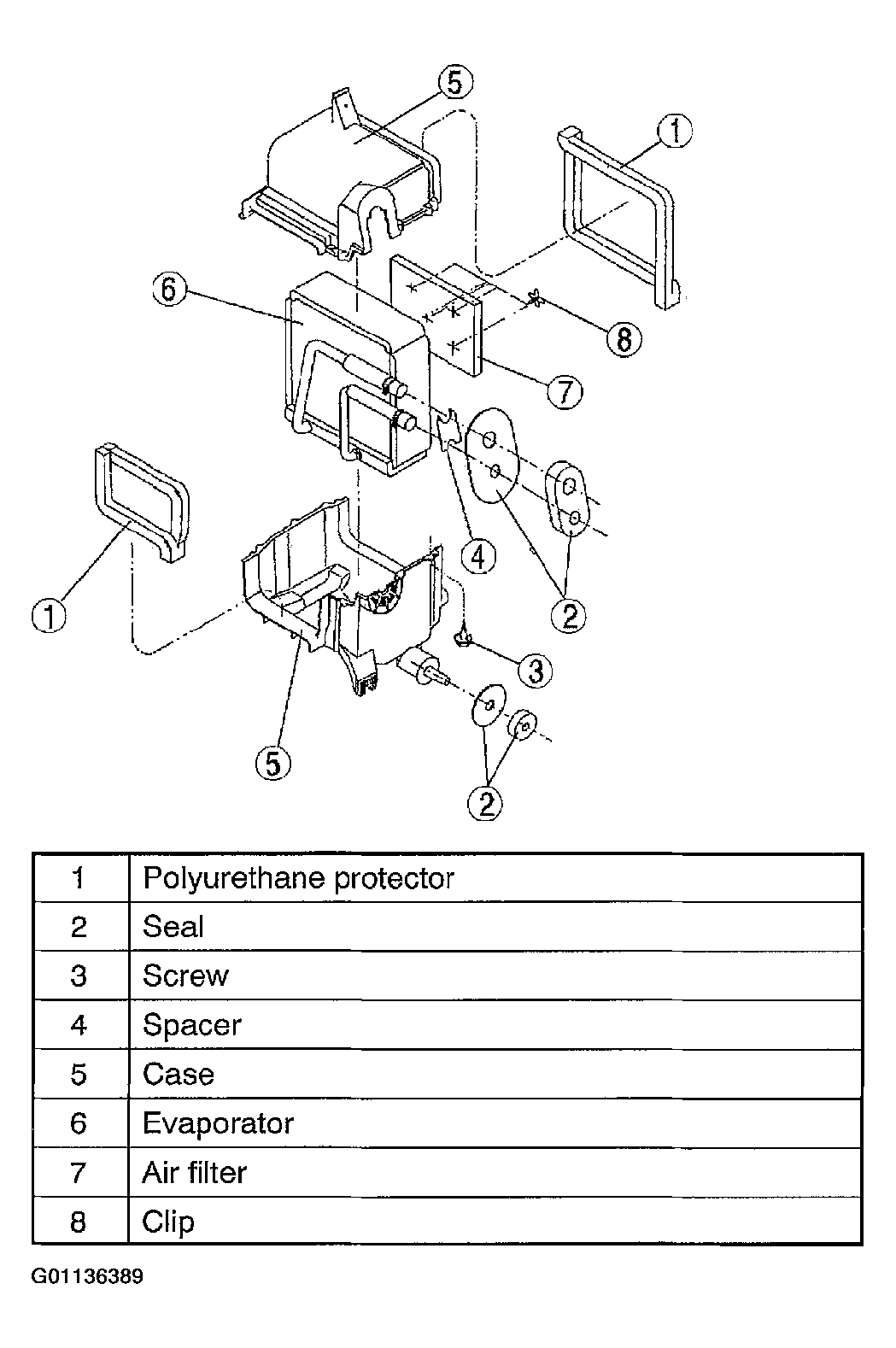

    Fig 1: Disassembling/Assembling Cooling Unit
    G01136389Courtesy of MAZDA MOTORS CORP.
