Hood Latch: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

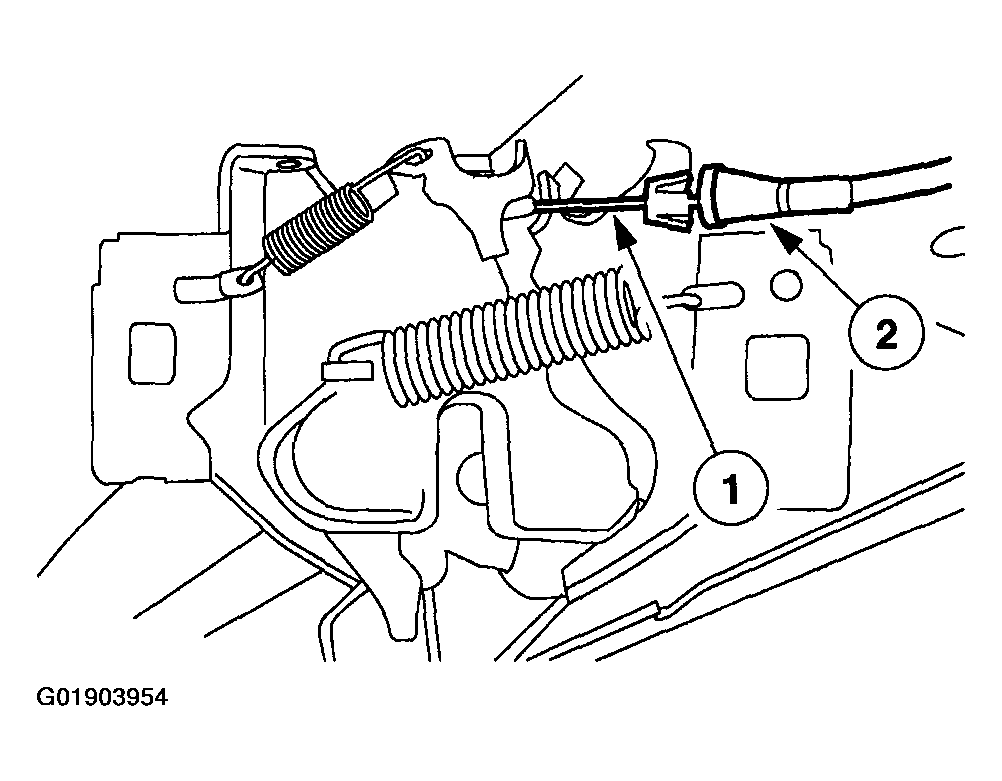

Fig 1: Connecting Hood Latch Release Cable & Conduit

Courtesy of MAZDA MOTORS CORP.

Connect the hood latch release cable and conduit.
1. Connect the cable.
2. Engage the cable conduit.

  Fig 2: Installing Bolts
  Courtesy of MAZDA MOTORS CORP.
Position the hood latch with alignment marks and install the bolts.

Fig 3: Installing Hood Latch Nut
Courtesy of MAZDA MOTORS CORP.
Install the hood latch nut.
Verify the hood alignment.

Fig 4: Adjusting Hood Latch
Courtesy of MAZDA MOTORS CORP.
Adjust the hood latch.
1. Loosen the bolts.
2. Loosen the nut.
3. Align the hood latch with the hood latch striker.

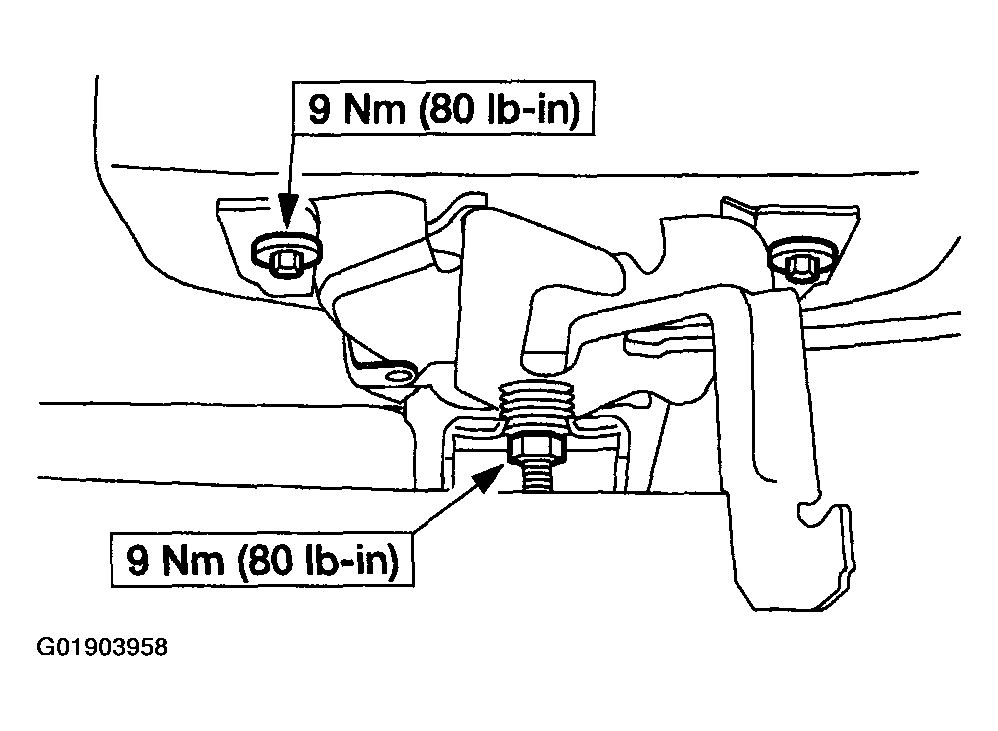

  Fig 5: Tightening Hood Latch Bolts And Nut
  Courtesy of MAZDA MOTORS CORP.
Tighten the hood latch bolts and nut.
CAUTION:
- Make sure the hood latch is fully engaged.
Verify the hood latch striker is fully engaging the hood latch.
1. Repeat previous steps as necessary.
