H - Key Interlock System / Shift-Lock System

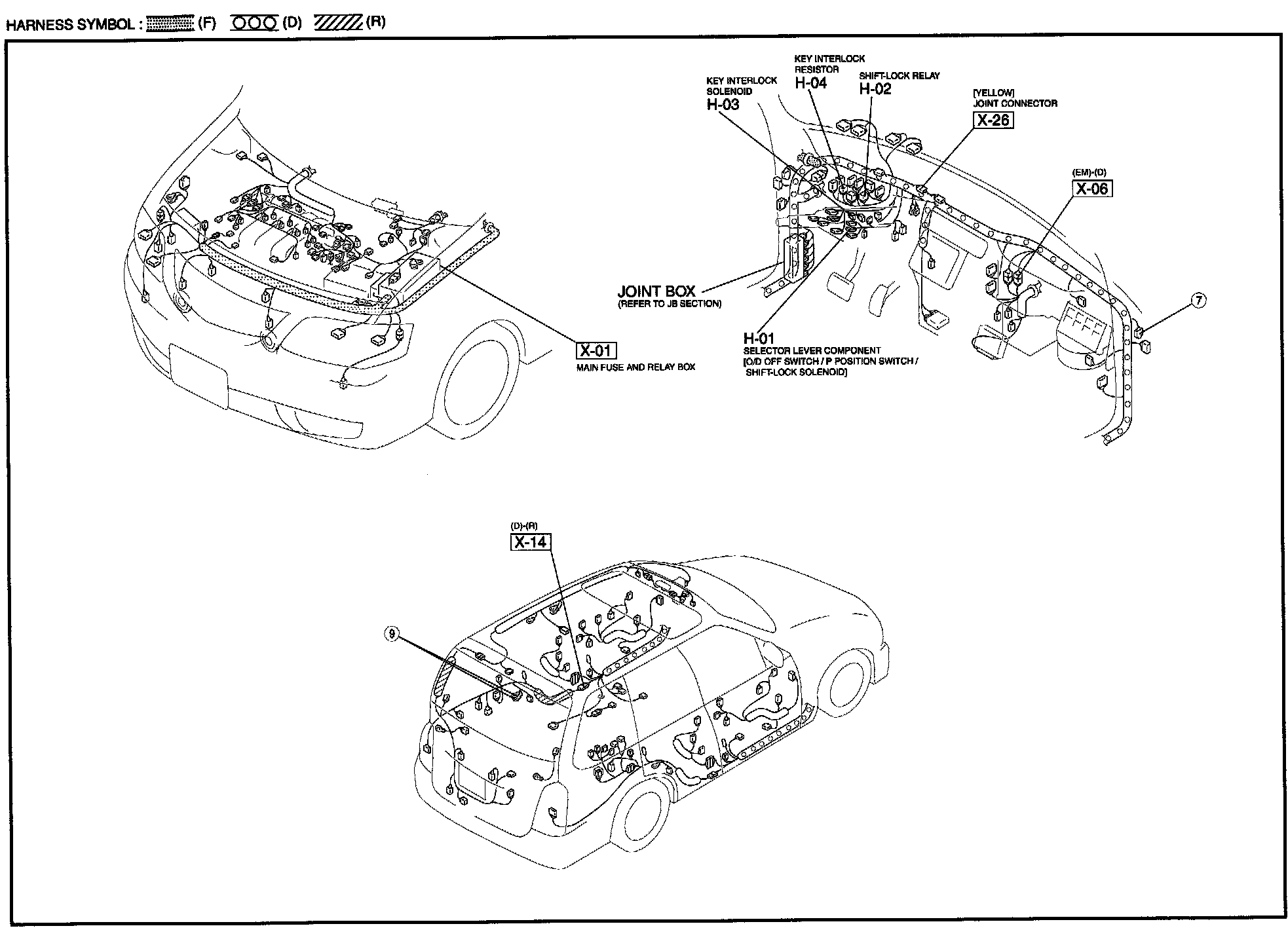

H - Key Interlock System / Shift-lock System Harness / Connector Symbols:
