Front Shock Absorber and Coil Spring Installation Note
WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Install the stud bolts at a 27-33 degree angle from where the stabilizer control link is installed (center line), towards the inner side of the vehicle.

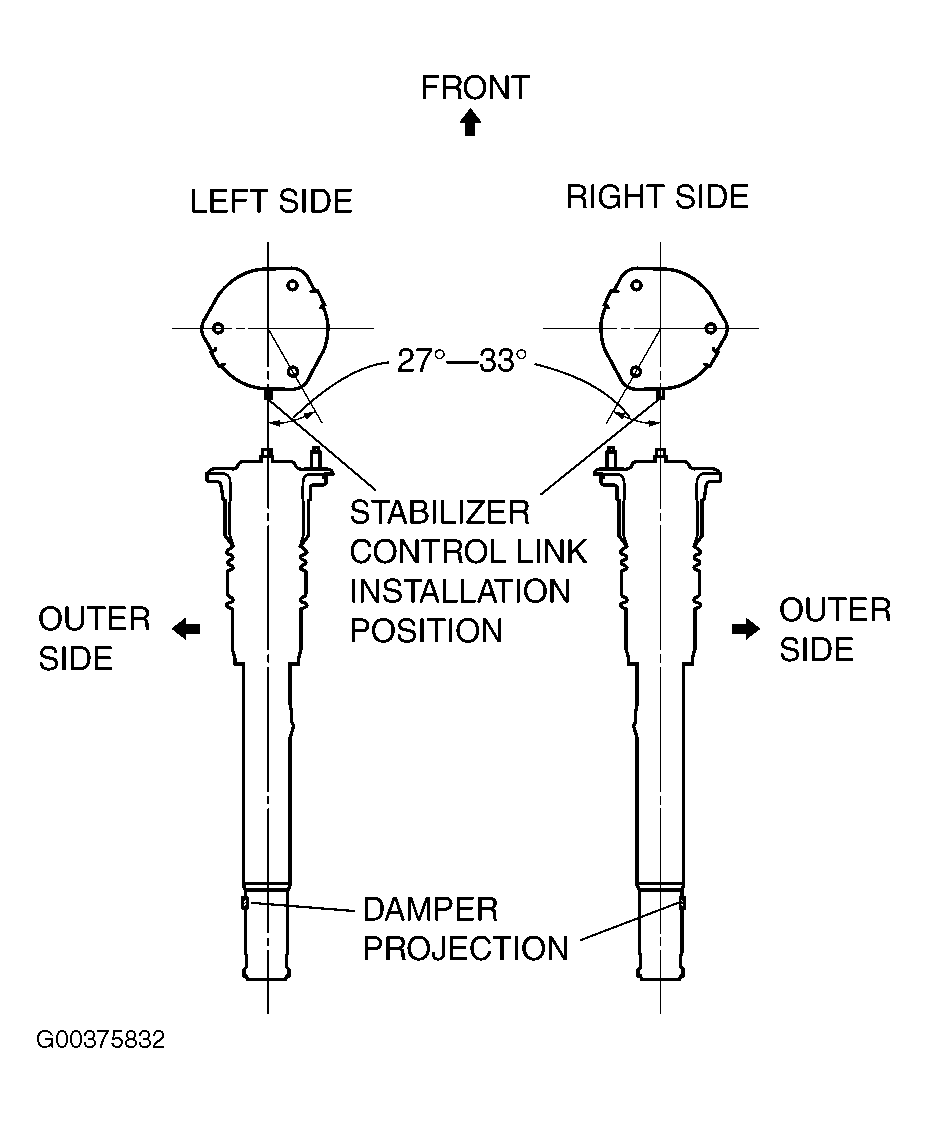

Fig 1: Installing Front Shock Absorber & Coil Spring
