No. 12 Lack/Loss Of Power-Acceleration/Cruise

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

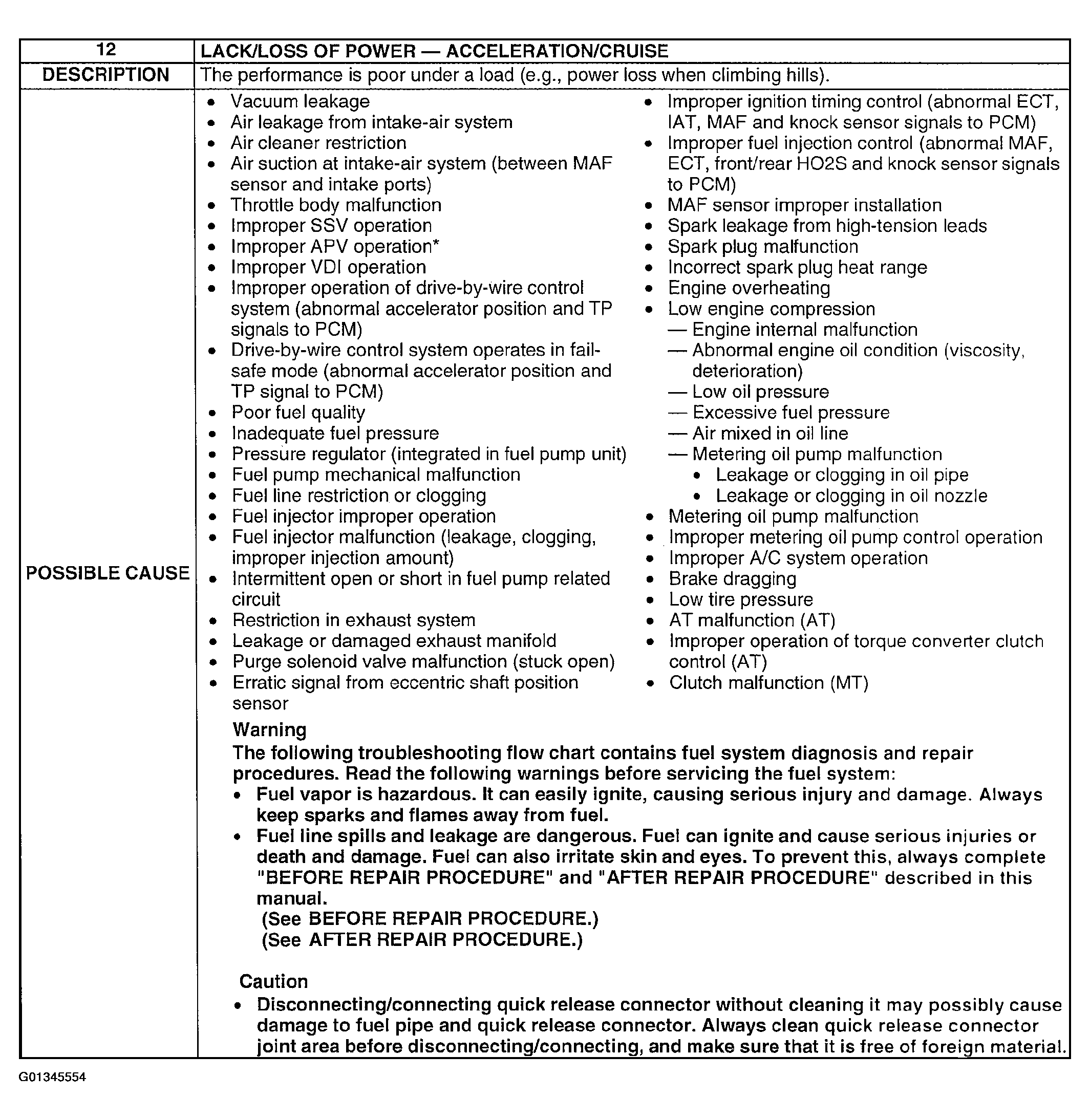

Fig 1: Possible Cause - No. 12 Lack/Loss Of Power-Acceleration/Cruise

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

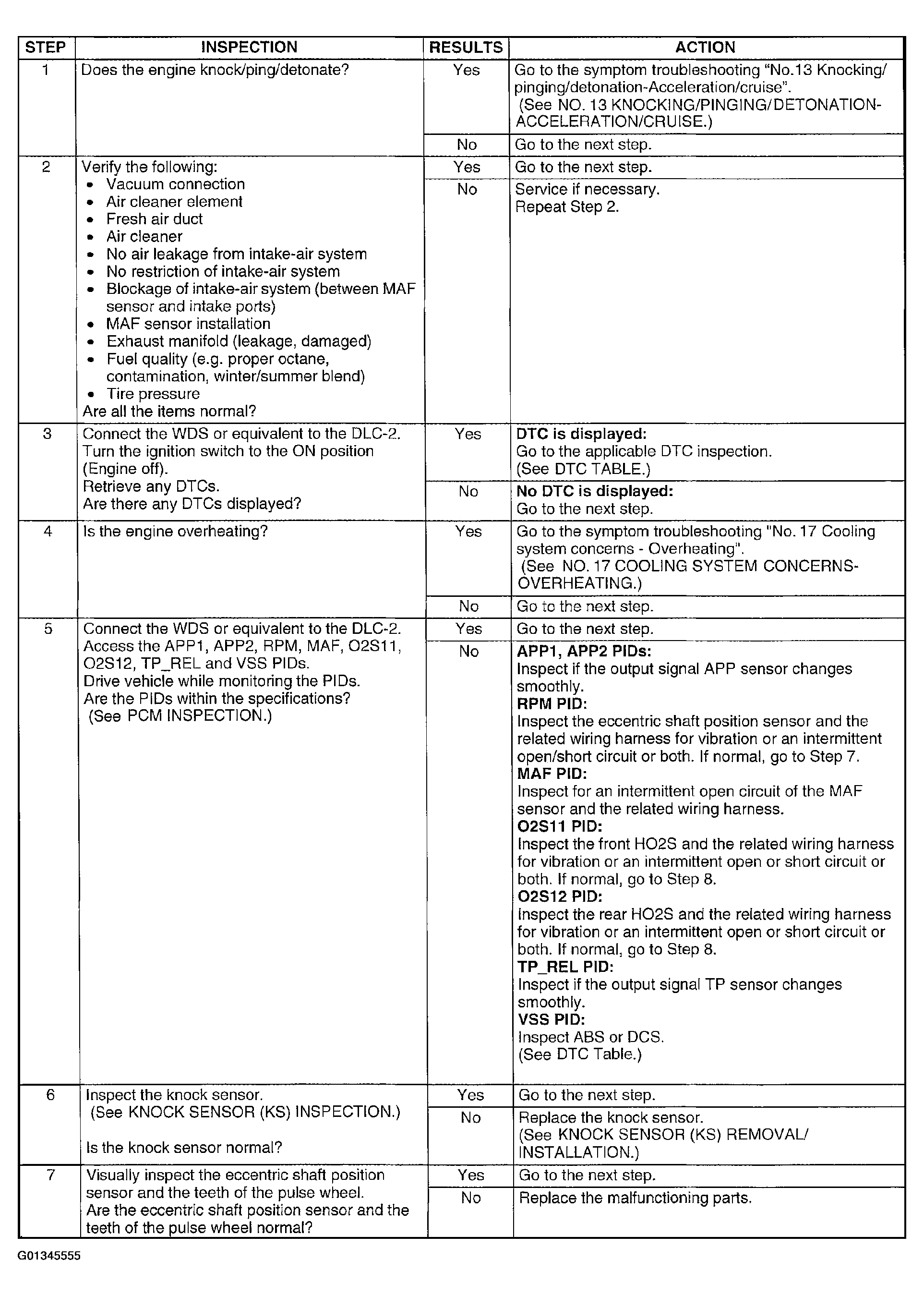

Fig 2: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

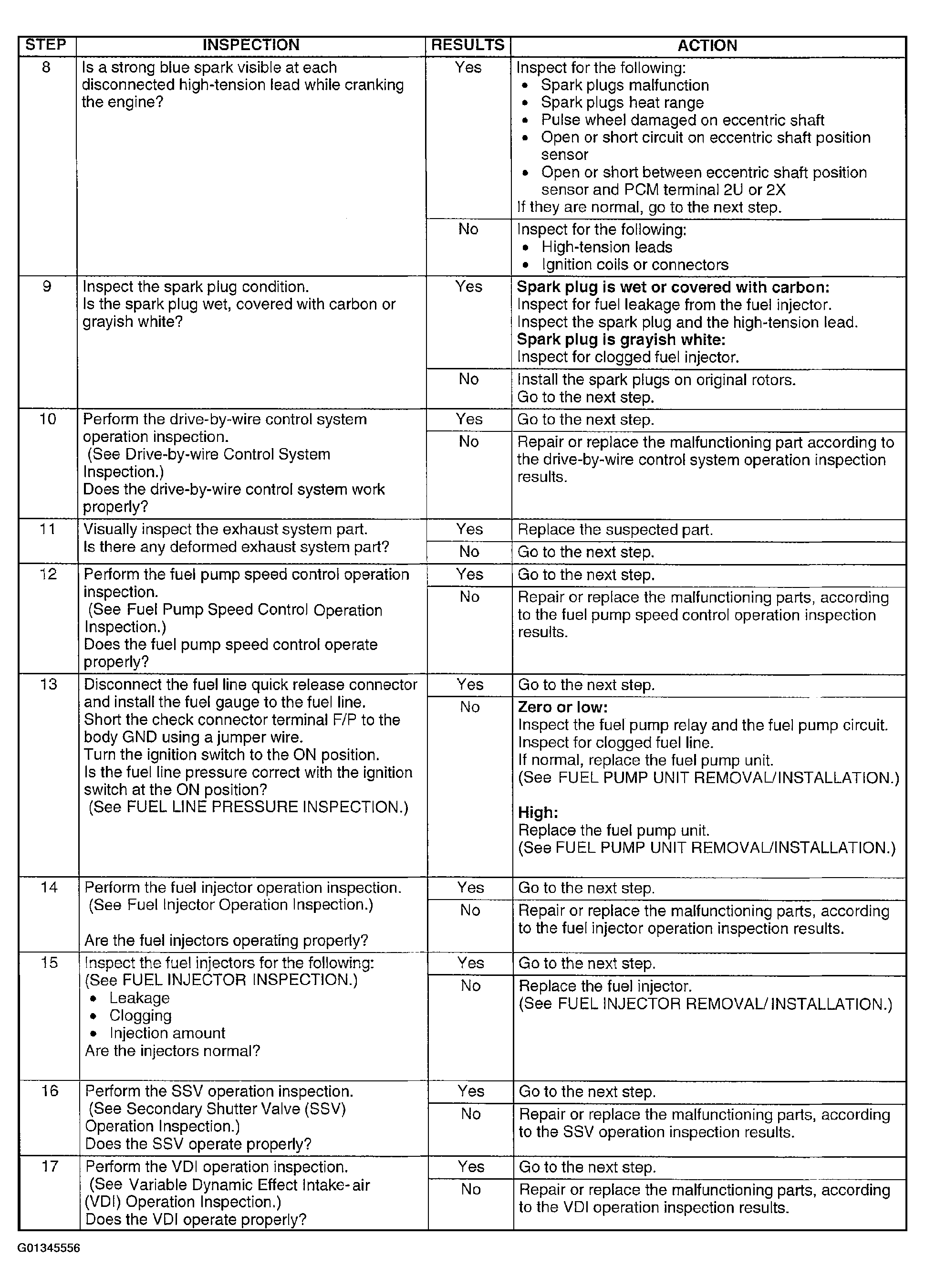

Fig 3: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise (Steps 8-17)

Courtesy of MAZDA MOTORS CORP.

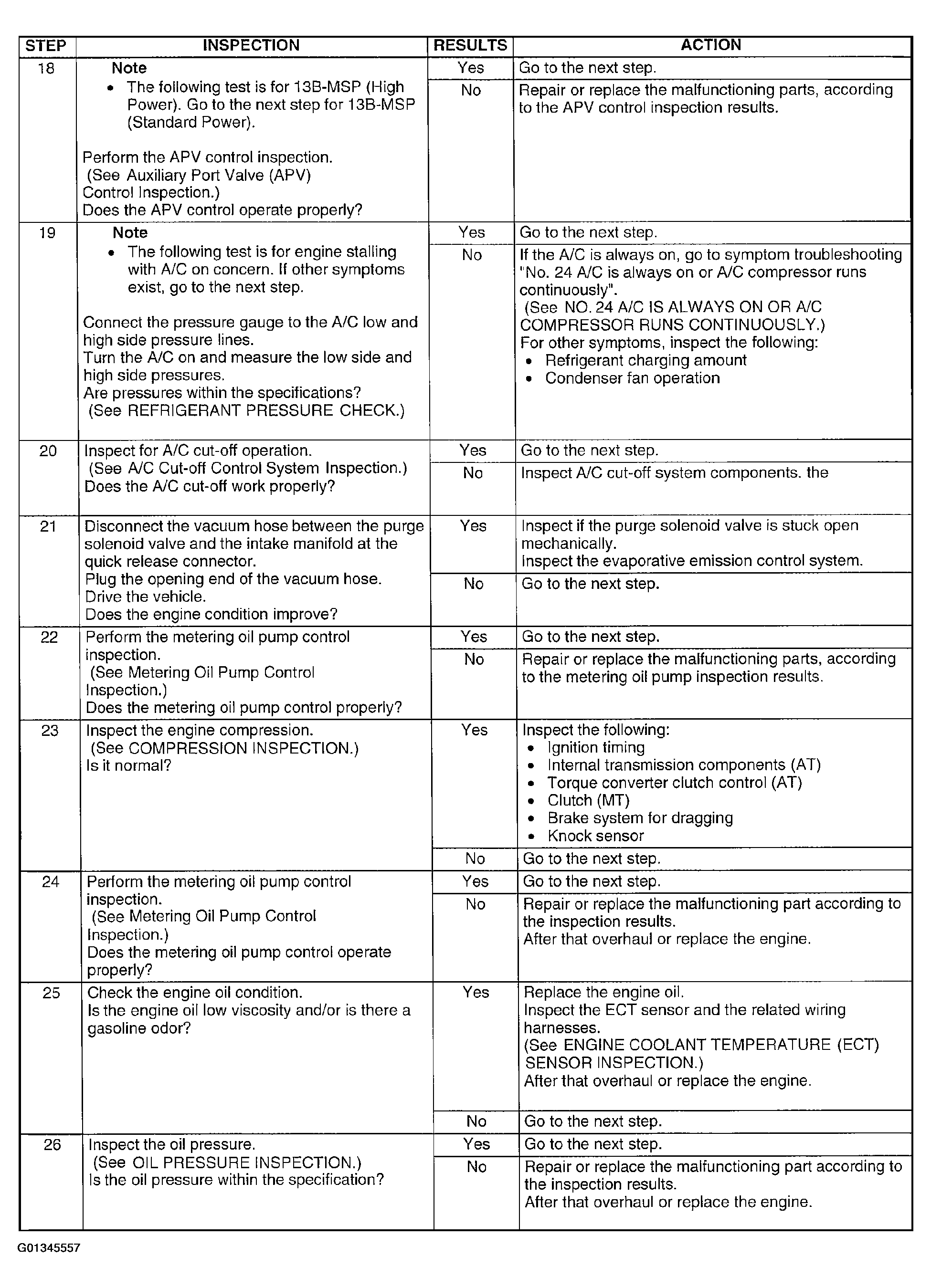

Fig 4: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise (Steps 18-26)

Courtesy of MAZDA MOTORS CORP.

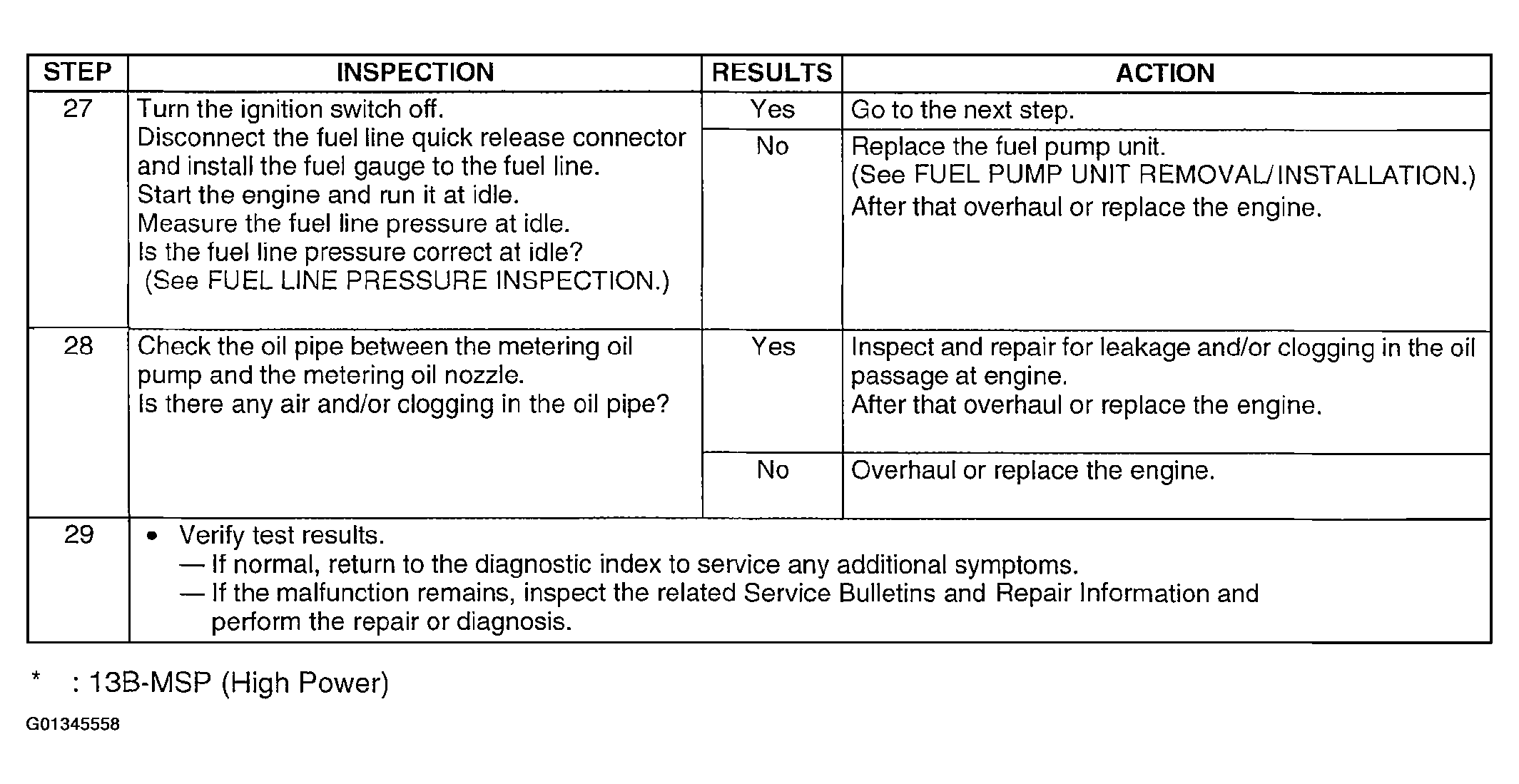

Fig 5: Diagnostic Procedure - No. 12 Lack/Loss Of Power-Acceleration/Cruise (Steps 27-29)

Courtesy of MAZDA MOTORS CORP.
