Front Blower Relay Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Because the lock section of the unit is damaged easily, do not remove the front blower relay from the bracket unless replacement is necessary. Always perform an inspection of the front blower relay before removal.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

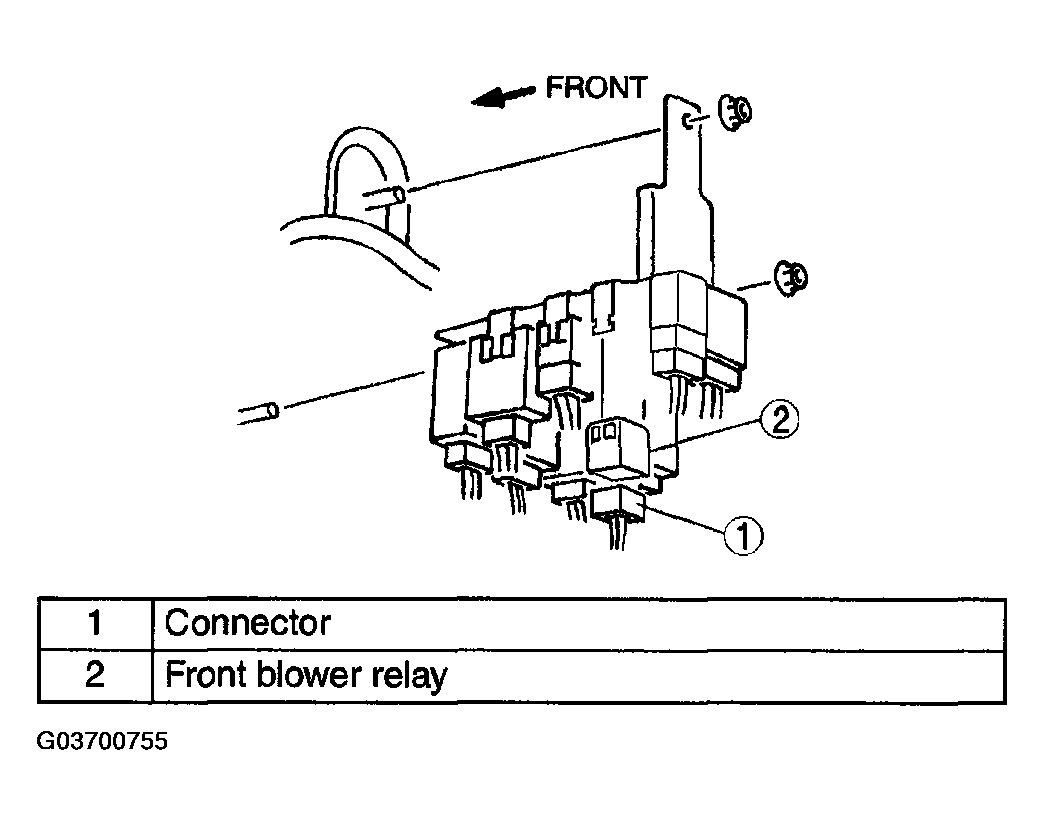

    Fig 1: Removing Front Blower Relay
    G03700755Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
