Rear Main Fan Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear main fan switch. (See REAR MAIN FAN SWITCH REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

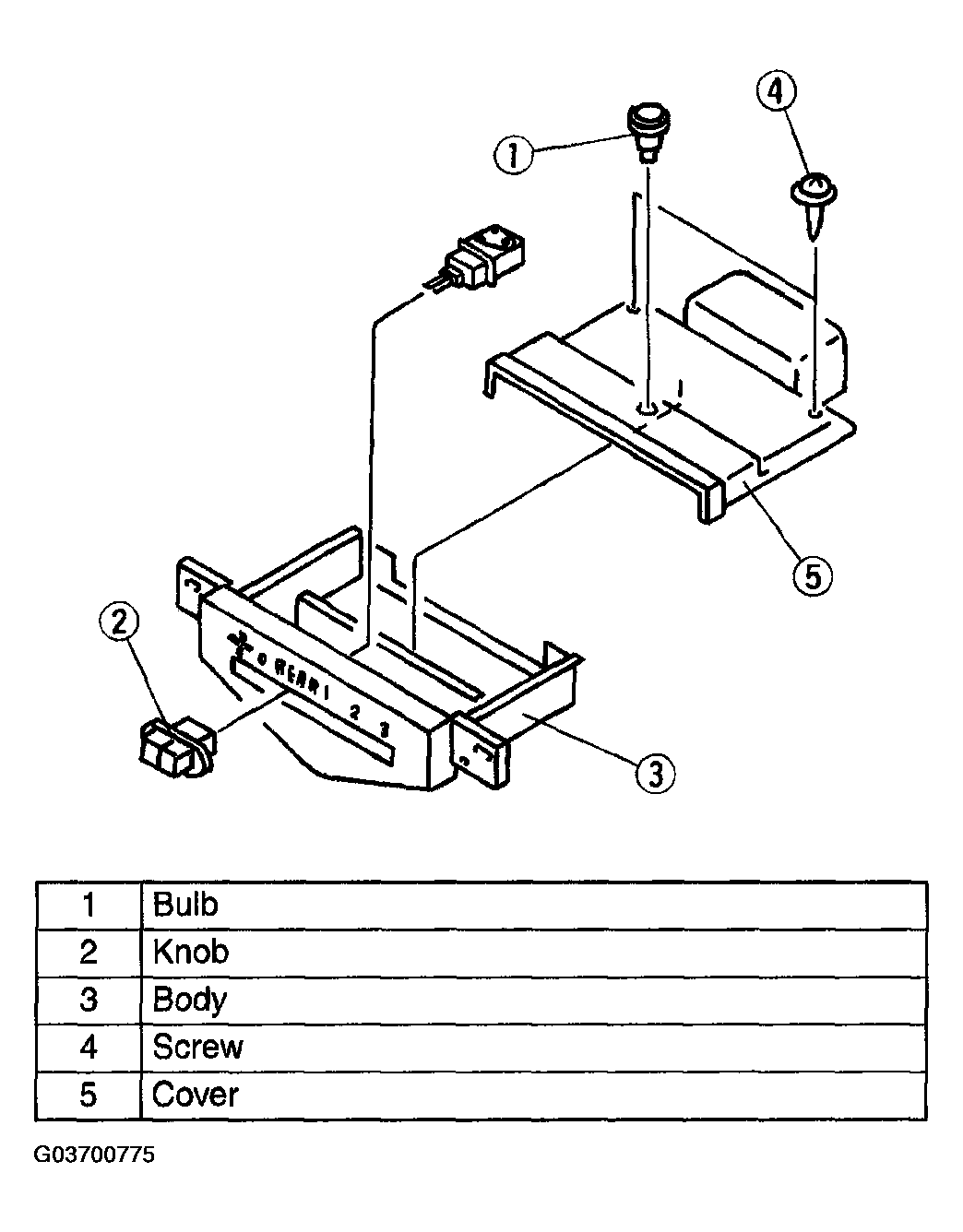

    Fig 1: Disassembling Rear Main Fan Switch
    G03700775Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
