Headlight Switch

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

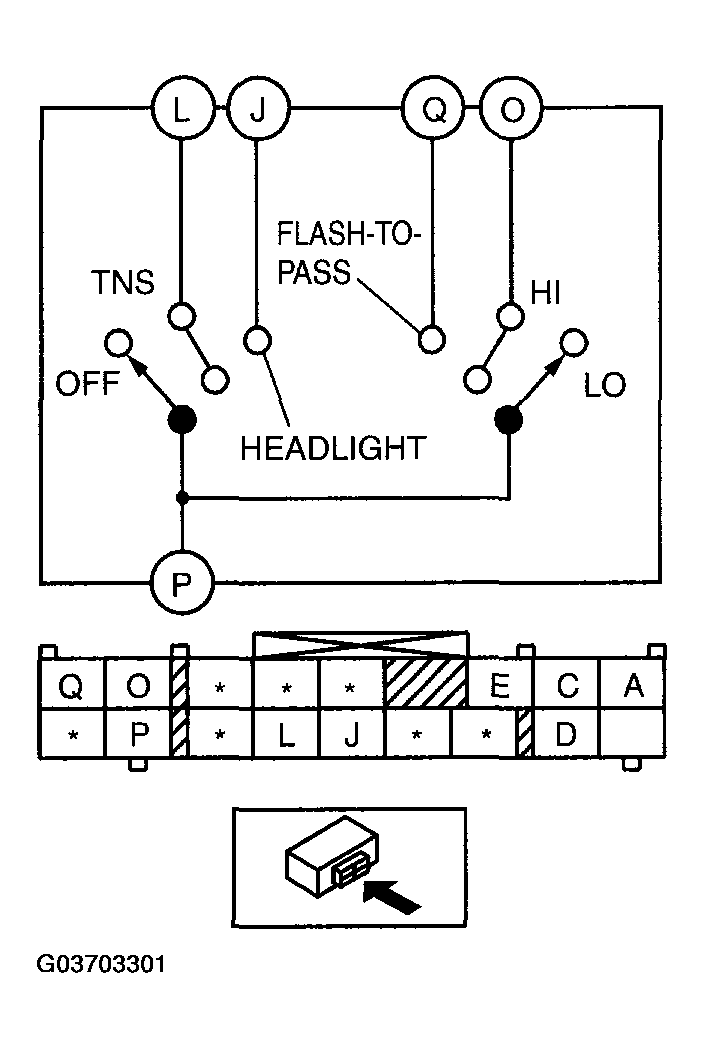

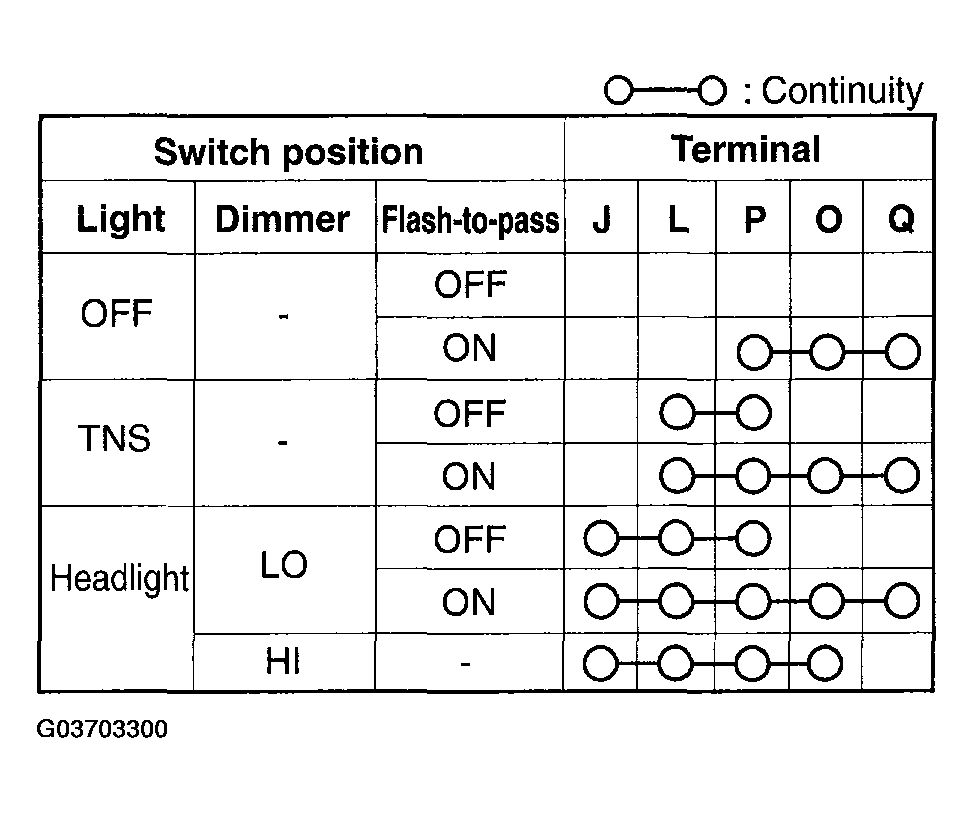

Fig 1: Headlight Switch Terminal And Continuity Chart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Checking Continuity Between Light Switch Terminals (Headlight Switch)
