Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the cooling unit. (See COOLING UNIT REMOVAL/INSTALLATION  .)
  3. Remove in the order indicated in Fig 1 .

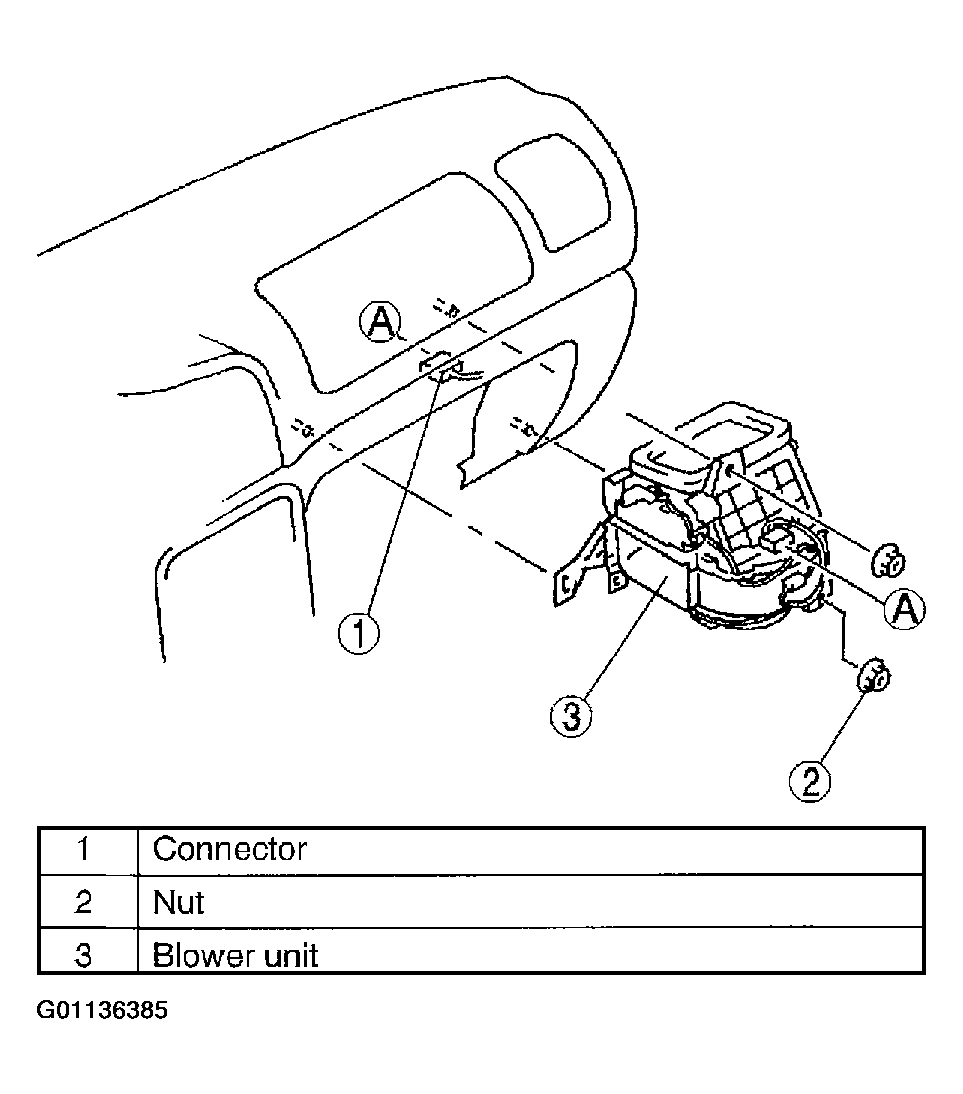

    Fig 1: Removing/Installing Blower Unit
    G01136385Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
