Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in Fig 1 .
  4. Install in the reverse order of removal.

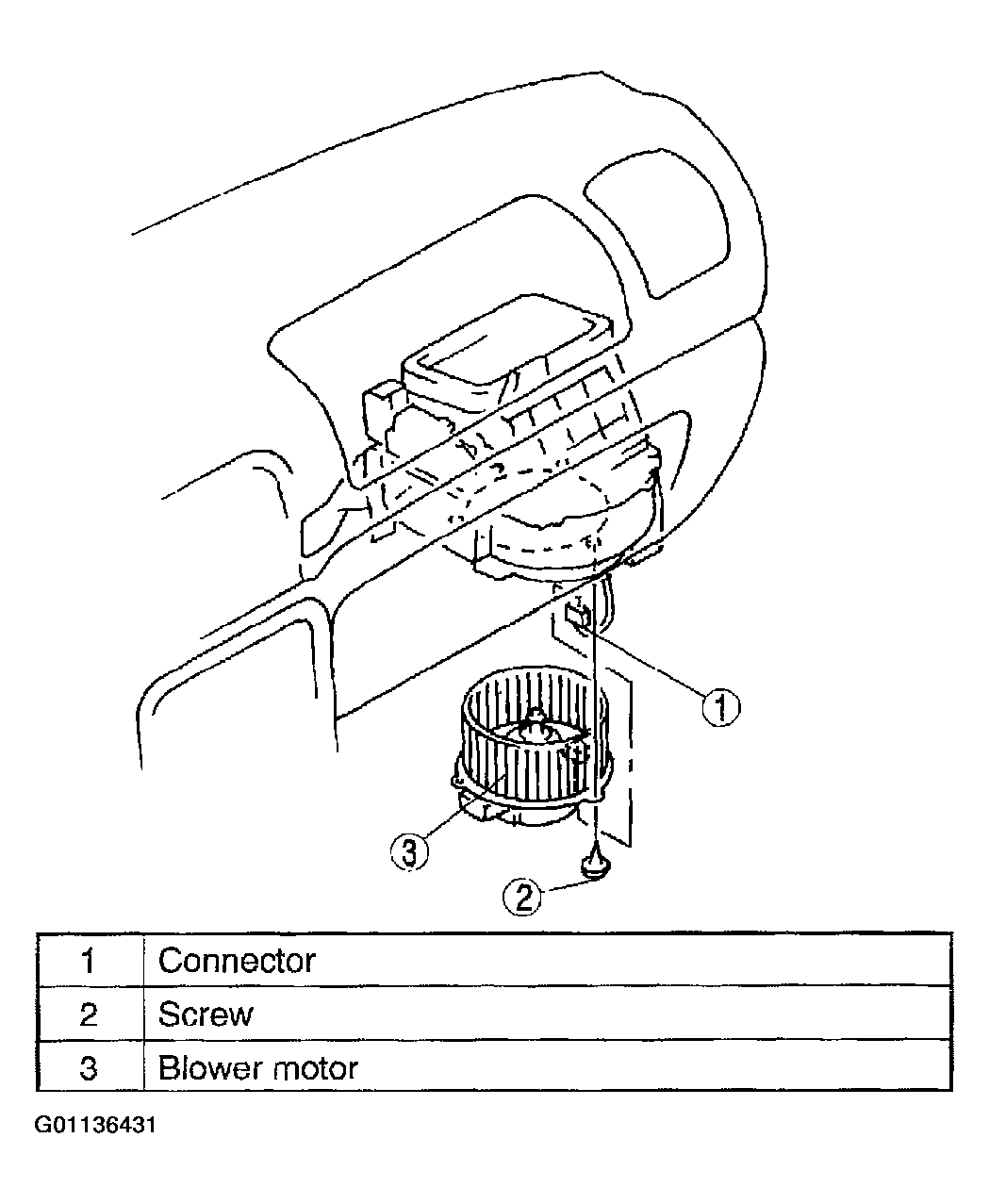

    Fig 1: Removing/Installing Blower Motor
    G01136431Courtesy of MAZDA MOTORS CORP.
