Swing Louver Description

• The swing louver is installed on the center vent and operates the right and left air distribution fins to send airflow evenly.

Structure

• The swing louver consists of a swing switch, swing louver motor, a bar, two sliders, and two louvers.

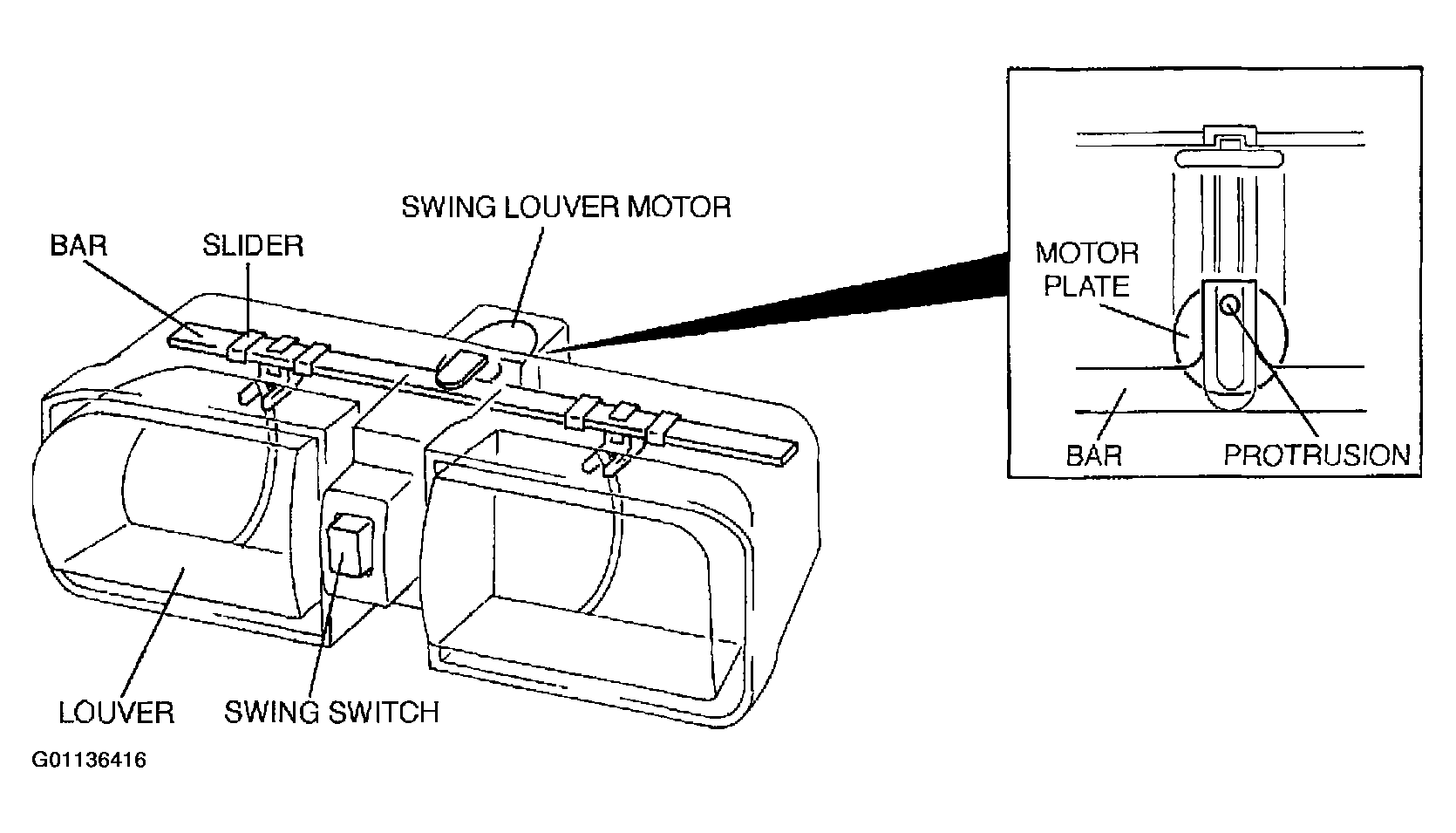

  Fig 1: Identifying Swing Louver Components

  Courtesy of MAZDA MOTORS CORP.

Mechanical operation

1. When the swing motor rotates, the protrusion on the motor plate rotates.
2. The protrusion on the motor plate moves within a groove on the bar.
3. The fins of the louver move right and left because the bar, slider, and louver are synchronized.

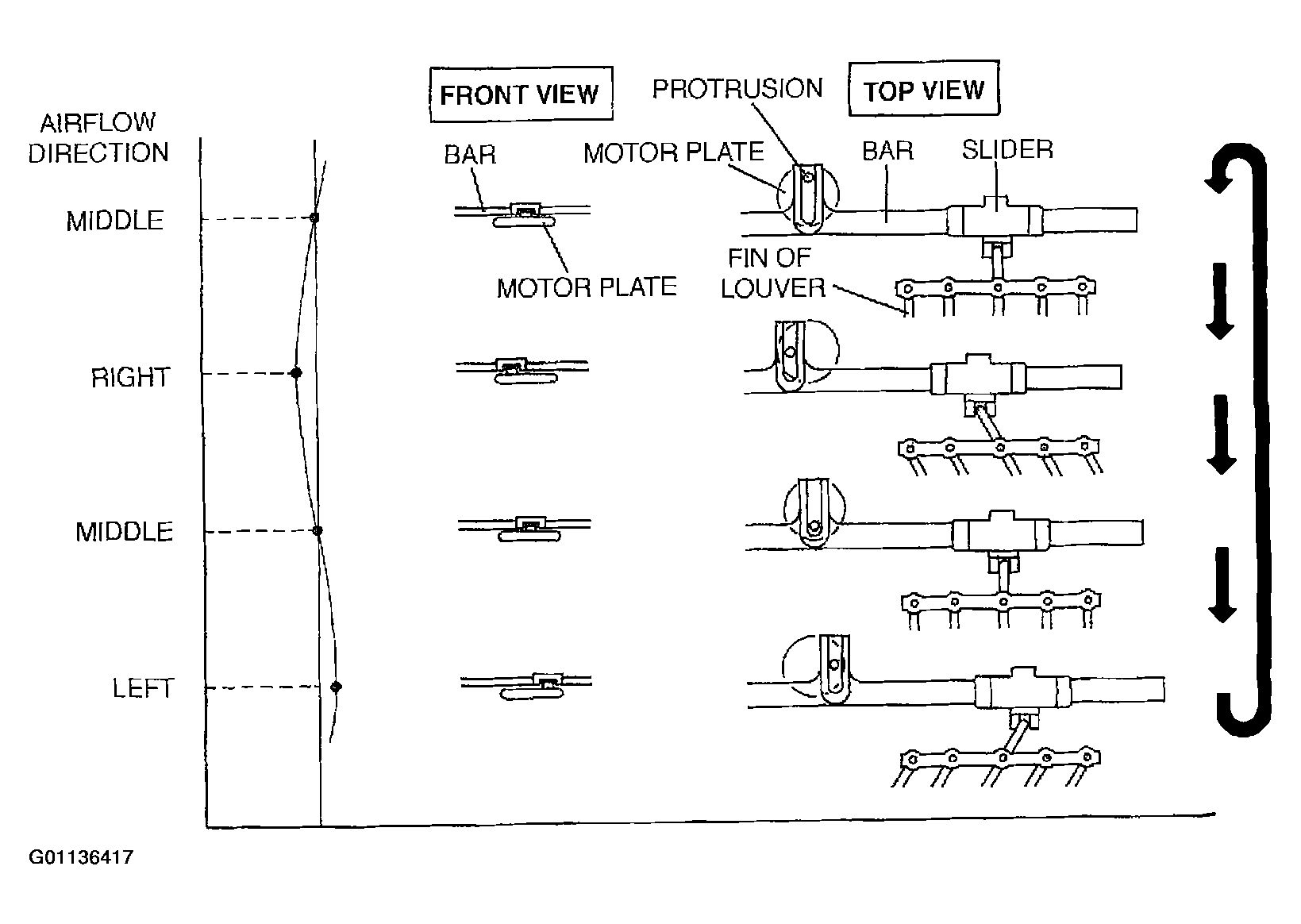

   Fig 2: Identifying Swing Louver Mechanical Operation

   Courtesy of MAZDA MOTORS CORP.

Electric operation

• The current flows to the swing louver motor when the switch is turned on and the motor operates.
  Fig 3: Identifying Swing Louver Electrical Operation

  Courtesy of MAZDA MOTORS CORP.
