Component Locations
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

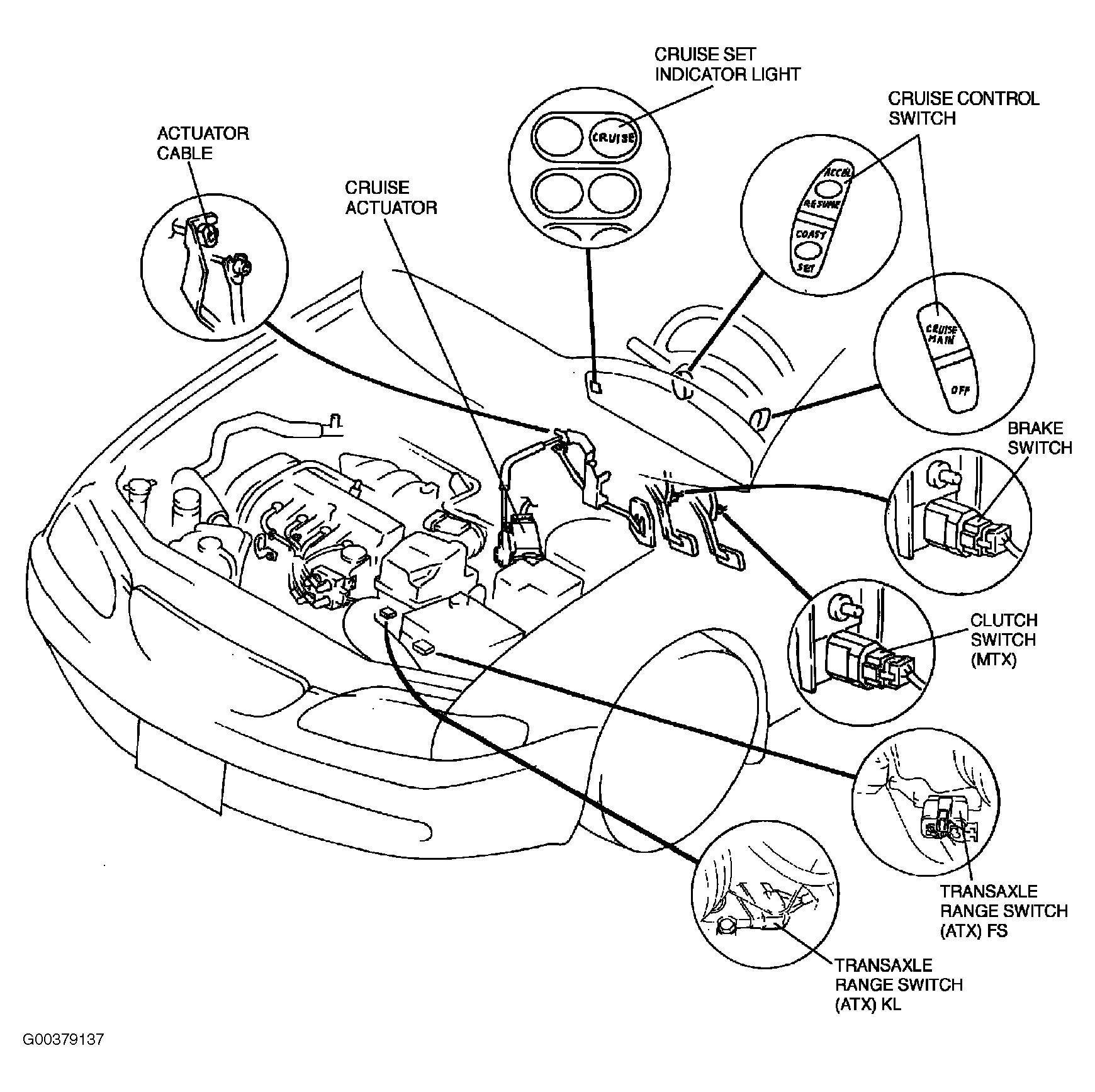

Courtesy of MAZDA MOTORS CORP. COMPONENT LOCATIONS
| Component |
Location |
| Actuator |
Left Rear Corner Of Engine Compartment |
| Brake Switch |
On Brake Pedal Bracket |
| Clutch Switch (M/T) |
On Clutch Pedal Bracket |
| Cruise Control Switch(es) |
On Steering Wheel |
| Transmission Range Switch (A/T) |
On Top Of Transaxle |
| Vehicle Speed Sensor |
On Transmission |
