Windshield Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the windshield washer motor connector.

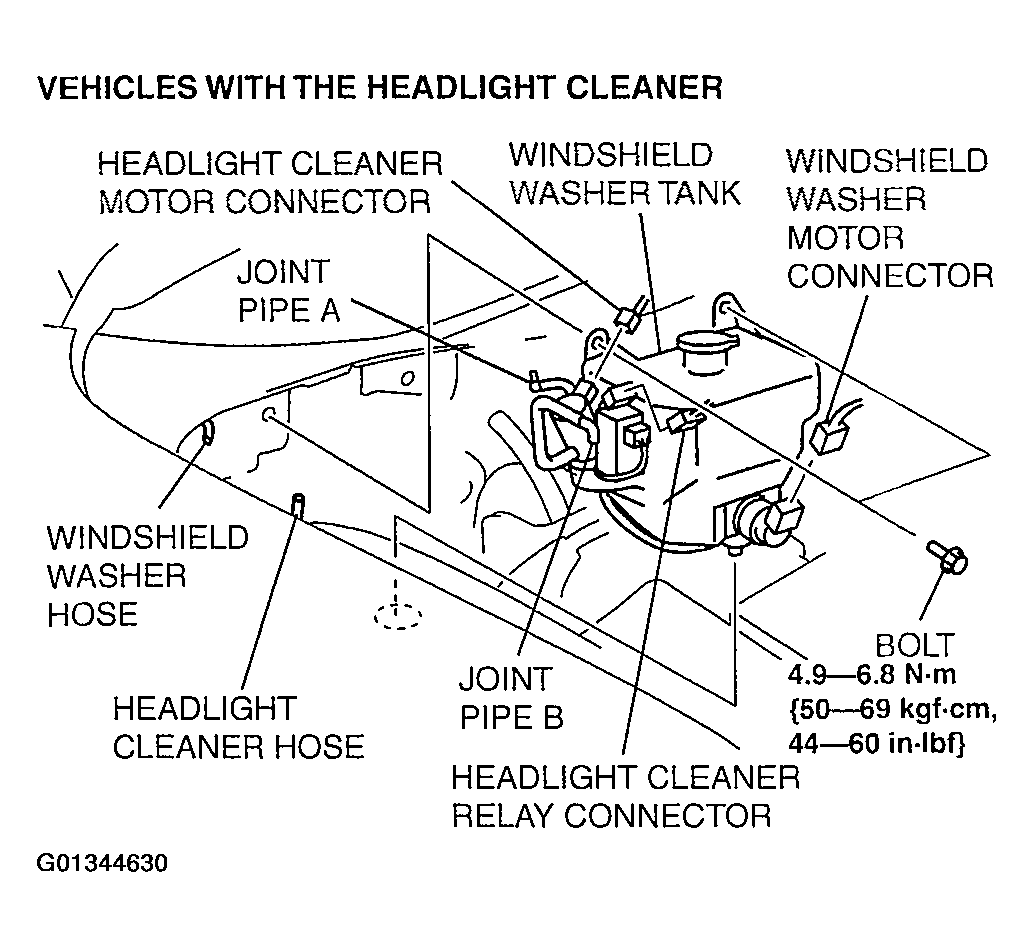

    Fig 1: Vehicles With Headlight Cleaner
    G01344630Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the headlight cleaner motor connector. (Vehicles with the headlight cleaner).
  4. Disconnect the headlight cleaner relay connector. (Vehicle with the headlight cleaner).
  5. Disconnect the windshield washer hose from joint pipe A.
  6. Disconnect the headlight cleaner hose from joint pipe B. (Vehicles with the headlight cleaner).
  7. Remove the bolts, then remove the windshield washer tank.
  8. Install in the reverse order of removal.

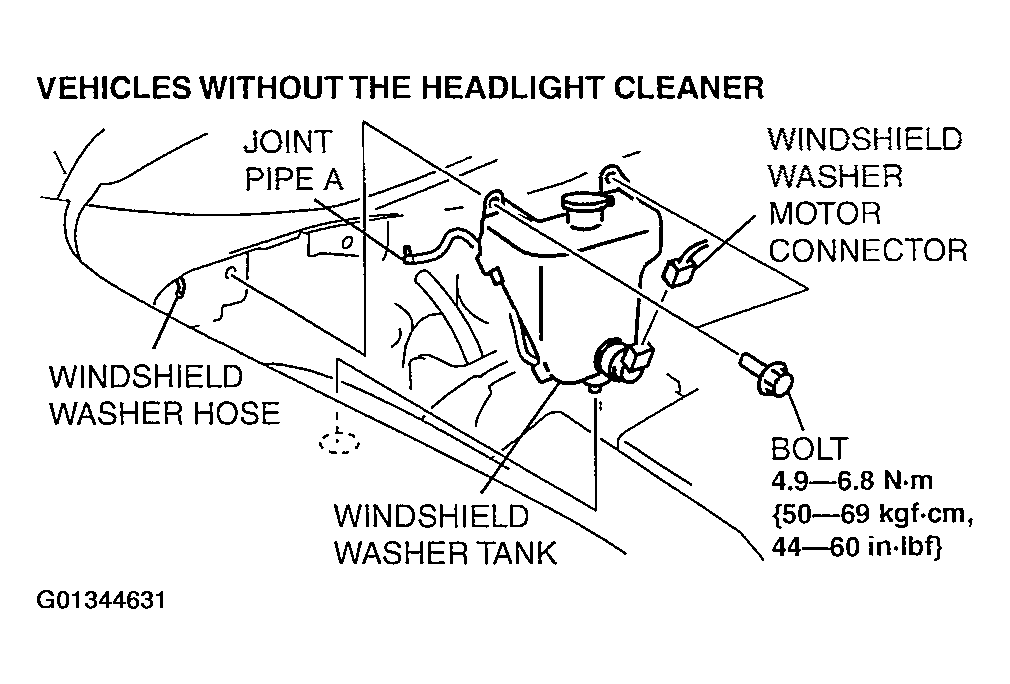

    Fig 2: Vehicles Without Headlight Cleaner
    G01344631Courtesy of MAZDA MOTORS CORP.
