Windshield Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the illustration.

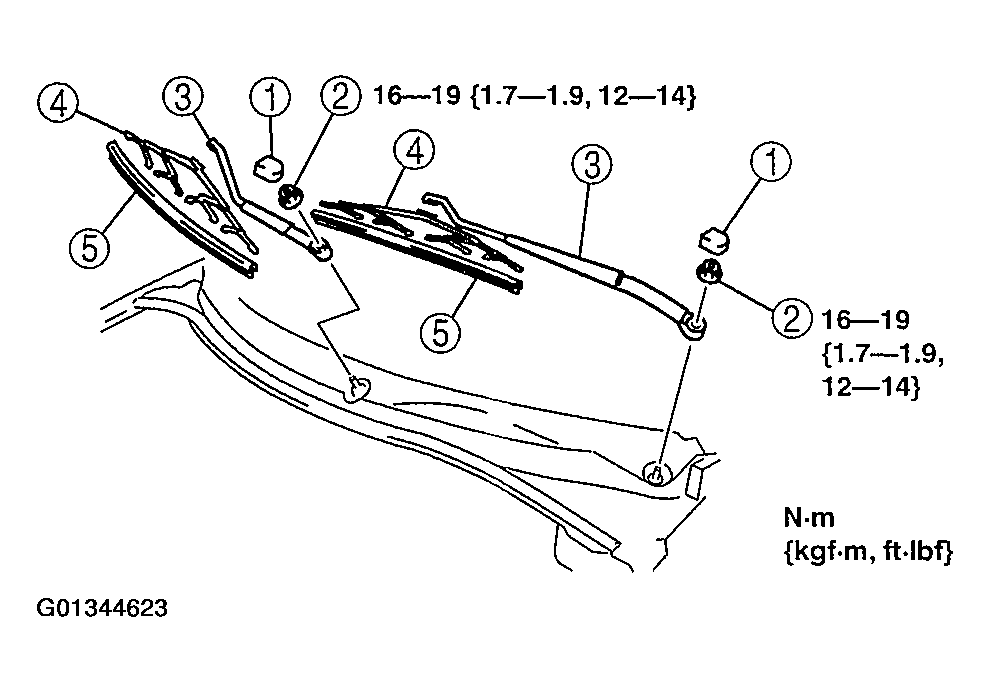

Fig 1: Windshield Wiper Arm And Blade Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)

Fig 2: Removing/Installing Windshield Wiper Arm And Blade
Courtesy of MAZDA MOTORS CORP.
