Windshield Wiper Motor Disassembly/Assembly
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the windshield wiper arm blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
- Disconnect the connector.

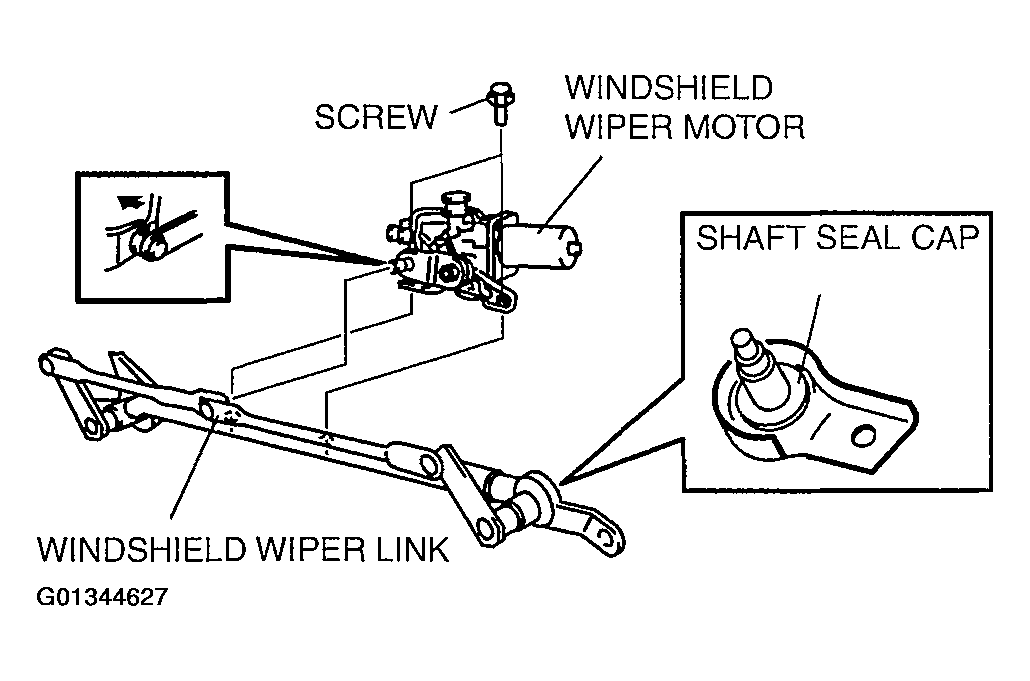

- Detach the connecting part between the windshield wiper motor and the windshield wiper link.
- Remove the screws, then remove the windshield wiper motor.
- Assemble in the reverse order of disassembly.
- Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)
