Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

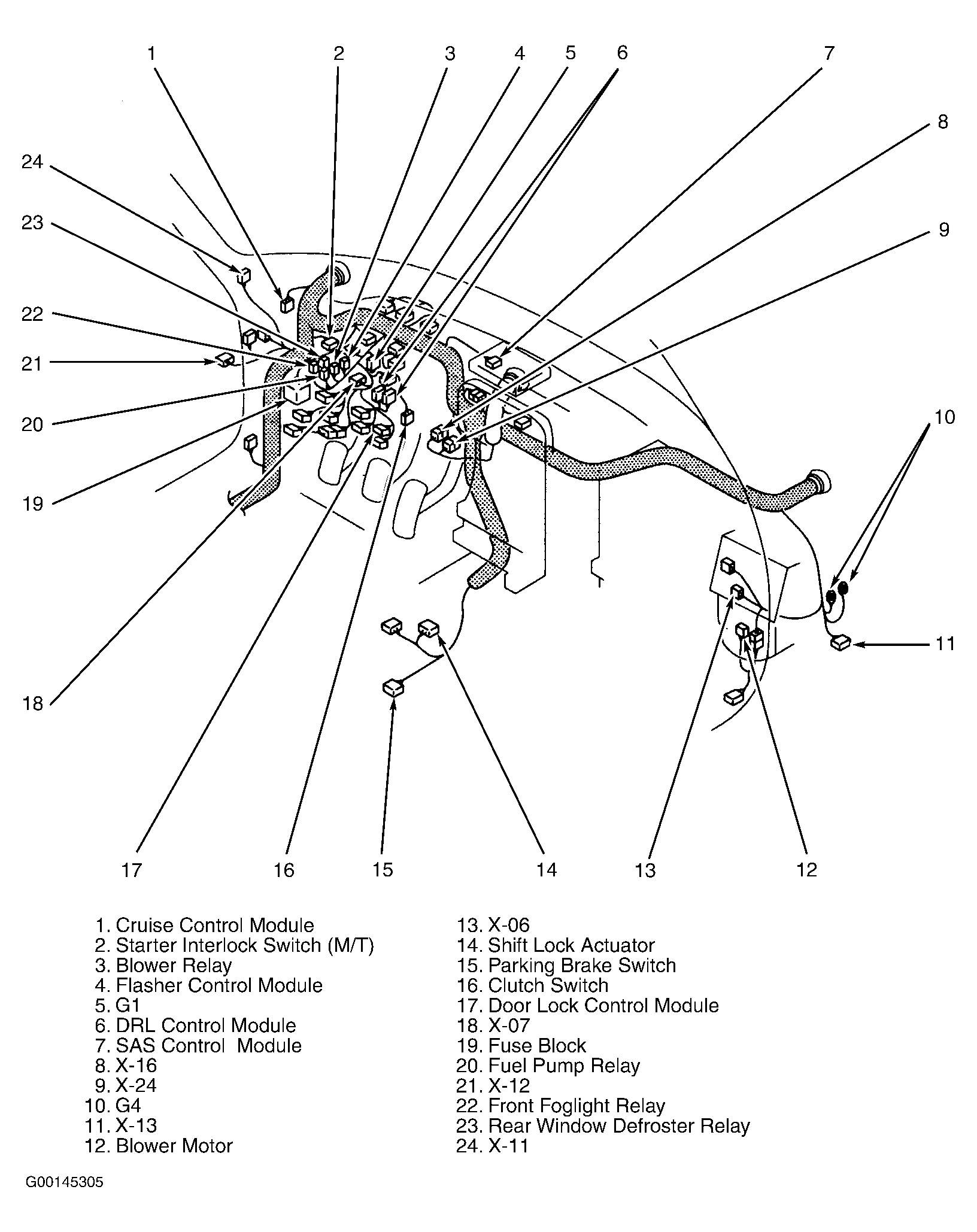

Fuse Block Behind left side of dash. See Figure .
Fusible Link On right rear of engine compartment, behind main fuse block.

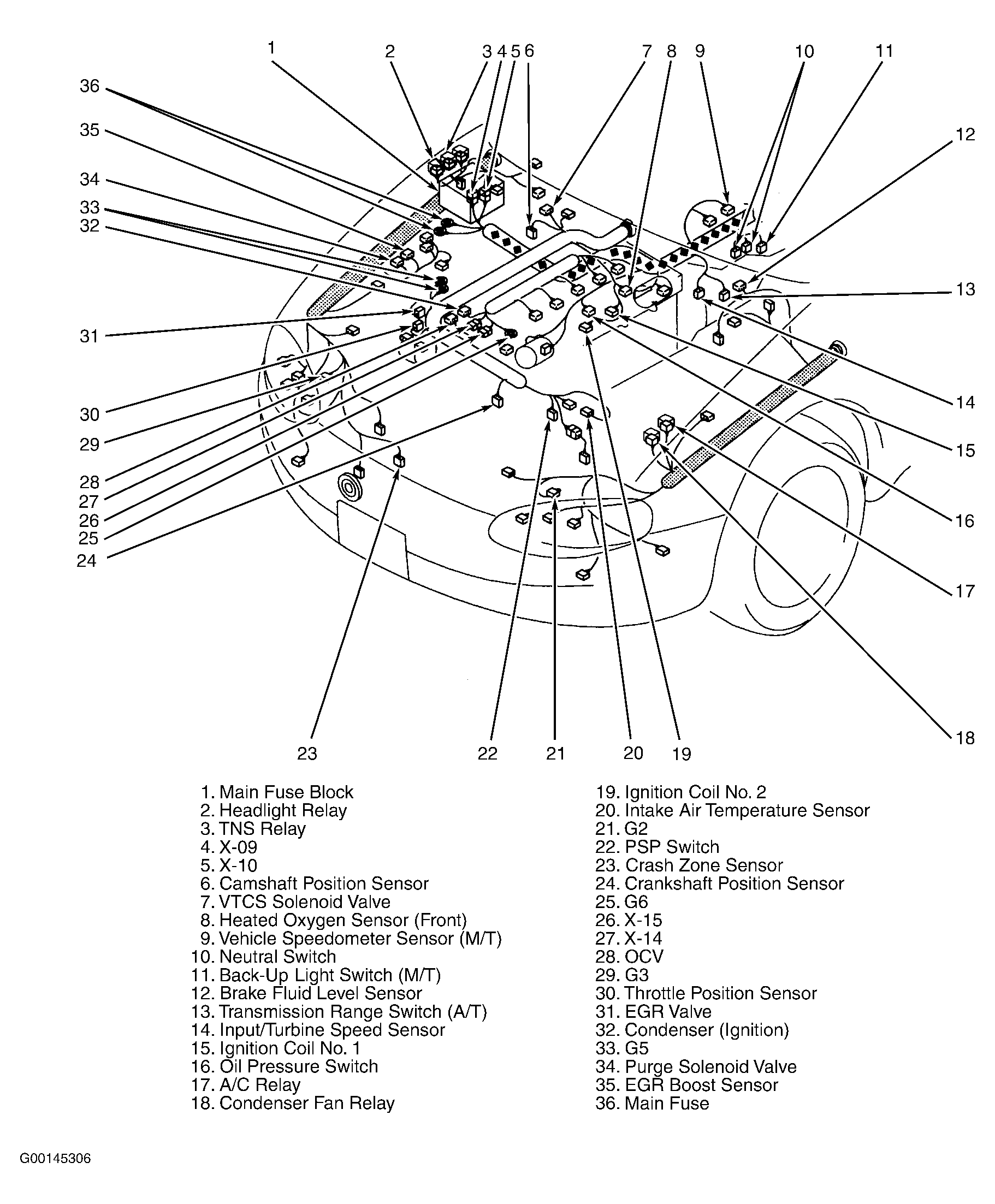

Main Fuse On right rear of engine compartment. See Figure .
Main Fuse Block On right rear of engine compartment. See Figure .
Thermal Protector On left front of engine compartment.
