Power Door Lock Control Module: Testing and Inspection

INSPECTION

1. Remove the lower panel.
2. Measure the voltage at the door lock control module terminals as indicated below.
3. Disconnect the door lock control module connector before inspecting for continuity at terminals F, H, M and N.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the door lock control module.

Terminal Pinouts:

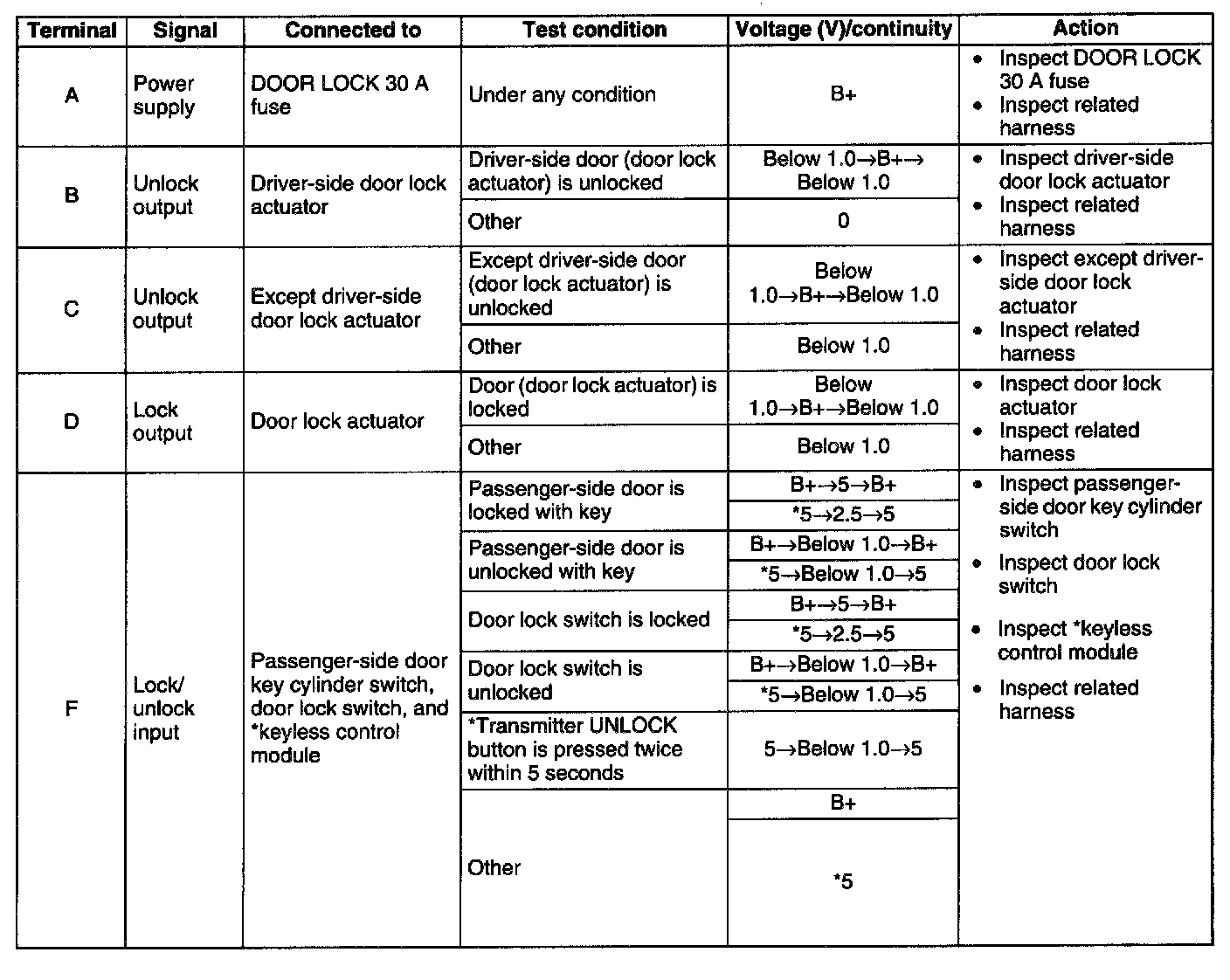

Terminal A - F:

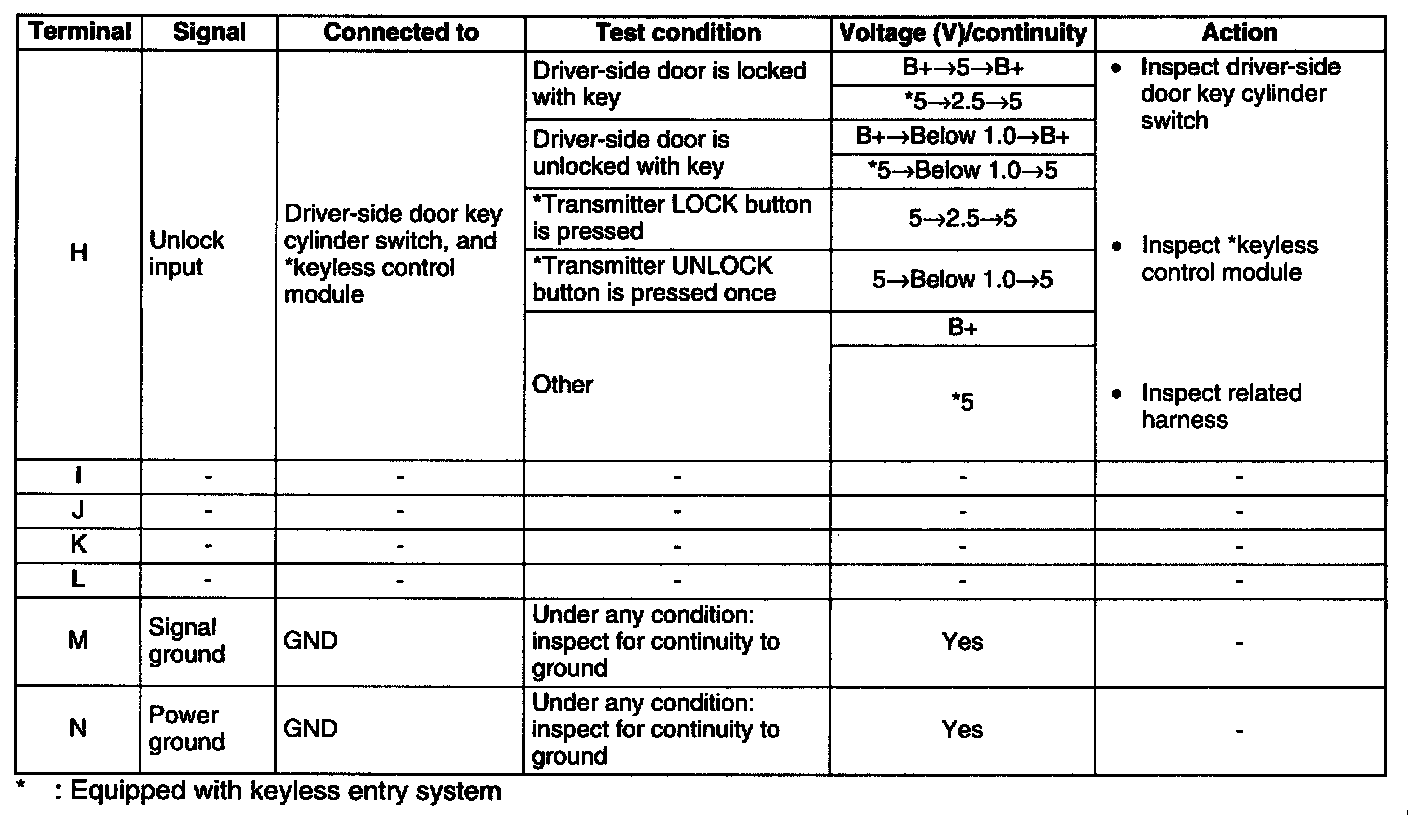

Terminal H - N:

Terminal Voltage List (Reference)
