Power Outer Mirror Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

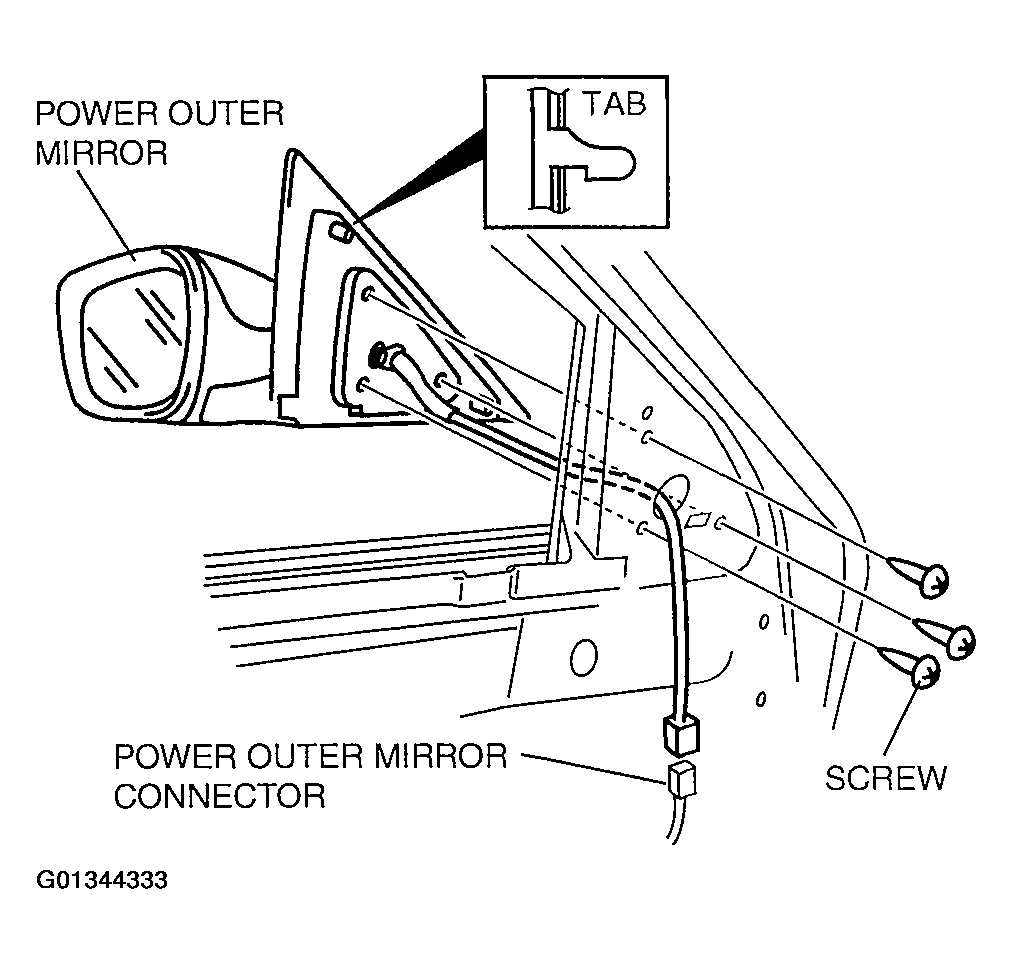

- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the power outer mirror connector.
- Remove the screws.
- Push the power outer mirror against the vehicle and detach the tab while lifting the mirror up to remove.
- Install in the reverse order of removal.
