Front Door Glass Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front door glass so that the distance between the top of the front door glass and top of the front belting molding is 140 mm {5.51 in}.
    Fig 1: Positioning Door Glass
    G01344310Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the hole cover.

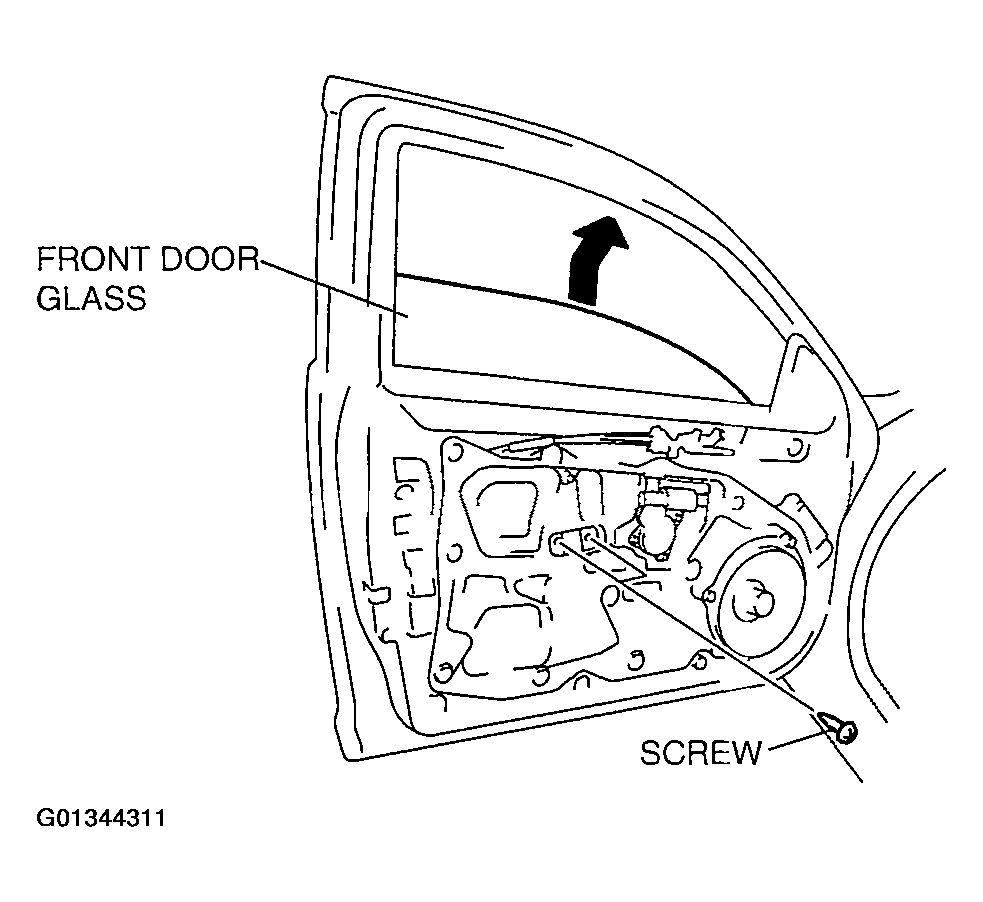

    Fig 2: Removing Hole Cover
    G01344311Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Lift the front door glass up, then remove it while tilting it in the direction of the arrow.
  8. Install in the reverse order of removal.
