Not Reusing Rear Window Glass

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • For the areas of the sealant that are difficult to cut, use the SST  (piano wire) and follow the procedure under REUSING REAR WINDOW GLASS  .
  1. Cut out the sealant all around the glass using a sealant remover.
  2. Remove the sealant by pulling it off.
  3. Remove the rear window glass.

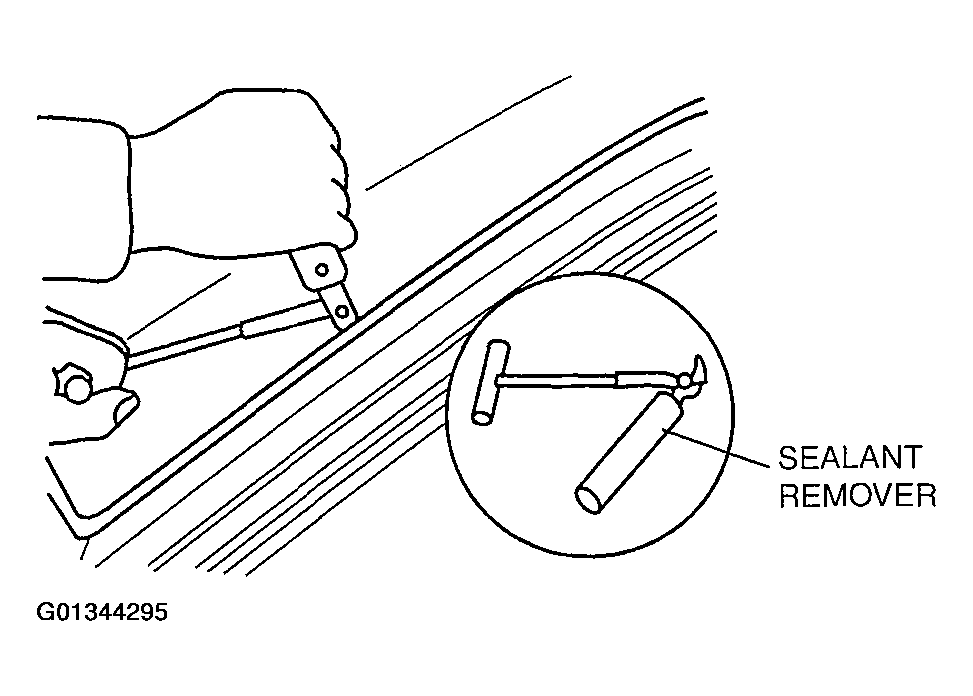

    Fig 1: Removing Rear Window Glass
    G01344295Courtesy of MAZDA MOTORS CORP.
