Assembly Note

NOTE:
  • Outer tabs of the roller assembly must face up.
  1. Install the roller assembly into the outer race with the groove facing up.

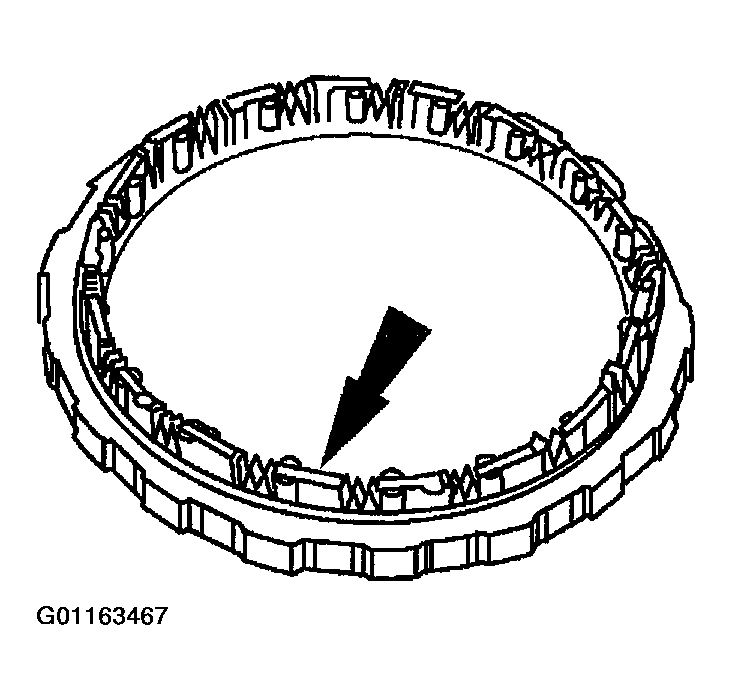

    Fig 1: Locating Roller Assembly Grooves
    G01163467
    NOTE: To aid in inner race installation, rotate the inner race clockwise during installation.
  2. Install the inner race with the grooves facing up.

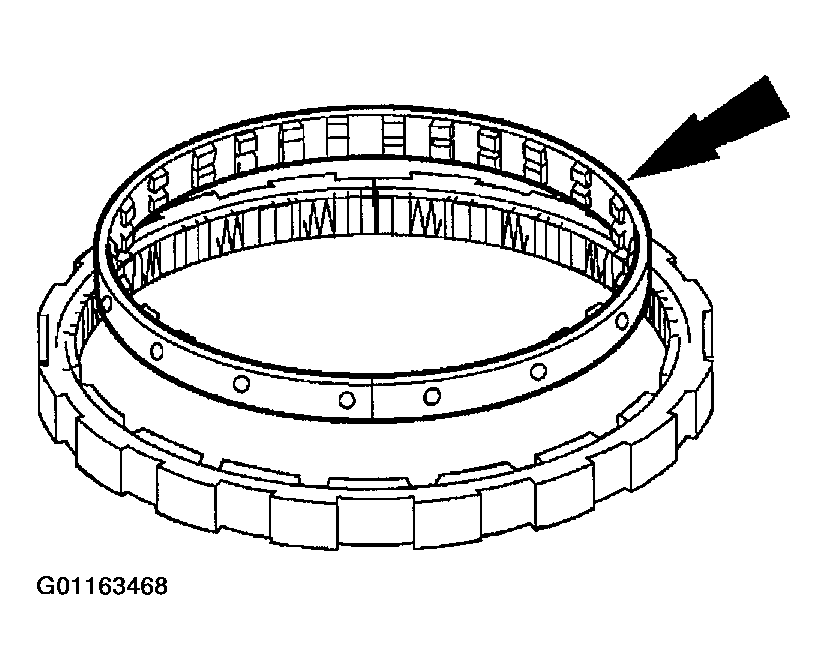

    Fig 2: Installing Inner Race
    G01163468
  3. Check the operation of the one-way clutch as follows:
    1. Hold the outer race.
    2. Rotate the inner race clockwise. It should rotate with a slight drag without attempting to rotate the outer race.
    3. Rotate the inner race counterclockwise. The inner race should rotate the outer race.

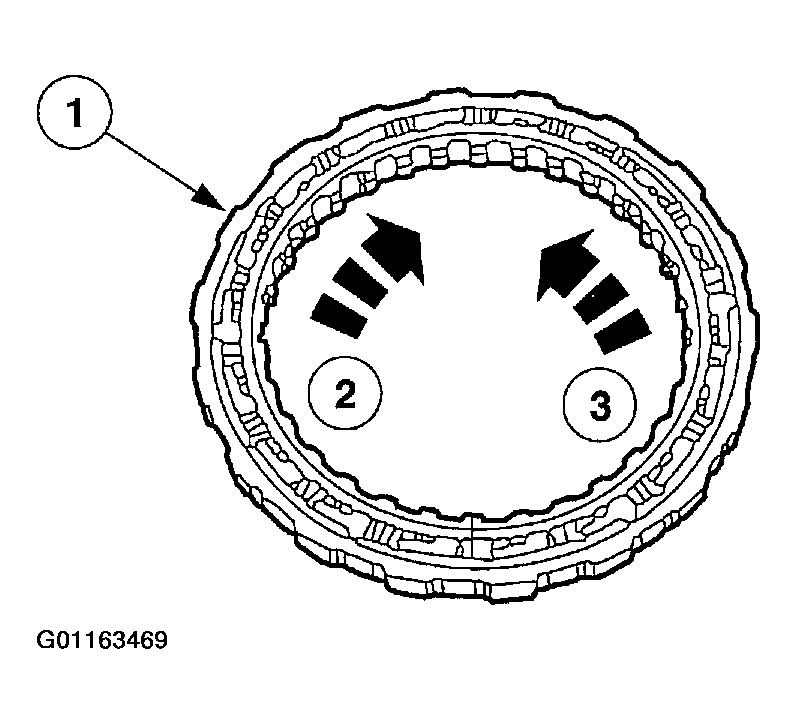

    Fig 3: Checking Operation Of The One-Way Clutch
    G01163469
