Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

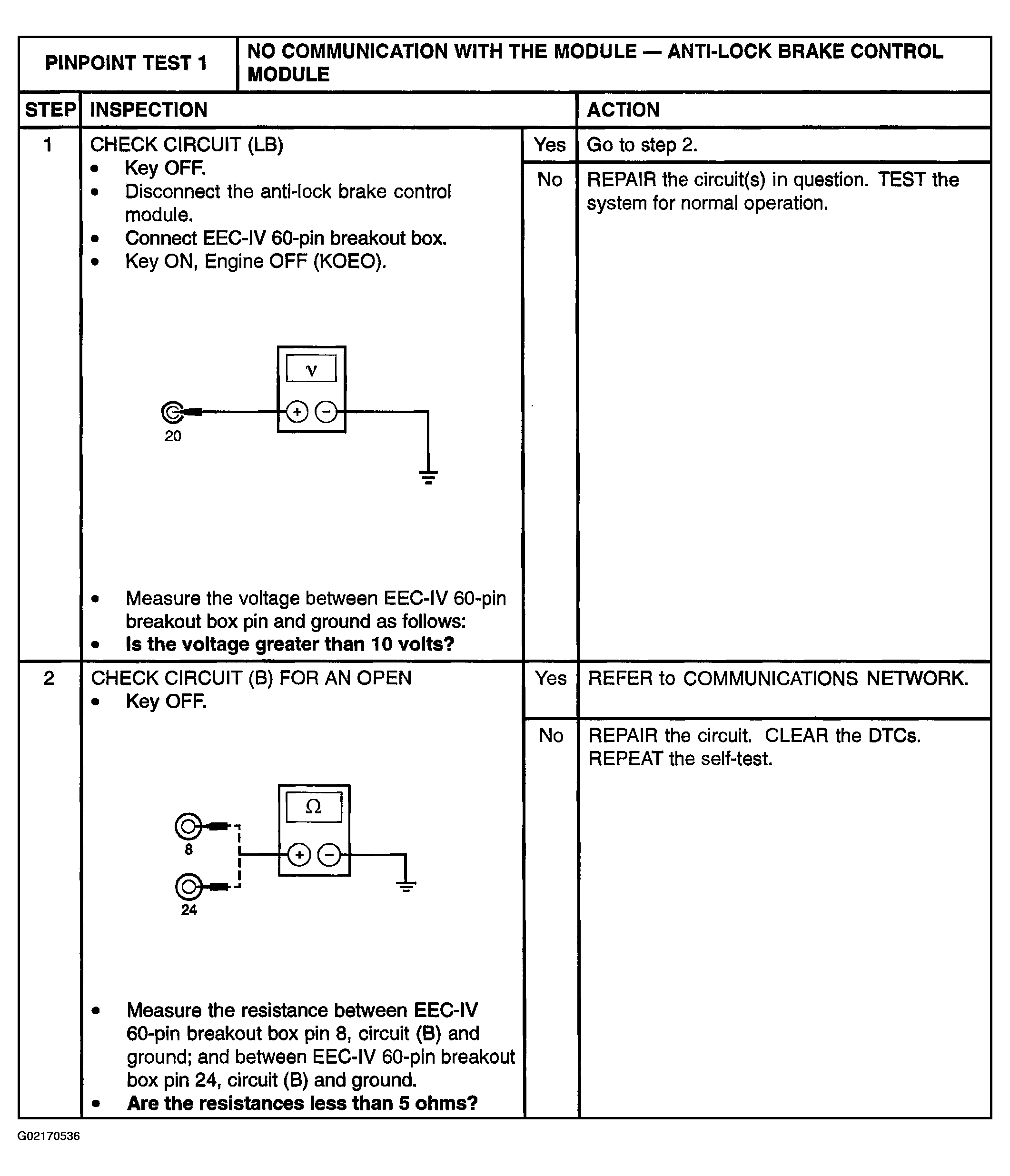

Fig 1: Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module
Fig 2: Pinpoint Test 1: EEC-1 Breakout Box Pin Number & Circuit Identification
