System Circuit Diagram/Connector Diagram

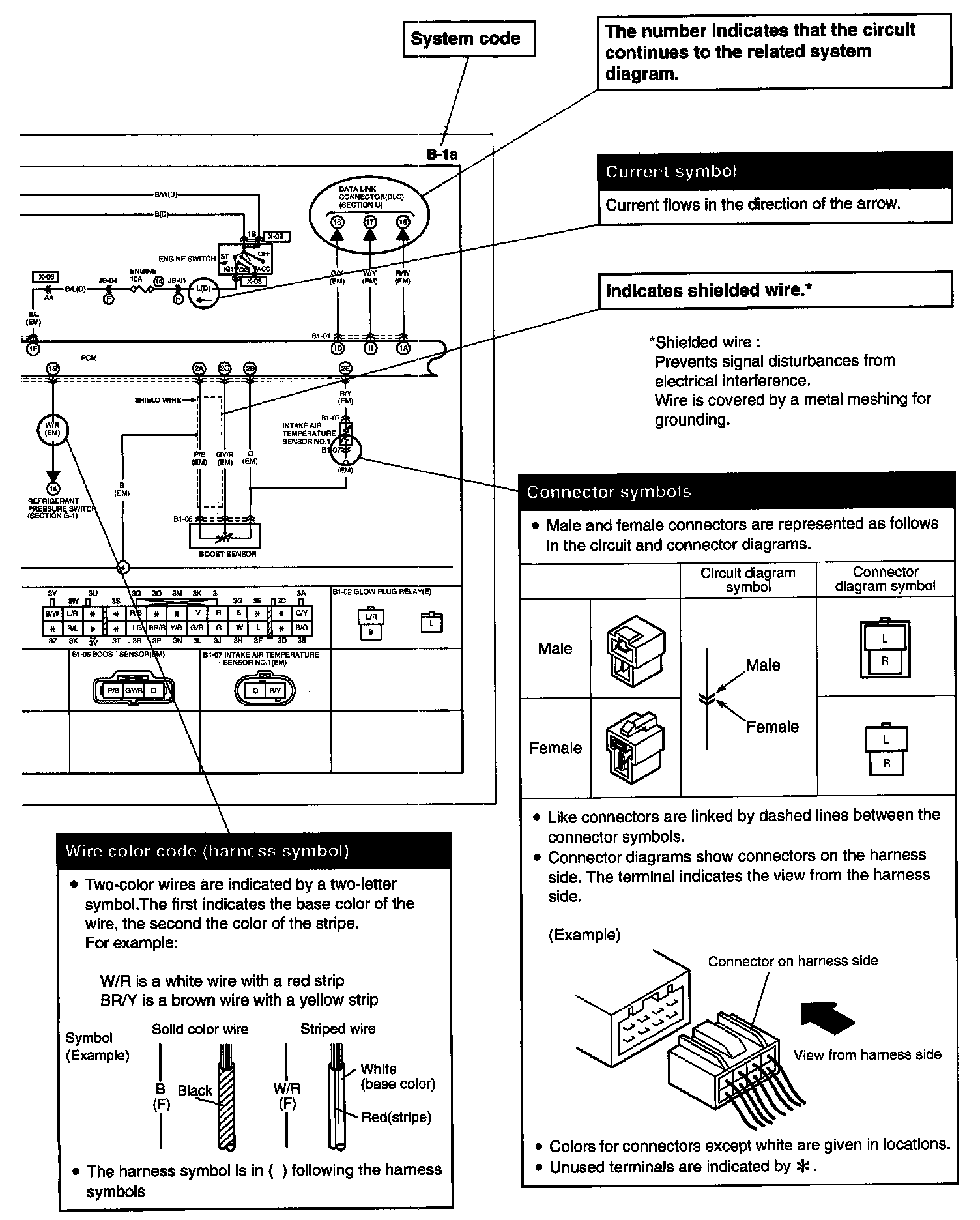

Part 1:

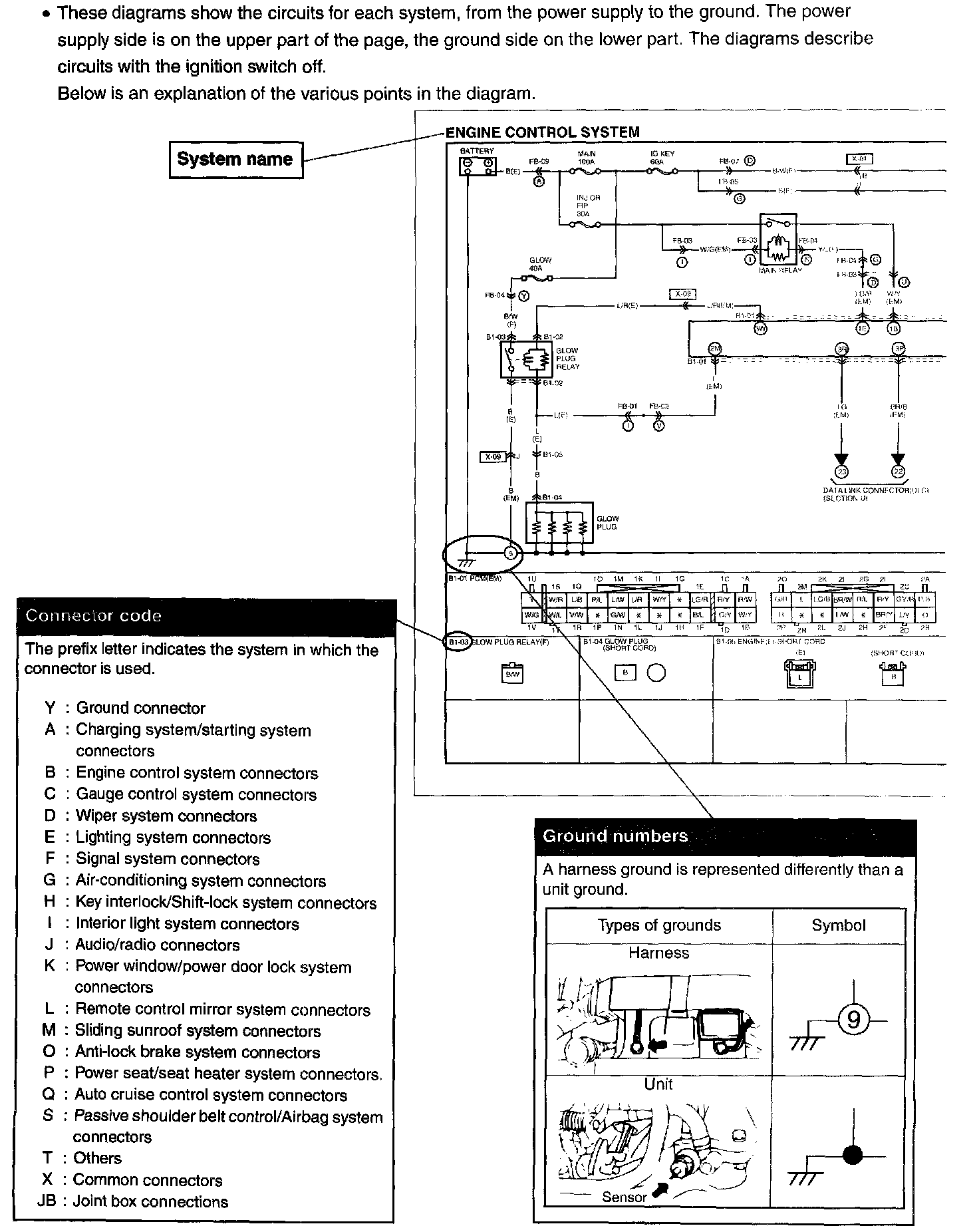

Part 2:

These diagrams show the circuits for each system, from the power supply to the ground. The power supply side is on the upper part of the page, the ground side on the lower part. The diagrams describe circuits with the ignition switch off.

The explanation of the various points in the diagram is as shown above.
