Engine Technical Data
ENGINE TECHNICAL DATA

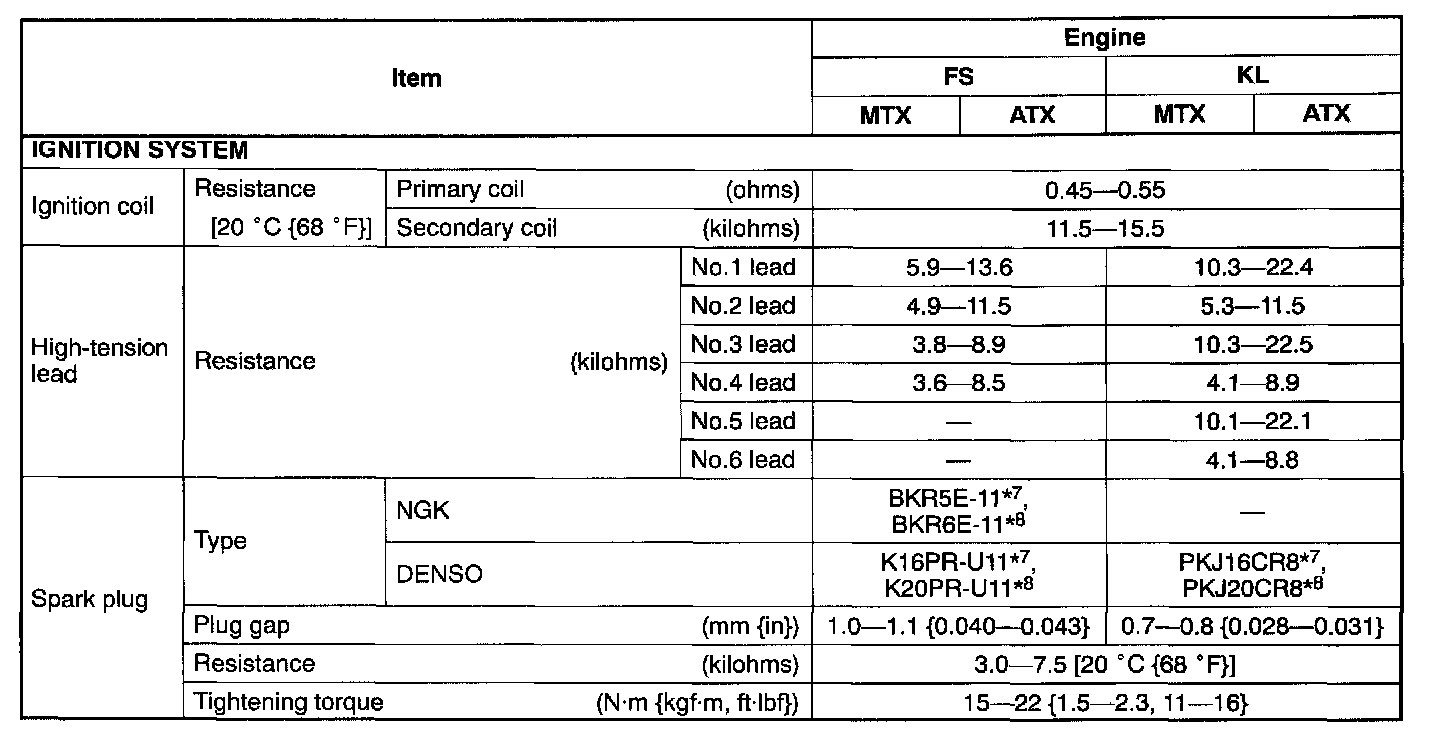

Engine Technical Data - Ignition System:
*7 : Standard plug
*8 : Cold type plug
