Pressure Spring Inspection: FS

1. Apply pressing force to the pressure spring and check the spring height. Replace the pressure spring if necessary.

Pressing force

97.7-107.4 N {9.96-10.96kgf, 21.92-24.11 lbf}

Standard height

33.50 mm {1.319 in}

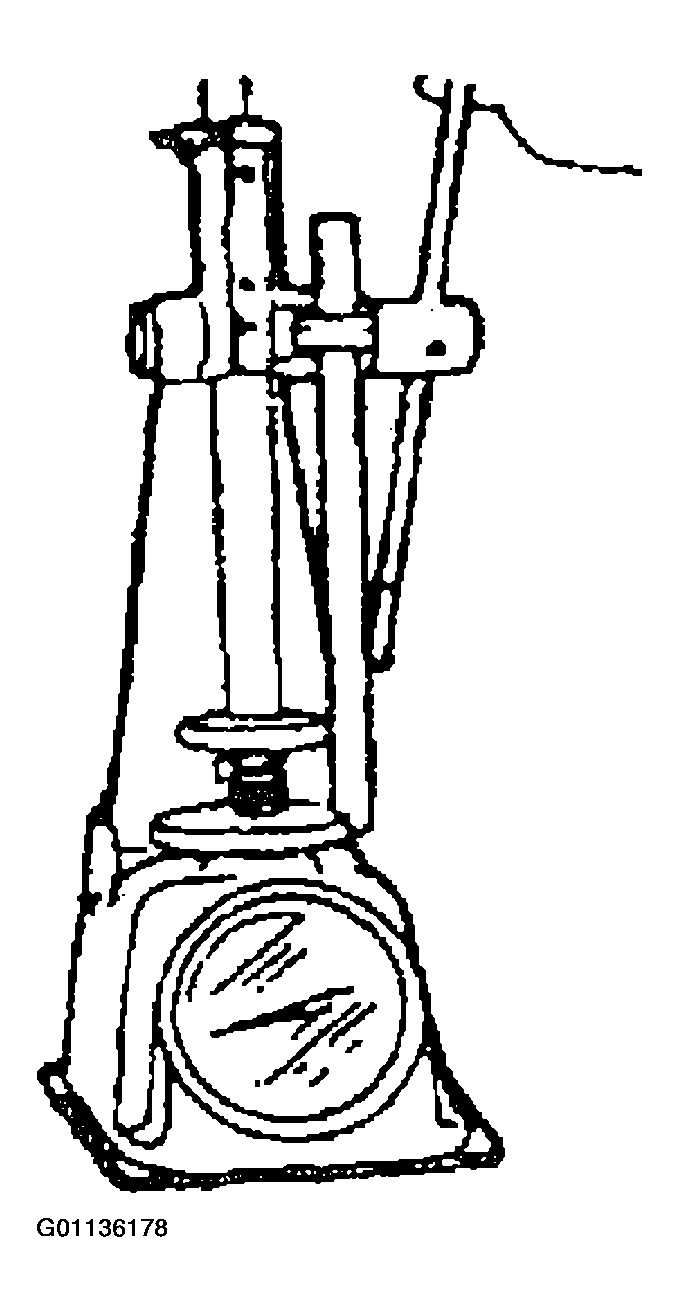

Fig 1: Measuring Pressure Spring Force & Standard Height

Courtesy of MAZDA MOTORS CORP.
