Oil Pump Removal/Installation: Notes

  1. Remove the timing belt. See TIMING BELT REPLACEMENT - 2.0L or TIMING BELT REPLACEMENT - 2.5L .
  2. Remove the timing belt pulley.
  3. Remove the oil pan. See OIL PAN REMOVAL/INSTALLATION  .
  4. Remove the A/C compressor with the pipe still connected. (FS)
  5. Remove the A/C compressor bracket.
  6. Remove the generator.
  7. Remove the transaxle. (FS MTX) See MANUAL TRANSAXLE REMOVAL/INSTALLATION .
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.

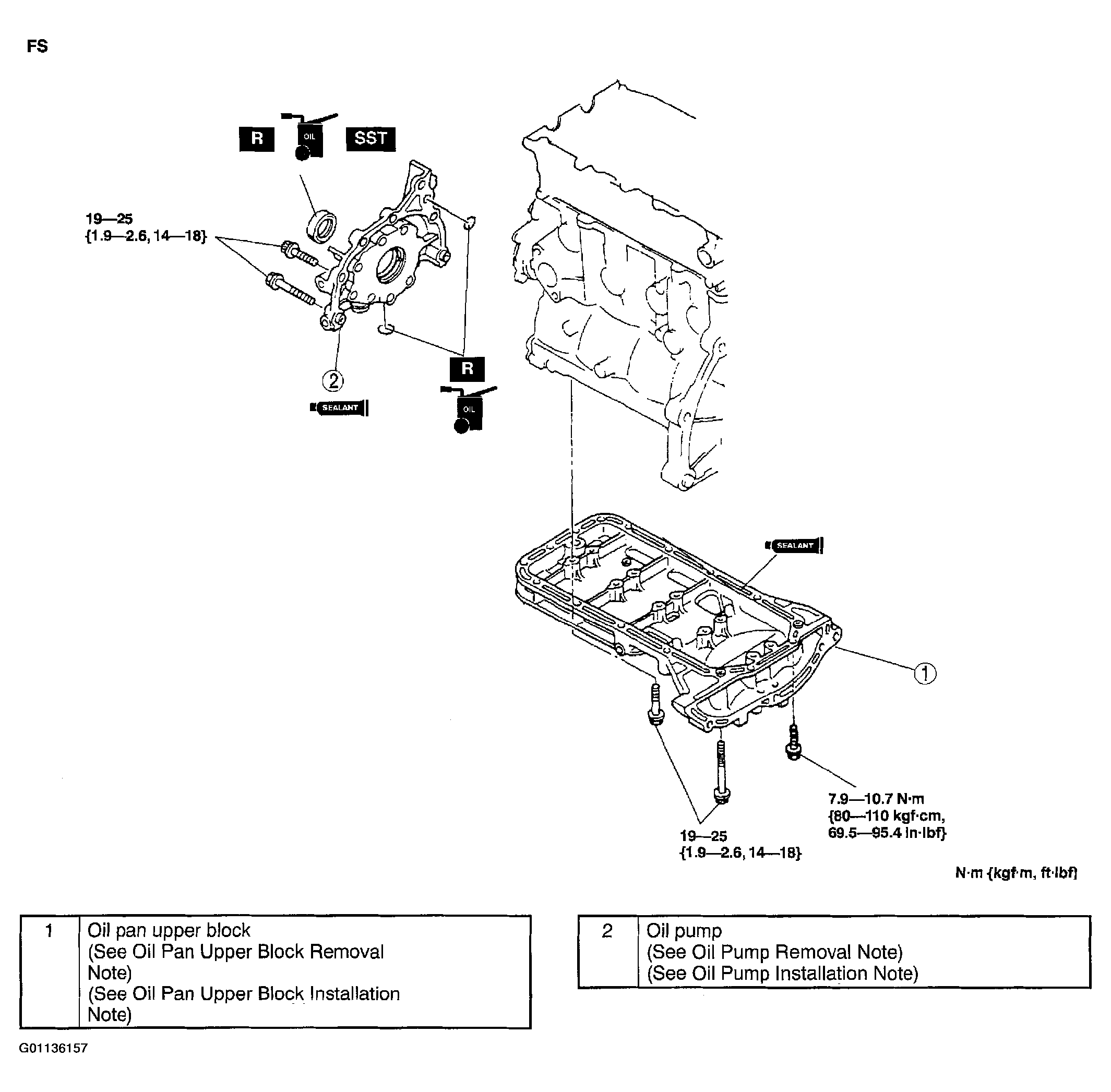

Fig 1: Identifying Oil Pump Removal/Installation (2.0L)
G01136157Courtesy of MAZDA MOTORS CORP.

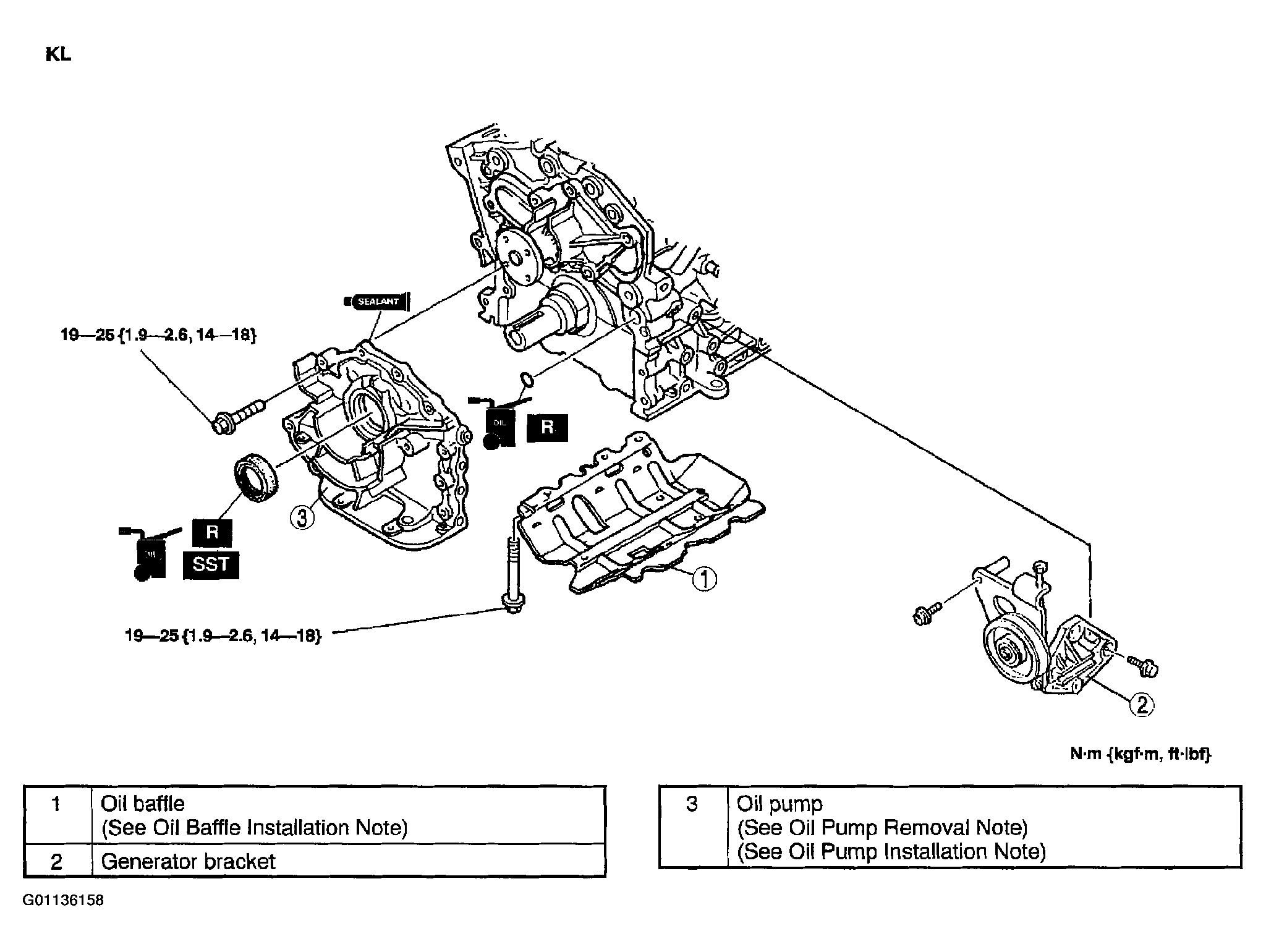

Fig 2: Identifying Oil Pump Removal/Installation (2.5L)
G01136158Courtesy of MAZDA MOTORS CORP.
