Front Power Window Regulator

  1. Remove the front door glass. See FRONT DOOR GLASS AND GUIDE  .
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the illustration.

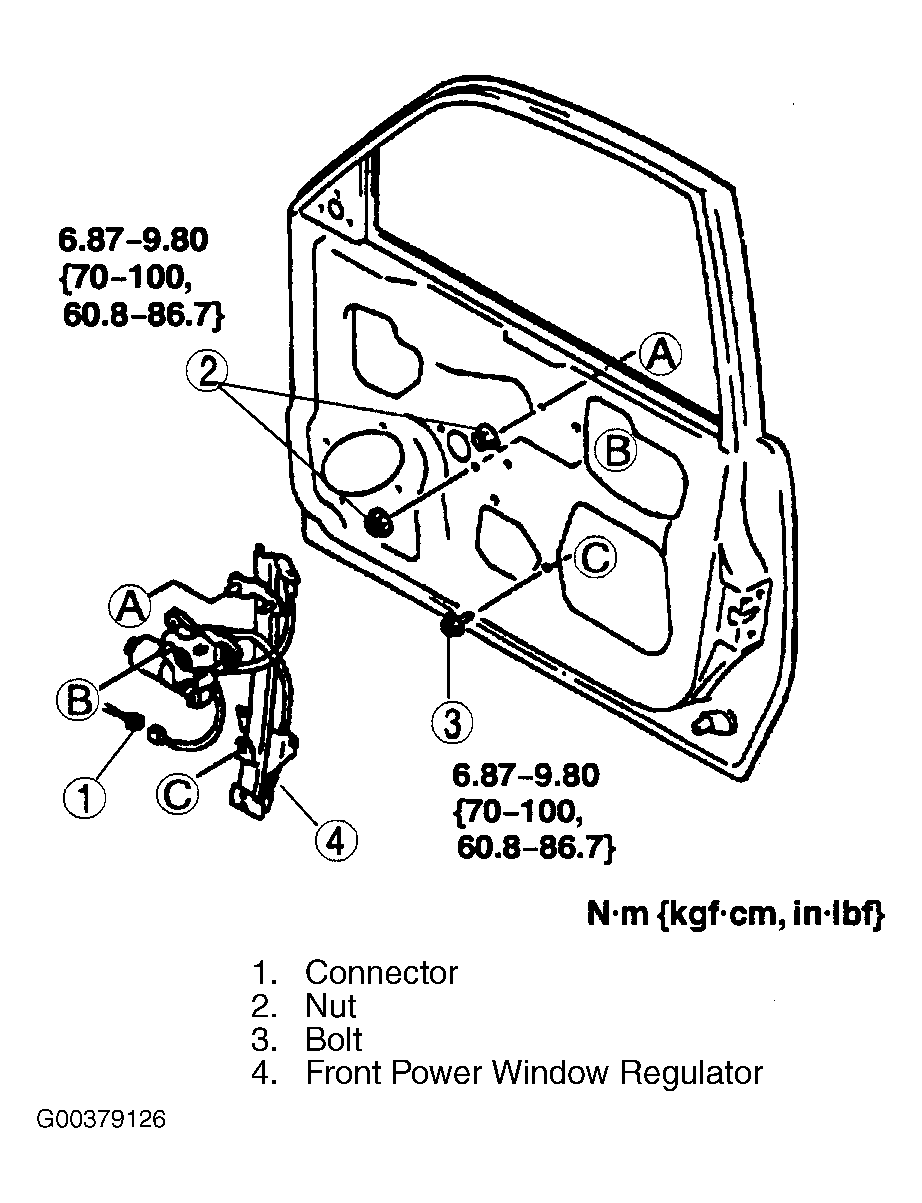

    Fig 1: Removing Front Power Window Regulator
    G00379126Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
