DTC C1095: Pump Motor Relay

Diagnostic Procedure

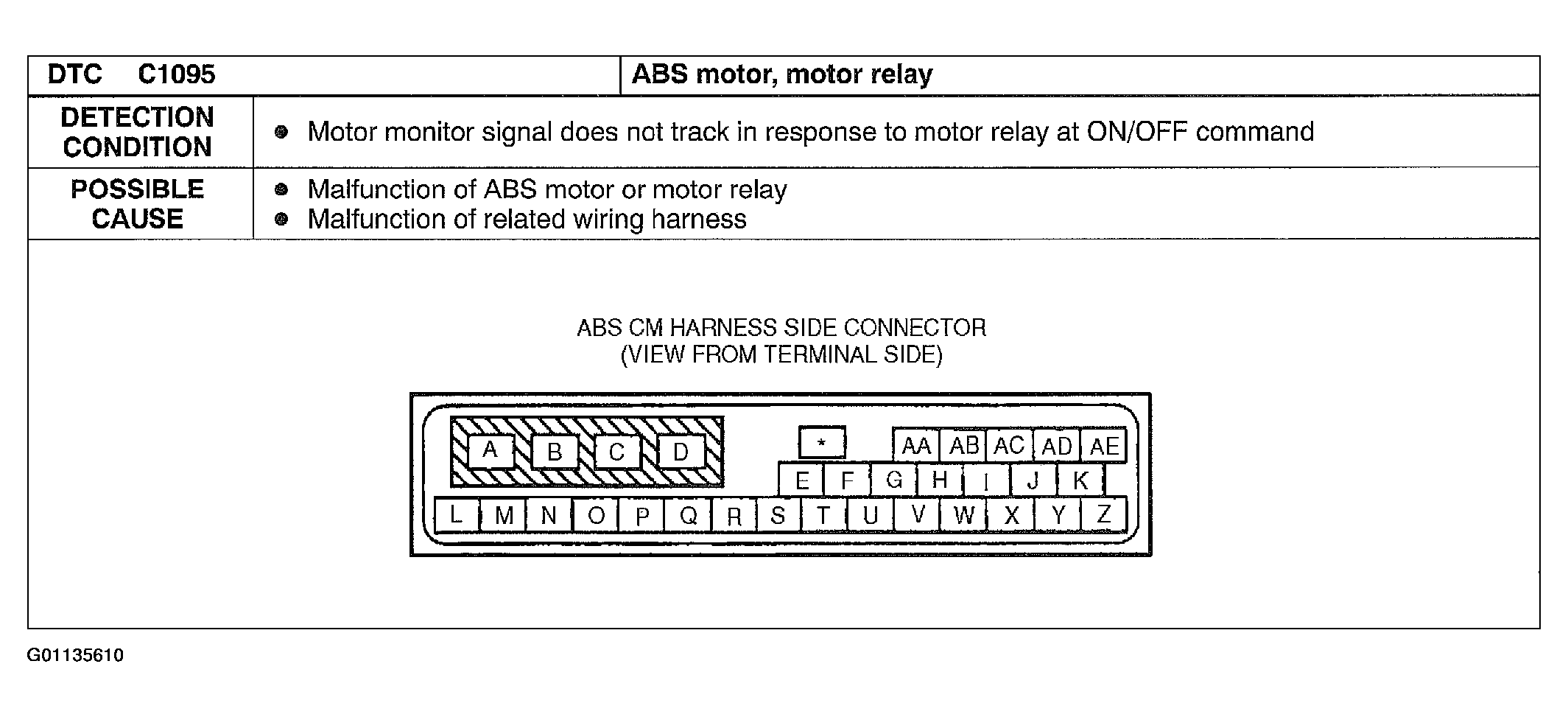

Fig 1: DTC C1095 Detection Condition & Possible Causes
G01135610Courtesy of MAZDA MOTORS CORP.

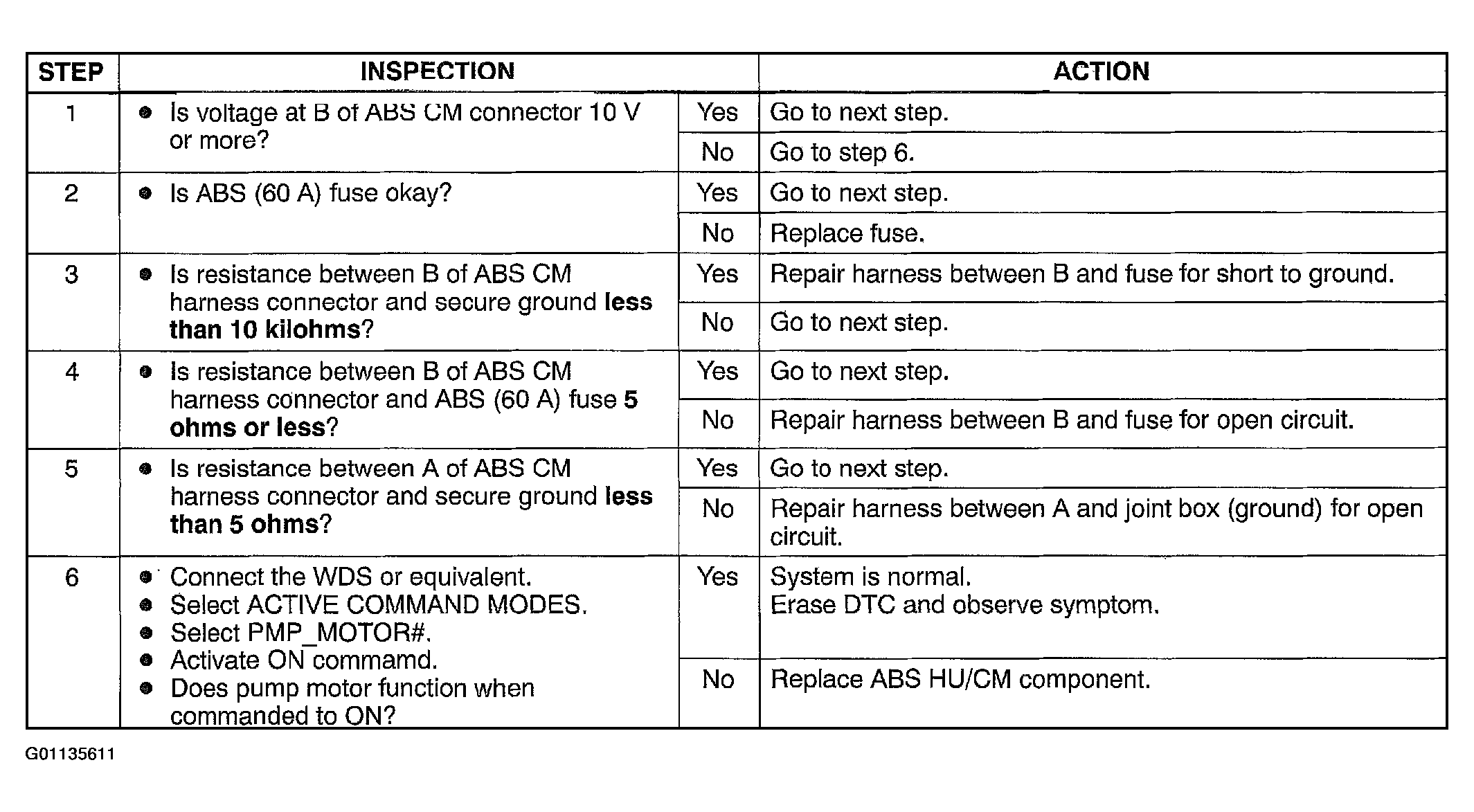

Fig 2: DTC C1095 Inspection & Action
G01135611Courtesy of MAZDA MOTORS CORP.
