DTC C1119, U2012: Torque Reduction (Engine Condition) Signal Line

Diagnostic Procedure

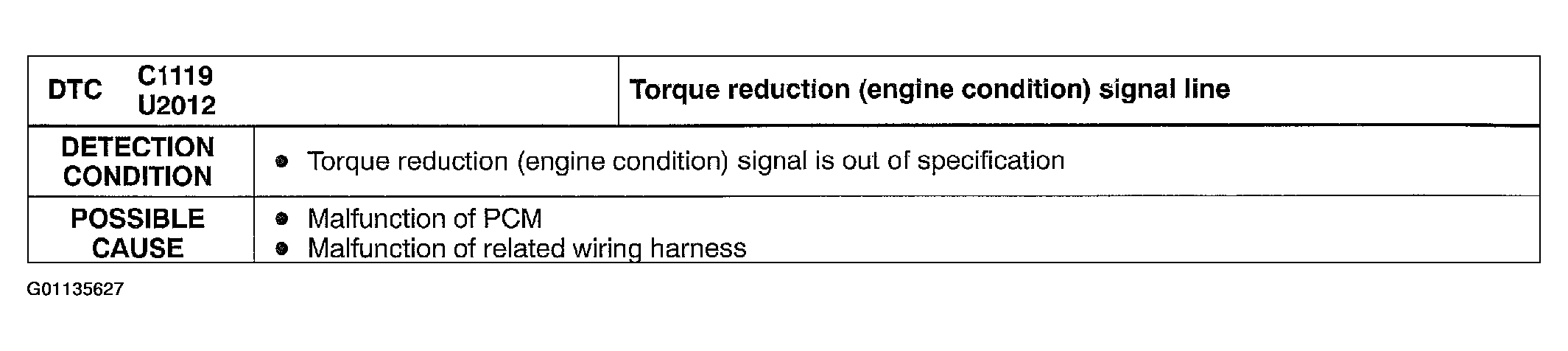

Fig 1: DTC(s) C1119, U2012 Detection Condition & Possible Causes
G01135627Courtesy of MAZDA MOTORS CORP.

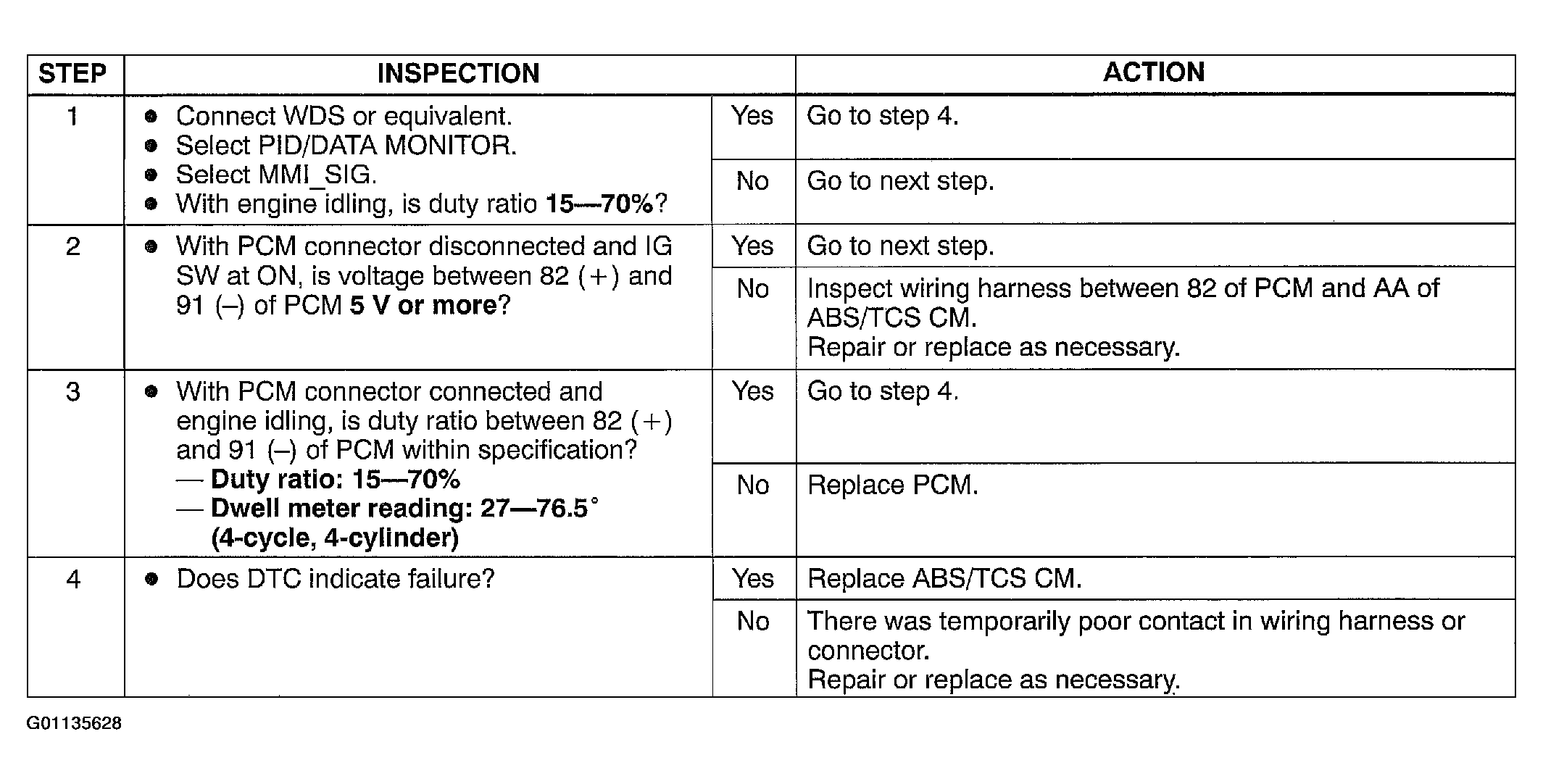

Fig 2: DTC(s) C1119, U2012 Inspection & Action
G01135628Courtesy of MAZDA MOTORS CORP.
