Transaxle Connector End View

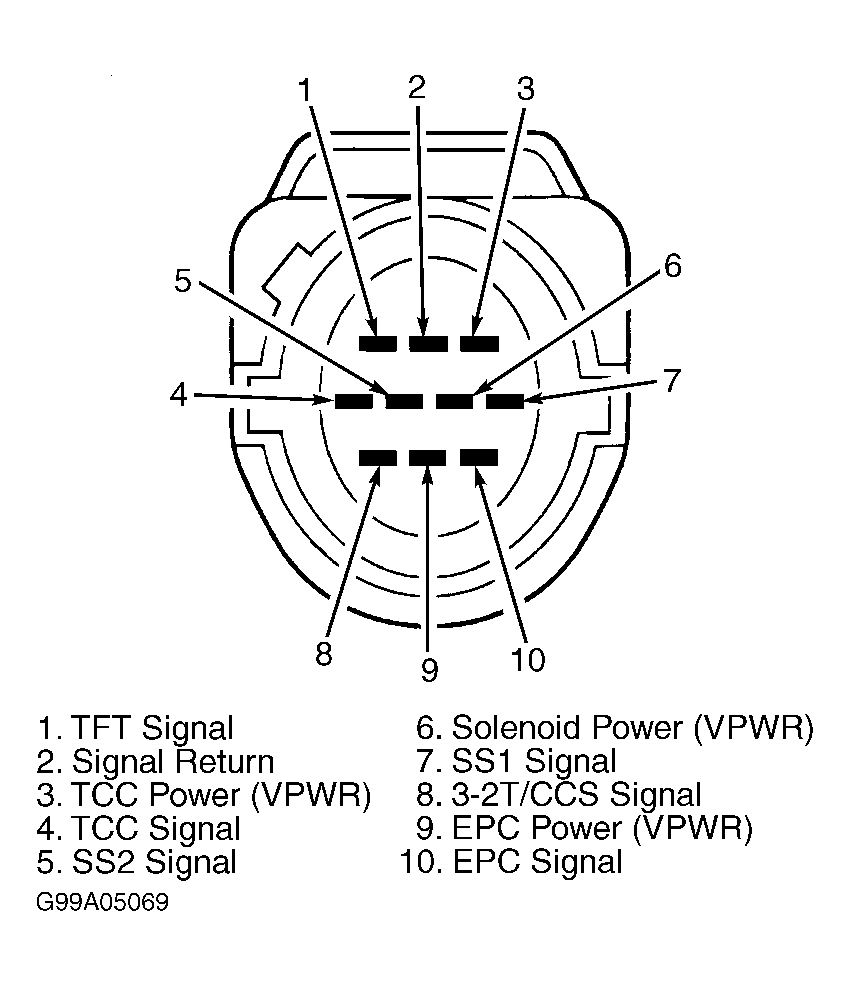

Fig 1: Transaxle Connector End View
G99A05069Courtesy of MAZDA MOTORS CORP.


Fig 1: Transaxle Connector End View
G00019927Courtesy of MAZDA MOTORS CORP.
