Control Module HVAC: Testing and Inspection

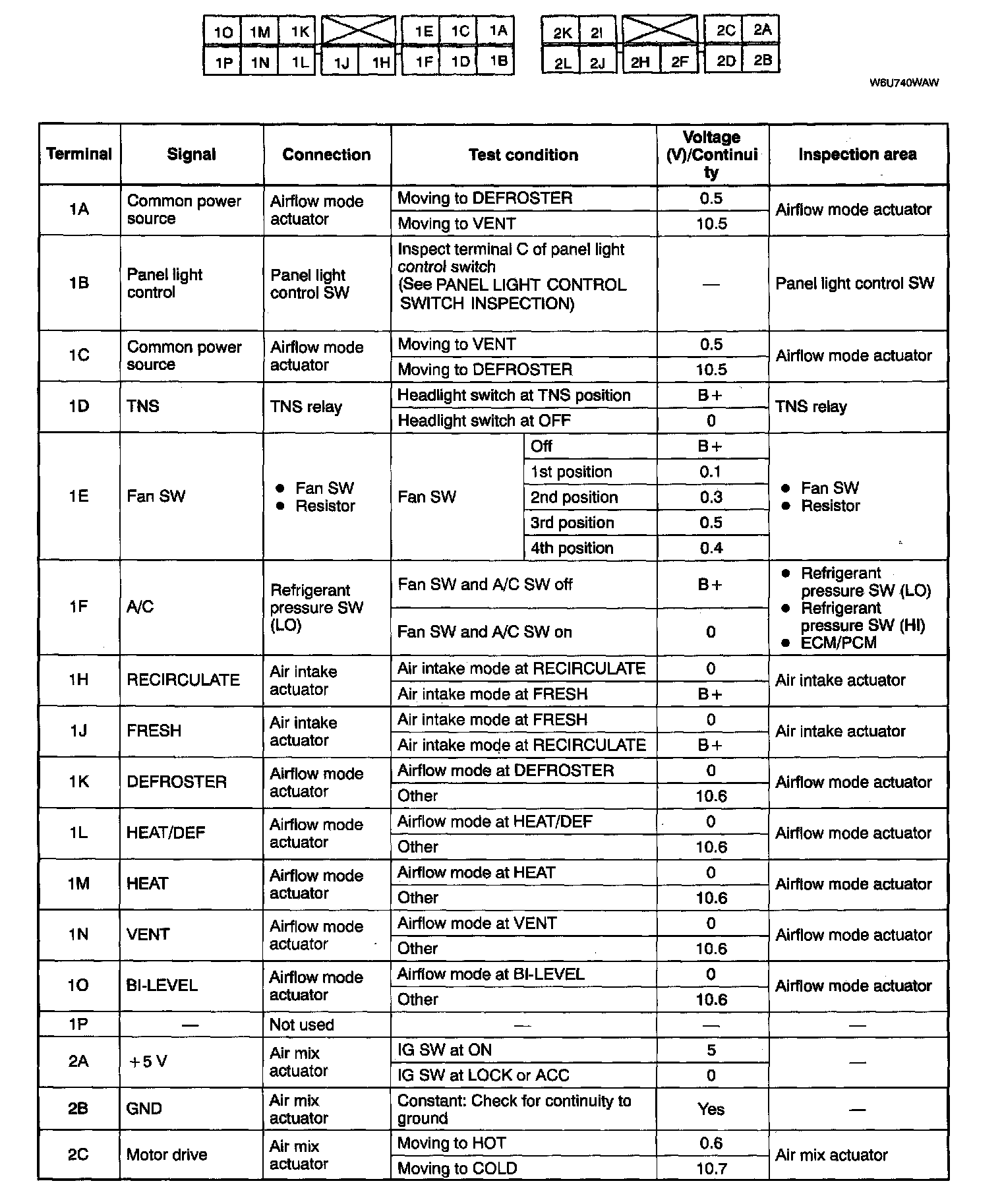

Terminal Voltage List (Reference) / Terminals (1A - 2C):

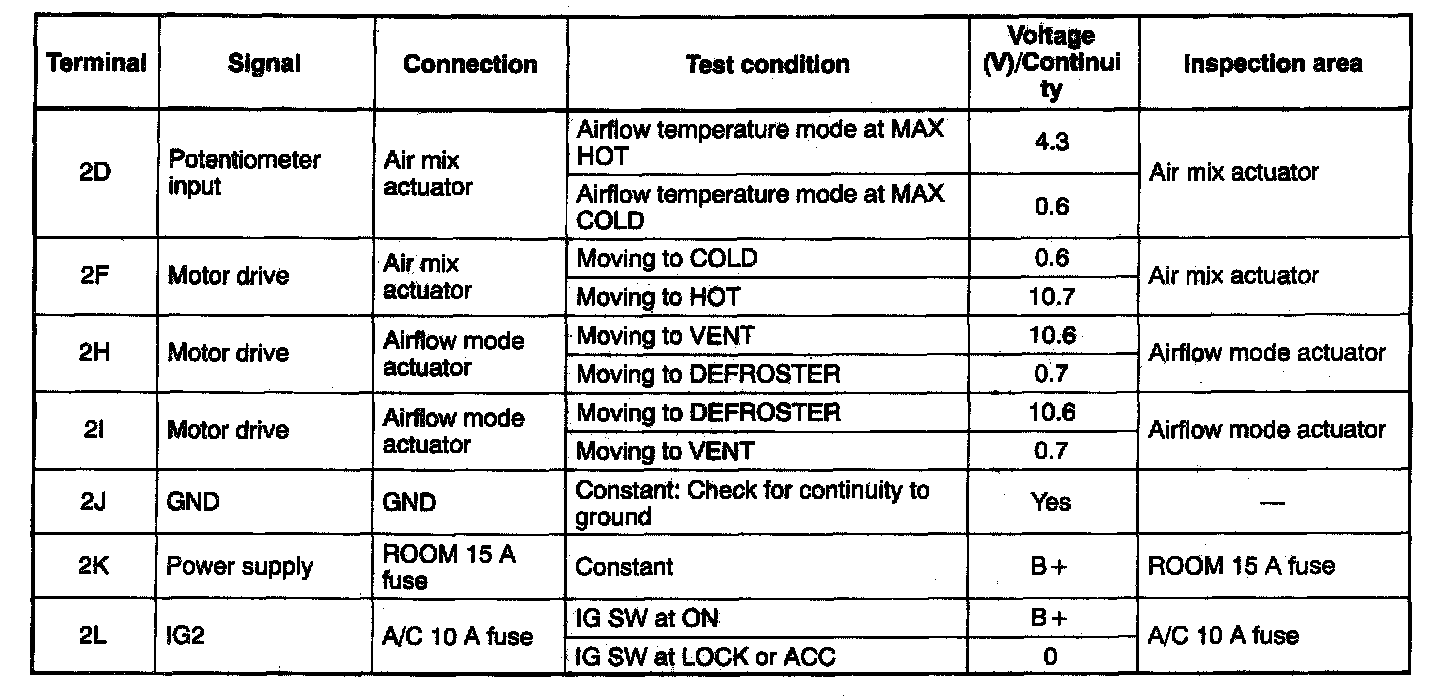

Terminal Voltage List (Reference) / Terminals (2D - 2L):
