Electronic Brake Control Module

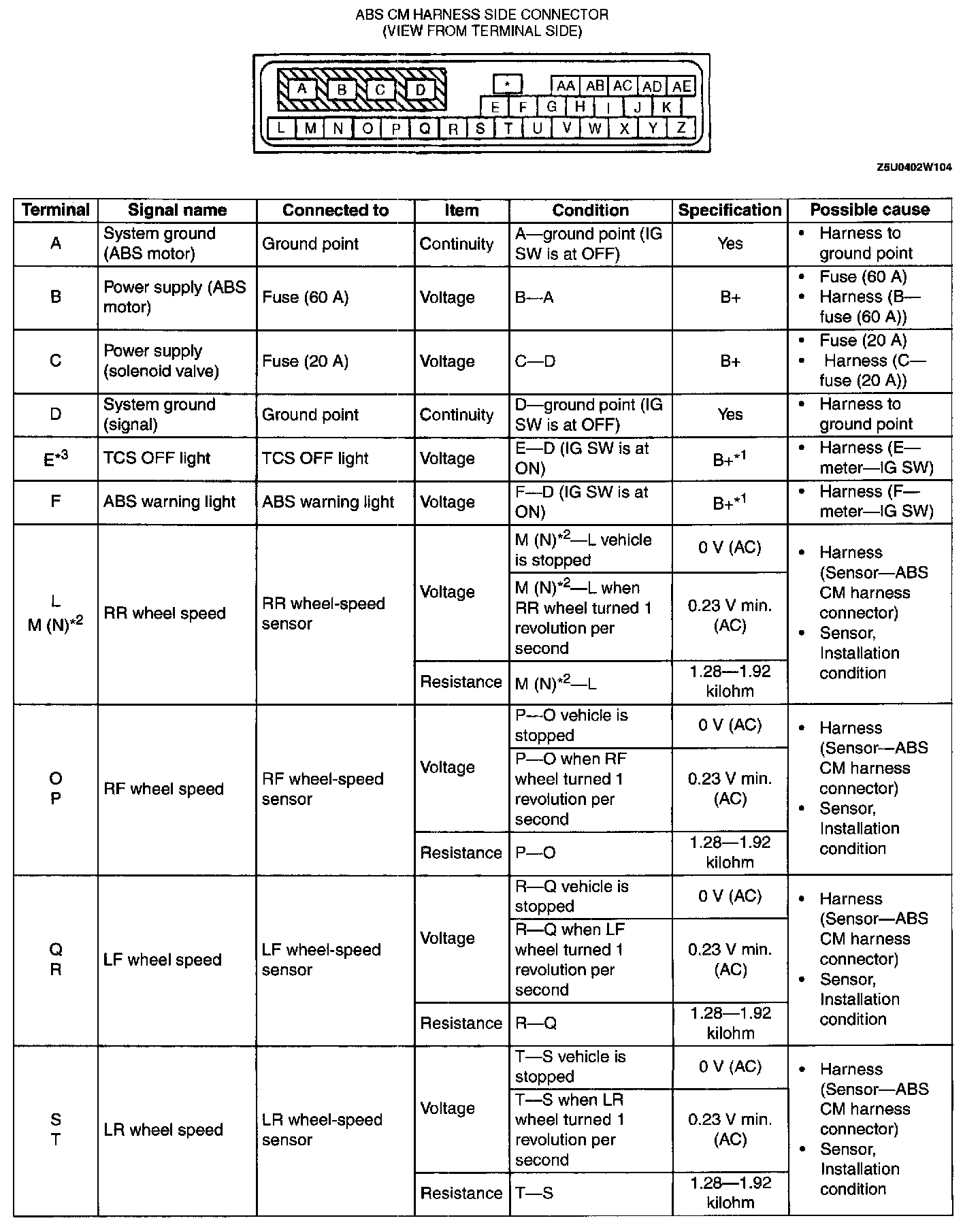

ABS Control Module Terminal Voltage Table (Reference) Part 1:

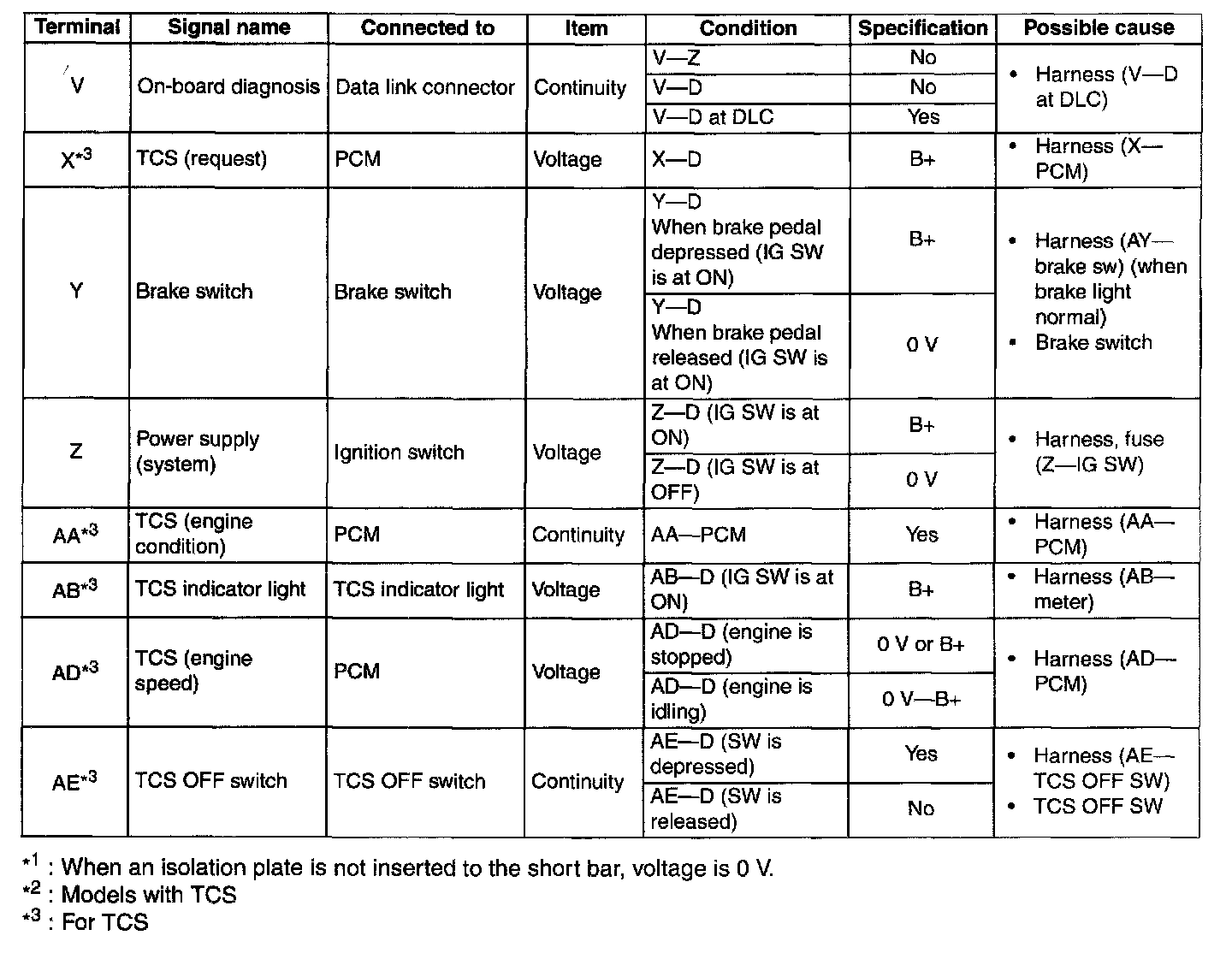

ABS Control Module Terminal Voltage Table (Reference) Part 2:
