B-2d - EC-AT Control System / Engine Control System

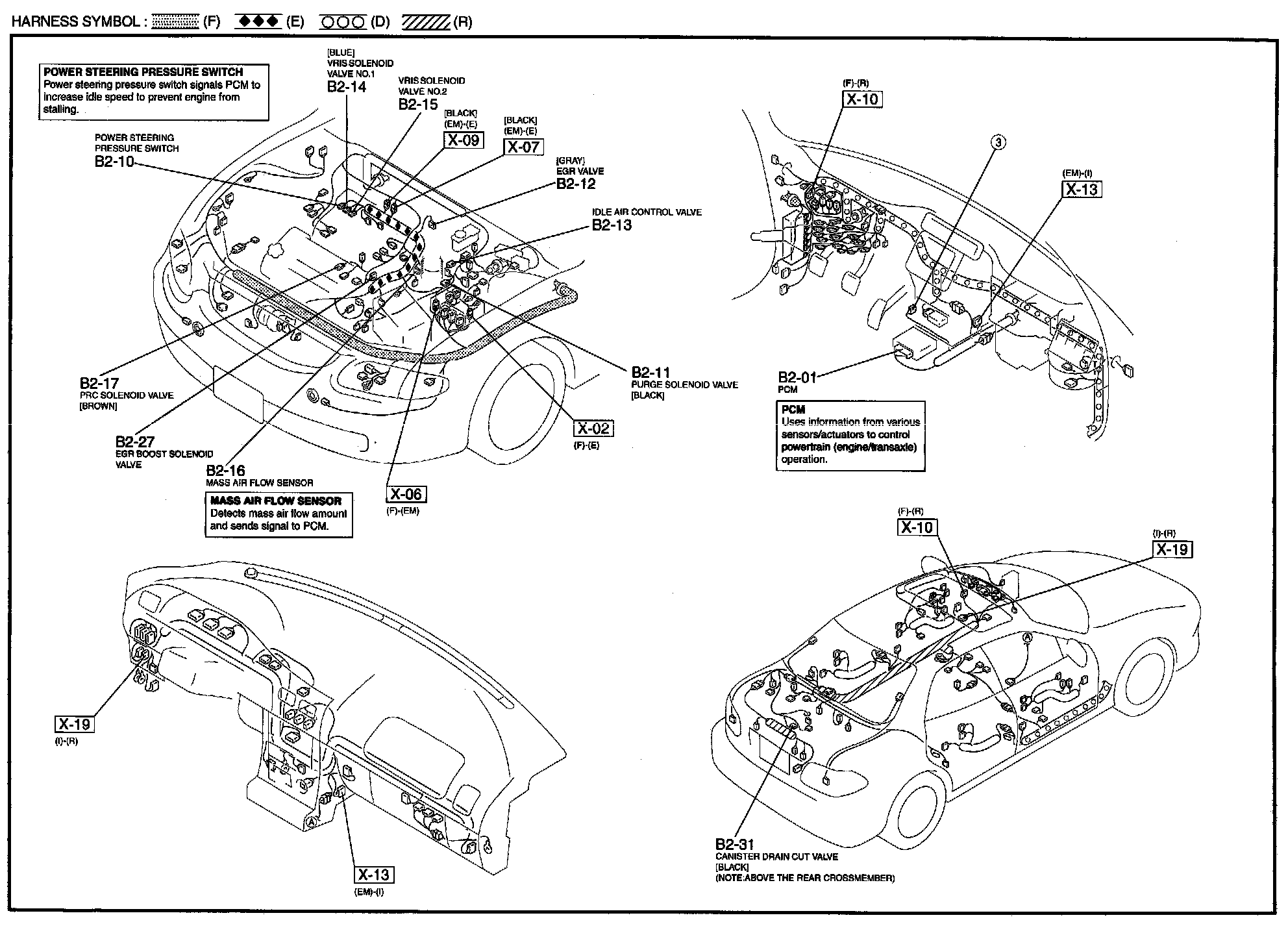

B-2d - EC-AT Control System (KL)/Engine Control System (KL) Harness/Connectors Symbols:
