Key Release Button Removal/Installation

Disconnect the negative battery cable.
Remove the ignition switch lock cylinder. See LOCK CYLINDER REMOVAL/INSTALLATION .

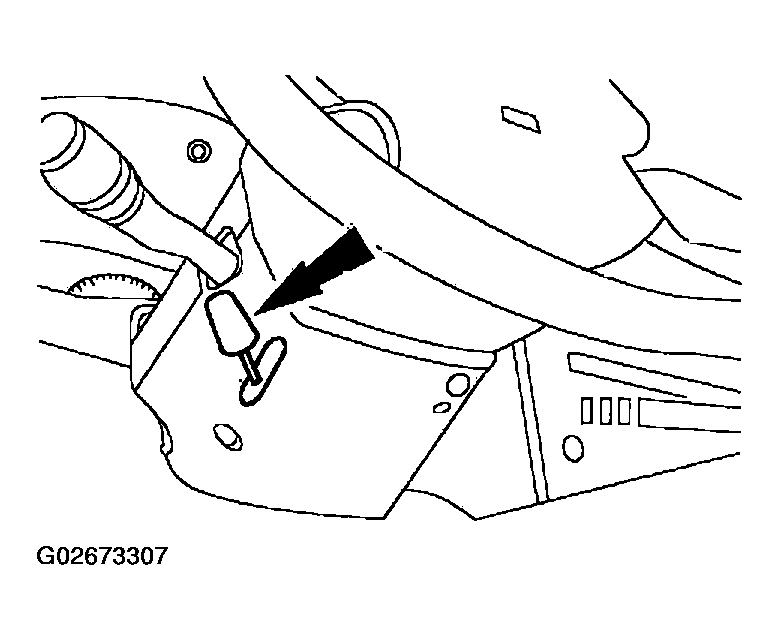

If equipped/remove the tilt wheel handle.

Fig 1: Removing Tilt Wheel Handle
Courtesy of MAZDA MOTORS CORP.

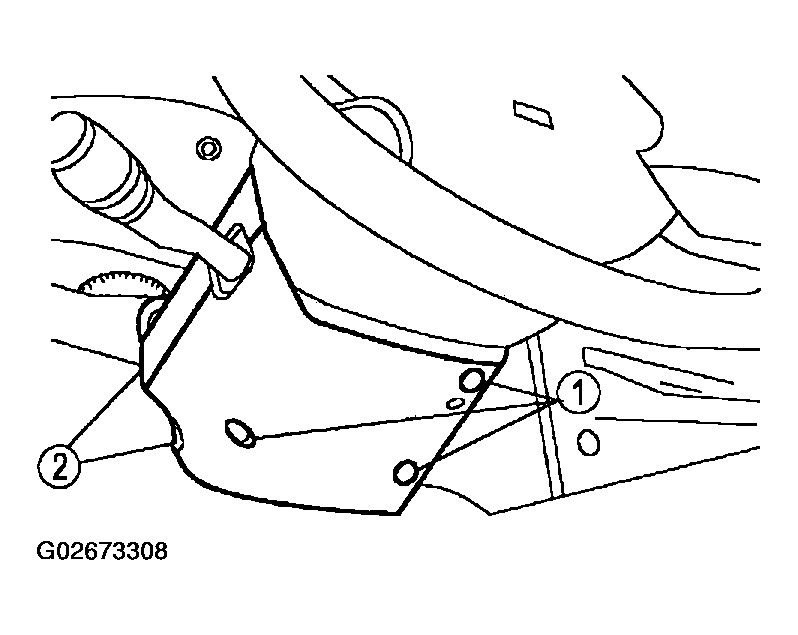

Remove the upper and lower steering column shrouds.
1. Remove screws.
2. Remove shrouds.
Fig 2: Removing Upper & Lower Steering Column Shrouds
Courtesy of MAZDA MOTORS CORP.

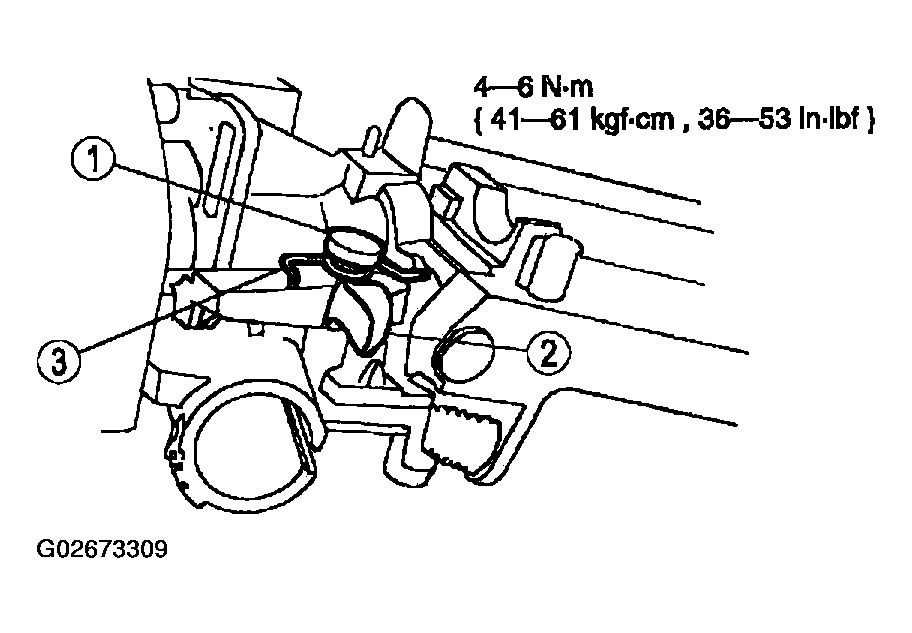

Remove the key release lever bolt (1), lever (2) and spring (3).

Fig 3: Removing Key Release Lever
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
